어제에 이은 추가 실습으로 RabbitMQ를 사용해 SAGA 패턴을 구현해보았다.

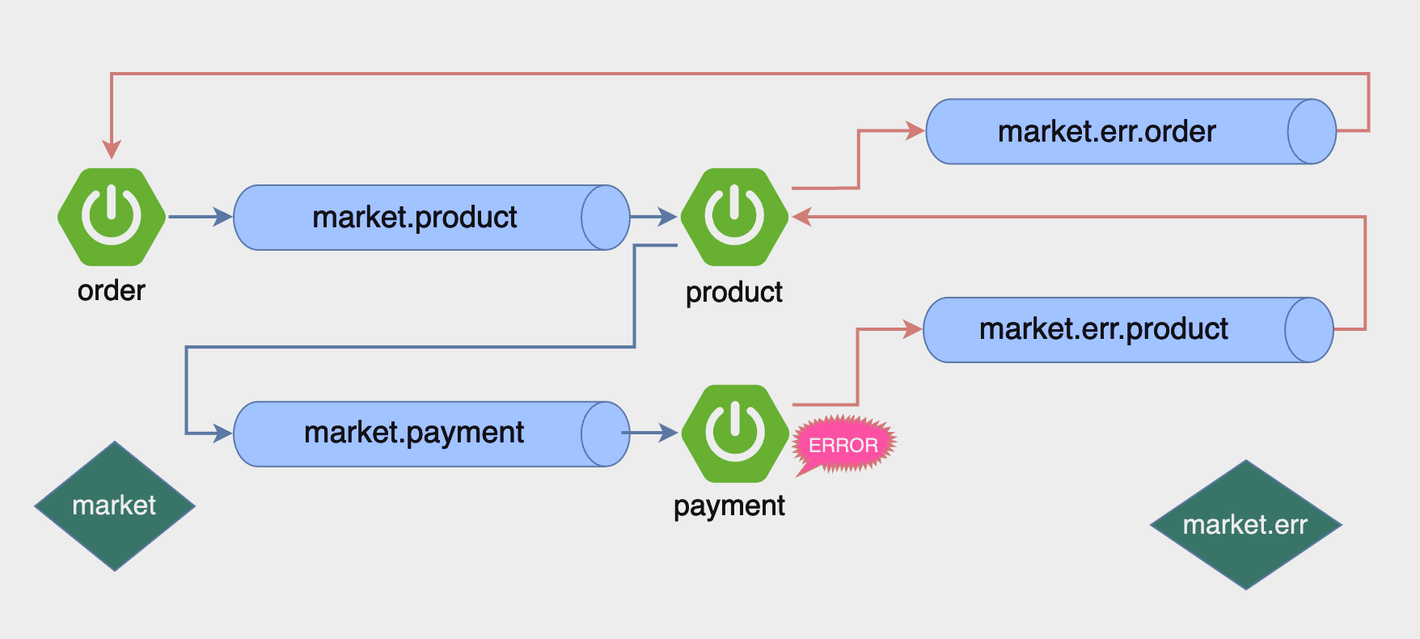

SAGA Pattern

로직 설계

Order

  • Order Application은 Producer의 입장으로서 Product Application에 메시지 큐를 통해 요청을 보낸다.

Product

  • Product Application은 Consumer의 입장으로서 Order Application으로부터 메시지 큐를 통해 요청을 받는다.

  • 동시에 Producer의 입장으로 Payment Application에 메시지 큐를 통해 요청을 보낸다.

Payment

  • Payment Application은 Consumer의 입장으로서 Product Application으로부터 메시지 큐를 통해 요청을 받는다.

에러 로직 설계

Payment

  • Payment Application에서 에러가 발생하였을 경우 Product Application에 발생한 에러 메시지와 함께 에러 메시지 큐를 통해 요청을 보낸다.

Product

  • Product Application에서 에러가 발생하였을 경우 Order Application에 발생한 에러 메시지와 함께 에러 메시지 큐를 통해 요청을 보낸다.

  • 동시에 Consumer의 입장으로서 Payment Application에서 에러가 발생한 탓에 에러 메시지 큐를 통해 받아온 요청이 있을 경우에도 Order Application에 발생한 에러 메시지와 함께 에러 메시지 큐를 통해 요청을 보낸다.

Order

  • Order Application은 Consumer의 입장으로서 Product Application으로부터 에러 메시지 큐를 통해 요청을 받는다.

구현 코드

❗ Github 링크(클릭)

OrderApplication

build.gradle > dependencies

dependencies {
	implementation 'org.springframework.boot:spring-boot-starter-amqp'
	implementation 'org.springframework.boot:spring-boot-starter-web'
	compileOnly 'org.projectlombok:lombok'
	annotationProcessor 'org.projectlombok:lombok'
	testImplementation 'org.springframework.boot:spring-boot-starter-test'
	testImplementation 'org.springframework.amqp:spring-rabbit-test'
	testRuntimeOnly 'org.junit.platform:junit-platform-launcher'
}

application.properties

spring.application.name=order

message.exchange=market
message.queue.product=market.product
message.queue.payment=market.payment

message.err.exchange=market.err
message.queue.err.order=market.err.order
message.queue.err.product=market.err.product

spring.rabbitmq.host=localhost
spring.rabbitmq.port=5672
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest

DeliveryMessage.java

import lombok.*;

import java.util.UUID;

@Data
@Builder
@ToString
@AllArgsConstructor
@NoArgsConstructor
public class DeliveryMessage {
    private UUID orderId;
    private UUID paymentId;

    private String userId;

    private Integer productId;
    private Integer productQuantity;

    private Integer payAmount;

    private String errorType;
}

Order.java

import lombok.Builder;
import lombok.Data;
import lombok.ToString;

import java.util.UUID;

@Builder
@Data
@ToString
public class Order {
    private UUID orderId;
    private String userId;
    private String orderStatus;
    private String errorType;

    public void cancelOrder(String receiveErrorType) {
        orderStatus = "CANCEL";
        errorType = receiveErrorType;
    }
}

OrderApplicationQueueConfig.java


import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.core.TopicExchange;
import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class OrderApplicationQueueConfig {

    @Bean
    public Jackson2JsonMessageConverter producerJackson2MessageConverter() {
        return new Jackson2JsonMessageConverter();
    }

    @Value("${message.exchange}")
    private String exchange;

    @Value("${message.queue.product}")
    private String queueProduct;

    @Value("${message.queue.payment}")
    private String queuePayment;

    @Value("${message.err.exchange}")
    private String exchangeErr;

    @Value("${message.queue.err.order}")
    private String queueErrOrder;

    @Value("${message.queue.err.product}")
    private String queueErrProduct;

    @Bean public TopicExchange exchange() { return new TopicExchange(exchange); }

    @Bean public Queue queueProduct() { return new Queue(queueProduct); }
    @Bean public Queue queuePayment() { return new Queue(queuePayment); }

    @Bean public Binding bindingProduct() { return BindingBuilder.bind(queueProduct()).to(exchange()).with(queueProduct); }
    @Bean public Binding bindingPayment() { return BindingBuilder.bind(queuePayment()).to(exchange()).with(queuePayment); }

    @Bean public TopicExchange exchangeErr() { return new TopicExchange(exchangeErr); }

    @Bean public Queue queueErrOrder() { return new Queue(queueErrOrder); }
    @Bean public Queue queueErrProduct() { return new Queue(queueErrProduct); }

    @Bean public Binding bindingErrOrder() { return BindingBuilder.bind(queueErrOrder()).to(exchangeErr()).with(queueErrOrder); }
    @Bean public Binding bindingErrProduct() { return BindingBuilder.bind(queueErrProduct()).to(exchangeErr()).with(queueErrProduct); }
}

OrderEndpoint.java


import lombok.Data;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;

import java.util.UUID;

@Slf4j
@RestController
@RequiredArgsConstructor
public class OrderEndpoint {

    private final OrderService orderService;

    private final RabbitTemplate rabbitTemplate;

    @GetMapping("order/{orderId}")
    public ResponseEntity<Order> getOrder(@PathVariable UUID orderId) {
        Order order = orderService.getOrder(orderId);
        return ResponseEntity.ok(order);
    }

    @PostMapping("/order")
    public ResponseEntity<Order> order(@RequestBody OrderRequestDto orderRequestDto) {
        Order order = orderService.createOrder(orderRequestDto);
        return ResponseEntity.ok(order);
    }

    @RabbitListener(queues = "${message.queue.err.order}")
    public void errOrder(DeliveryMessage message) {
        log.info("ERROR RECEIVE !!!");
        orderService.rollbackOrder(message);
    }

    @Data
    public static class OrderRequestDto {
        private String userId;
        private Integer productId;
        private Integer productQuantity;
        private Integer payAmount;

        public Order toOrder (){
            return Order.builder()
                    .orderId(UUID.randomUUID())
                    .userId(userId)
                    .orderStatus("RECEIPT")
                .build();

        }

        public DeliveryMessage toDeliveryMessage(UUID orderId){
            return DeliveryMessage.builder()
                    .orderId(orderId)
                    .productId(productId)
                    .productQuantity(productQuantity)
                    .payAmount(payAmount)
                .build();
        }
    }

}

OrderService.java

import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;

import java.util.HashMap;
import java.util.Map;
import java.util.UUID;

@Slf4j
@Service
@RequiredArgsConstructor
public class OrderService {

    @Value("${message.queue.product}")
    private String productQueue;

    private final RabbitTemplate rabbitTemplate;

    private Map<UUID, Order> orderStore = new HashMap<>();

    public Order createOrder(OrderEndpoint.OrderRequestDto orderRequestDto) {
        Order order = orderRequestDto.toOrder();
        DeliveryMessage deliveryMessage = orderRequestDto.toDeliveryMessage(order.getOrderId());

        orderStore.put(order.getOrderId(), order);

        log.info("send Message : {}",deliveryMessage.toString());

        rabbitTemplate.convertAndSend(productQueue, deliveryMessage);

        return order;

    }

    public void rollbackOrder(DeliveryMessage message) {
        Order order = orderStore.get(message.getOrderId());
        order.cancelOrder(message.getErrorType());
        log.info(order.toString());

    }

    public Order getOrder(UUID orderId) {
        return orderStore.get(orderId);
    }
}

ProductApplication

build.gradle > dependencies

dependencies {
	// Jackson 의존성
	implementation 'com.fasterxml.jackson.core:jackson-databind'
	implementation 'com.fasterxml.jackson.core:jackson-core'
	implementation 'com.fasterxml.jackson.core:jackson-annotations'

	implementation 'org.springframework.boot:spring-boot-starter-amqp'
	compileOnly 'org.projectlombok:lombok'
	annotationProcessor 'org.projectlombok:lombok'
	testImplementation 'org.springframework.boot:spring-boot-starter-test'
	testImplementation 'org.springframework.amqp:spring-rabbit-test'
	testRuntimeOnly 'org.junit.platform:junit-platform-launcher'
}

application.properties

spring.application.name=product

message.exchange=market
message.queue.product=market.product
message.queue.payment=market.payment

message.err.exchange=market.err
message.queue.err.order=market.err.order
message.queue.err.product=market.err.product

spring.rabbitmq.host=localhost
spring.rabbitmq.port=5672
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest

DeliveryMessage.java


import lombok.*;

import java.util.UUID;

@Data
@Builder
@ToString
@AllArgsConstructor
@NoArgsConstructor
public class DeliveryMessage {
    private UUID orderId;
    private UUID paymentId;

    private String userId;

    private Integer productId;
    private Integer productQuantity;

    private Integer payAmount;

    private String errorType;
}

ProductApplicationQueueConfig.java

import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class ProductApplicationQueueConfig {
    @Bean
    public Jackson2JsonMessageConverter producerJackson2MessageConverter() {
        return new Jackson2JsonMessageConverter();
    }
}

ProductEndpoint.java

import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Slf4j
@Component
@RequiredArgsConstructor
public class ProductEndpoint {

    private final ProductService productService;

    @RabbitListener(queues = "${message.queue.product}")
    public void receiveMessage(DeliveryMessage deliveryMessage) {
        productService.reduceProductAmount(deliveryMessage);

        log.info("PRODUCT RECEIVE:{}", deliveryMessage.toString());
    }

    @RabbitListener(queues="${message.queue.err.product}")
    public void receiveErrorMessage(DeliveryMessage deliveryMessage) {
        log.info("ERROR RECEIVE !!!");
        productService.rollbackProduct(deliveryMessage);
    }
}

ProductService.java

import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;
import org.springframework.util.StringUtils;

@Slf4j
@Service
@RequiredArgsConstructor
public class ProductService {

    private final RabbitTemplate rabbitTemplate;

    @Value("${message.queue.payment}")
    private String paymentQueue;

    @Value("${message.queue.err.order}")
    private String orderErrorQueue;

    public void reduceProductAmount(DeliveryMessage deliveryMessage) {

        Integer productId = deliveryMessage.getProductId();
        Integer productQuantity = deliveryMessage.getProductQuantity();

        if (productId != 1 || productQuantity > 1) {
            this.rollbackProduct(deliveryMessage);
            return;
        }

        rabbitTemplate.convertAndSend(paymentQueue,deliveryMessage);
    }

    public void rollbackProduct(DeliveryMessage deliveryMessage){
        log.info("PRODUCT ROLLBACK!!!");
        if(!StringUtils.hasText(deliveryMessage.getErrorType())){
            deliveryMessage.setErrorType("PRODUCT ERROR");
        }
        rabbitTemplate.convertAndSend(orderErrorQueue, deliveryMessage);
    }
}

PaymentApplication

build.gradle > dependencies

dependencies {
	// Jackson 의존성
	implementation 'com.fasterxml.jackson.core:jackson-databind'
	implementation 'com.fasterxml.jackson.core:jackson-core'
	implementation 'com.fasterxml.jackson.core:jackson-annotations'

	implementation 'org.springframework.boot:spring-boot-starter-amqp'
	compileOnly 'org.projectlombok:lombok'
	annotationProcessor 'org.projectlombok:lombok'
	testImplementation 'org.springframework.boot:spring-boot-starter-test'
	testImplementation 'org.springframework.amqp:spring-rabbit-test'
	testRuntimeOnly 'org.junit.platform:junit-platform-launcher'
}

application.properties

spring.application.name=payment

message.exchange=market
message.queue.product=market.product
message.queue.payment=market.payment

message.err.exchange=market.err
message.queue.err.order=market.err.order
message.queue.err.product=market.err.product

spring.rabbitmq.host=localhost
spring.rabbitmq.port=5672
spring.rabbitmq.username=guest
spring.rabbitmq.password=guest

DeliveryMessage.java

import lombok.*;

import java.util.UUID;

@Data
@Builder
@ToString
@AllArgsConstructor
@NoArgsConstructor
public class DeliveryMessage {
    private UUID orderId;
    private UUID paymentId;

    private String userId;

    private Integer productId;
    private Integer productQuantity;

    private Integer payAmount;

    private String errorType;
}

Payment.java

import lombok.Builder;
import lombok.Data;

import java.util.UUID;

@Data
@Builder
public class Payment {
    private UUID paymentId;
    private String userId;

    private String payAmount;

    private String payStatus;
}

PaymentApplicationQueueConfig.java


import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class PaymentApplicationQueueConfig {
    @Bean
    public Jackson2JsonMessageConverter producerJackson2MessageConverter() {
        return new Jackson2JsonMessageConverter();
    }
}

PaymentEndpoint.java

import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

@Slf4j
@Component
@RequiredArgsConstructor
public class PaymentEndpoint {

    private final PaymentService paymentService;

    @RabbitListener(queues = "${message.queue.payment}")
    public void receiveMessage(DeliveryMessage deliveryMessage) {
        log.info("PAYMENT RECEIVE : {}", deliveryMessage.toString());
        paymentService.createPayment(deliveryMessage);

    }
}

PaymentService.java

import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Service;

import java.util.UUID;

@Slf4j
@Service
@RequiredArgsConstructor
public class PaymentService {

    private final RabbitTemplate rabbitTemplate;

    @Value("${message.queue.err.product}")
    private String productErrorQueue;

    public void createPayment(DeliveryMessage deliveryMessage) {
        Payment payment = Payment.builder()
                .paymentId(UUID.randomUUID())
                .userId(deliveryMessage.getUserId())
                .payStatus("SUCCESS").build();

        Integer payAmount = deliveryMessage.getPayAmount();

        if (payAmount >= 10000) {
            log.error("Payment amount exceeds limit: {}", payAmount);
            payment.setPayStatus("CANCEL");
            deliveryMessage.setErrorType("PAYMENT_LIMIT_EXCEEDED");
            this.rollbackPayment(deliveryMessage);
        }
    }

    public void rollbackPayment(DeliveryMessage deliveryMessage) {
        log.info("PAYMENT ROLLBACK !!!");
        rabbitTemplate.convertAndSend(productErrorQueue, deliveryMessage);
    }
}
profile
박상훈
안녕하세요
이전 포스트

[내일배움캠프 Spring 심화] 2024.08.13 TIL

다음 포스트

[내일배움캠프 Spring 심화] 2024.08.16 TIL

0개의 댓글
