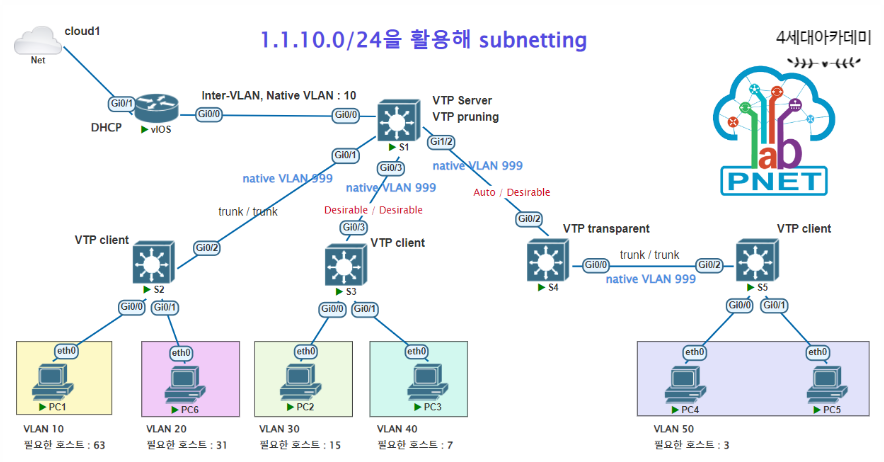

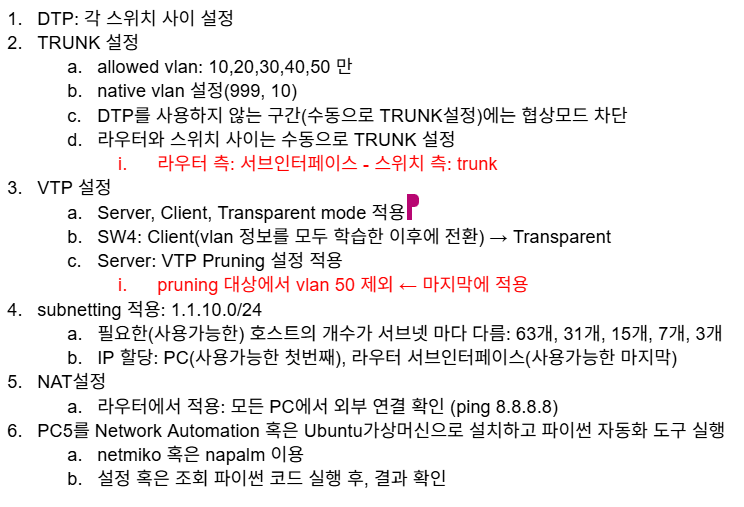

- DTP, TRUNK 설정
[ SW1 ]
int g0/2 switchport trunk encapsulation dot1q switchport mode trunk int g0/3 switchport mode dynamic desirable int g1/0 switchport mode dynamic auto
[ SW2 ]
int g0/2 switchport trunk encapsulation dot1q switchport mode trunk
[ SW3 ]
int g0/3 switchport mode dynamic desirable
[ SW4 ]
int g1/0 switchport mode dynamic desirable int g0/0 switchport trunk encapsulation dot1q switchport mode trunk
[ SW5 ]
int g0/0 switchport trunk encapsulation dot1q switchport mode trunk
- allowed vlan 설정
[ SW1 ]
int g0/1 switchport trunk allowed vlan 10,20,30,40,50 int g0/2 switchport trunk allowed vlan 10,20,30,40,50 int g0/3 switchport trunk allowed vlan 10,20,30,40,50 int g1/0 switchport trunk allowed vlan 10,20,30,40,50
[ SW2 ]
int g0/2 switchport trunk allowed vlan 10,20,30,40,50
[ SW3 ]
int g0/3 switchport trunk allowed vlan 10,20,30,40,50
[ SW4 ]
int g1/0 switchport trunk allowed vlan 10,20,30,40,50 int g0/0 switchport trunk allowed vlan 10,20,30,40,50
[ SW5 ]
int g0/0 switchport trunk allowed vlan 10,20,30,40,50
- native vlan 설정
[ SW1 ]
int g0/1 switchport trunk native vlan 10 int g0/2 switchport trunk native vlan 999 int g0/3 switchport trunk native vlan 999 int g1/0 switchport trunk native vlan 999
[ SW2 ]
int g0/2 switchport trunk native vlan 999
[ SW3 ]
int g0/3 switchport trunk native vlan 999
[ SW4 ]
int g1/0 switchport trunk native vlan 999 int g0/0 switchport trunk native vlan 999
[ SW5 ]
int g0/0 switchport trunk native vlan 999
- vtp 설정 (도메인은 임의로 설정)
[ SW1 ]
conf t vtp domain CCNA vtp mode server vtp pruning
[ SW2 ]
conf t vtp domain CCNA vtp mode client
[ SW3 ]
conf t vtp domain CCNA vtp mode client
[ SW4 ]
conf t vtp domain CCNA vtp mode transparent
[ SW5 ]
conf t vtp domain CCNA vtp mode client

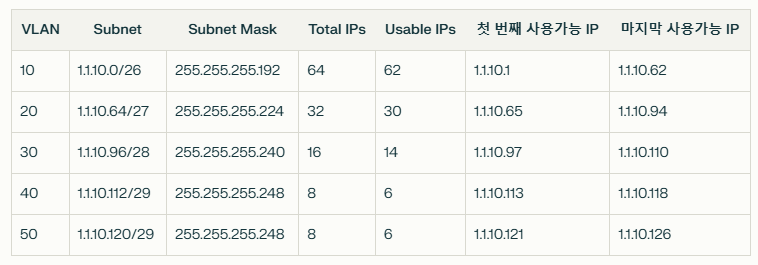

- 서브넷팅
[ IOSv1 ]
int g0/1 no sh int g0/1.10 encapsulation dot1Q 10 native ip address 1.1.10.62 255.255.255.192 int g0/1.20 encapsulation dot1Q 20 ip address 1.1.10.94 255.255.255.224 int g0/1.30 encapsulation dot1Q 30 ip address 1.1.10.110 255.255.255.240 int g0/1.40 encapsulation dot1Q 40 ip address 1.1.10.118 255.255.255.248 int g0/1.50 encapsulation dot1Q 50 ip address 1.1.10.122 255.255.255.252
- nat 설정
[ IOSv1 ]
conf t int g0/0 no sh ip add dhcp ip nat outside end conf t ip nat inside source list 1 int g0/0 access-list 1 permit any int g0/1 ip nat inside
오늘도 하나씩 해결해 나가자!
