[ML] Pipeline, Cross Validation

svenskpotatis·2023년 11월 2일

Pipeline

데이터 준비

import pandas as pd

red_url = 'https://raw.githubusercontent.com/PinkWink/ML_tutorial/master/dataset/winequality-red.csv'
white_url = 'https://raw.githubusercontent.com/PinkWink/ML_tutorial/master/dataset/winequality-white.csv'

red_wine = pd.read_csv(red_url, sep=';')
white_wine = pd.read_csv(white_url, sep=';')

red_wine['color'] = 1.
white_wine['color'] = 0.

wine = pd.concat([red_wine, white_wine])

X = wine.drop(['color'], axis=1)
y = wine['color']

pipe

from sklearn.pipeline import Pipeline
from sklearn.tree import DecisionTreeClassifier
from sklearn.preprocessing import StandardScaler

# 첫 번째 단계 StandardScaler, 두 번째 DecisionTree --> estimators
estimators = [('scaler', StandardScaler()),
              ('clf', DecisionTreeClassifier())]

pipe = Pipeline(estimators)

# 무슨 스텝으로 구성되어있는지 물어봄
pipe.steps

>>>
('scaler', StandardScaler())

pipe.set_params(clf__max_depth=2)
pipe.set_params(clf__random_state=13)

>>>
Pipeline(steps=[('scaler', StandardScaler()),
                ('clf', DecisionTreeClassifier(max_depth=2, random_state=13))])

데이터 나누기

from sklearn.model_selection import train_test_split

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=13,
                                                    stratify=y)

fit

pipe.fit(X_train, y_train)

accuracy 확인

from sklearn.metrics import  accuracy_score

y_pred_tr = pipe.predict(X_train)
y_pred_test = pipe.predict(X_test)

print('Train acc: ', accuracy_score(y_train, y_pred_tr))
print('Test acc: ', accuracy_score(y_test, y_pred_test))

Train acc: 0.9657494708485664
Test acc: 0.9576923076923077

Cross Validation

하이퍼파라미터 튜닝

교차검증

holdout

k-fold cross validation

stratified k-fold validation

교차검증 구현하기

import numpy as np
from sklearn.model_selection import KFold

X = np.array([
    [1, 2], [3, 4], [1, 2], [3, 4]
])

y = np.array([1, 2, 3, 4])

2등분

# 2등분
kf = KFold(n_splits=2)

print(kf.get_n_splits(X))

--> 2
kf: KFold(n_splits=2, random_state=None, shuffle=False)

for train_idx, test_idx in kf.split(X):
    print('train idx: ', train_idx)
    print('test idx: ', test_idx)

>>>
train idx:  [2 3]
test idx:  [0 1]
train idx:  [0 1]
test idx:  [2 3]

for train_idx, test_idx in kf.split(X):
    print('--- idx')
    print(train_idx, test_idx)
    print('--- train data')
    print(X[train_idx])
    print('--- validation data')
    print(X[test_idx])

>>>
--- idx
[2 3] [0 1]
--- train data
[[1 2]
 [3 4]]
--- validation data
[[1 2]
 [3 4]]
--- idx
[0 1] [2 3]
--- train data
[[1 2]
 [3 4]]
--- validation data
[[1 2]
 [3 4]]

KFold

from sklearn.model_selection import train_test_split
from sklearn.tree import DecisionTreeClassifier
from sklearn.metrics import accuracy_score

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=13)

wine_tree = DecisionTreeClassifier(max_depth=2, random_state=13)
wine_tree.fit(X_train, y_train)

y_pred_tr = wine_tree.predict(X_train)
y_pred_test = wine_tree.predict(X_test)

print('Train Acc : ', accuracy_score(y_train, y_pred_tr))
print('Test Acc : ', accuracy_score(y_test, y_pred_test))

Train Acc : 0.7294593034442948
Test Acc : 0.7161538461538461

KFold

# KFold
from sklearn.model_selection import KFold

kfold = KFold(n_splits=5)
wine_tree_cv = DecisionTreeClassifier(max_depth=2, random_state=13)

KFold는 index 반환함

for train_idx, test_idx in kfold.split(X):
    print(len(train_idx), len(test_idx))

각각 fold에 대한 학습 후 accuracy

# 모델 성능 각각 다름 확인
cv_accuracy = []

for train_idx, test_idx in kfold.split(X):
    X_train = X.iloc[train_idx]
    X_test = X.iloc[test_idx]

    # label
    y_train = y.iloc[train_idx]
    y_test = y.iloc[test_idx]

    wine_tree_cv.fit(X_train, y_train)
    pred = wine_tree_cv.predict(X_test)
    # print(pred)
    # print(accuracy_score(y_test, pred))
    cv_accuracy.append(accuracy_score(y_test, pred))

cv_accuracy

>>>
[0.6007692307692307,
 0.6884615384615385,
 0.7090069284064665,
 0.7628945342571208,
 0.7867590454195535]

--> validation data 에 대해 60% ~ 78% accuracy 가짐

각 acc의 분산이 크지 않다면 평균을 대표값으로

np.mean(cv_accuracy)

Stratified KFold

from sklearn.model_selection import StratifiedKFold

skfold = StratifiedKFold(n_splits=5)
wine_tree_cv = DecisionTreeClassifier(max_depth=2, random_state=13)

cv_accuracy = []

for train_idx, test_idx in skfold.split(X, y):
    X_train = X.iloc[train_idx]
    X_test = X.iloc[test_idx]

    # label
    y_train = y.iloc[train_idx]
    y_test = y.iloc[test_idx]

    wine_tree_cv.fit(X_train, y_train)
    pred = wine_tree_cv.predict(X_test)
    # print(pred)
    # print(accuracy_score(y_test, pred))
    cv_accuracy.append(accuracy_score(y_test, pred))

cv_accuracy

>>>
[0.5523076923076923,
 0.6884615384615385,
 0.7143956889915319,
 0.7321016166281755,
 0.7567359507313318]

np.mean(cv_accuracy)

--> 0.6888004974240539
--> acc의 평균이 더 나쁨

cross-validation을 보다 간편히

# max_depth=2
from sklearn.model_selection import cross_val_score

skfold = StratifiedKFold(n_splits=5)
wine_tree_cv = DecisionTreeClassifier(max_depth=2, random_state=13)

cross_val_score(wine_tree_cv, X, y, cv=skfold)

--> array([0.55230769, 0.68846154, 0.71439569, 0.73210162, 0.75673595])

# max_depth=5
from sklearn.model_selection import cross_val_score

skfold = StratifiedKFold(n_splits=5)
wine_tree_cv = DecisionTreeClassifier(max_depth=5, random_state=13)

cross_val_score(wine_tree_cv, X, y, cv=skfold)

--> array([0.50076923, 0.62615385, 0.69745958, 0.7582756 , 0.74903772])

# max_depth 지정 함수
def skfold_dt(depth):
    from sklearn.model_selection import cross_val_score

    skfold = StratifiedKFold(n_splits=5)
    wine_tree_cv = DecisionTreeClassifier(max_depth=depth, random_state=13)

    print(cross_val_score(wine_tree_cv, X, y, cv=skfold))

skfold_dt(3)

--> [0.56846154 0.68846154 0.71439569 0.73210162 0.75673595]
--> depth 높다고 무조건 acc 좋아지는 것 아님

# train score와 함께 보기
# 과적합 현상도 함께 볼 수 있음

from sklearn.model_selection import cross_validate

cross_validate(wine_tree_cv, X, y, cv=skfold, return_train_score=True)

GridSearch CV

cv: cross validation

# GridSearch: DT model의 하이퍼파라미터를 수정
from sklearn.model_selection import GridSearchCV
from sklearn.tree import DecisionTreeClassifier

params = {'max_depth': [2, 4, 7, 10]}

wine_tree = DecisionTreeClassifier(max_depth=2, random_state=13)

gridsearch = GridSearchCV(estimator=wine_tree, param_grid=params, cv=5)
gridsearch.fit(X, y)  # train, test split 알아서 해줌

>>>
GridSearchCV(cv=5,
             estimator=DecisionTreeClassifier(max_depth=2, random_state=13),
             param_grid={'max_depth': [2, 4, 7, 10]})

# 결과
import pprint

pp = pprint.PrettyPrinter(indent=4)
pp.pprint(gridsearch.cv_results_)

>>>
{   'mean_fit_time': array([0.00844555, 0.01386018, 0.02305622, 0.03067336]),
    'mean_score_time': array([0.00134435, 0.00117025, 0.00124402, 0.00116043]),
    'mean_test_score': array([0.6888005 , 0.66356523, 0.65340854, 0.64401587]),
    'param_max_depth': masked_array(data=[2, 4, 7, 10],
             mask=[False, False, False, False],
       fill_value='?',
            dtype=object),
    'params': [   {'max_depth': 2},
                  {'max_depth': 4},
                  {'max_depth': 7},
                  {'max_depth': 10}],
    'rank_test_score': array([1, 2, 3, 4], dtype=int32),
    'split0_test_score': array([0.55230769, 0.51230769, 0.50846154, 0.51615385]),
    'split1_test_score': array([0.68846154, 0.63153846, 0.60307692, 0.60076923]),
    'split2_test_score': array([0.71439569, 0.72363356, 0.68360277, 0.66743649]),
    'split3_test_score': array([0.73210162, 0.73210162, 0.73672055, 0.71054657]),
    'split4_test_score': array([0.75673595, 0.7182448 , 0.73518091, 0.72517321]),
    'std_fit_time': array([0.00077011, 0.00020966, 0.00052277, 0.00048378]),
    'std_score_time': array([1.80723460e-04, 1.15486534e-04, 1.08894762e-04, 4.04211684e-05]),
    'std_test_score': array([0.07179934, 0.08390453, 0.08727223, 0.07717557])}

--> max_depth=2인 게 1등함(rank_test_score)

# 최적 성능 가진 모델
gridsearch.best_estimator_

# %
gridsearch.best_score_

# {'max_depth': 2}
gridsearch.best_params_

# 파이프라인을 적용한 모델에 GridSearch 적용
from sklearn.pipeline import Pipeline
from sklearn.tree import DecisionTreeClassifier
from sklearn.preprocessing import StandardScaler

estimators = [('scaler', StandardScaler()), ('clf', DecisionTreeClassifier(random_state=13))]

pipe = Pipeline(estimators)

param_grid = [{'clf__max_depth': [2, 4, 7, 10]}]

GridSearch = GridSearchCV(estimator=pipe, param_grid=param_grid, cv=5)
GridSearch.fit(X, y)

param_grid = [{'clf__max_depth': [2, 4, 7, 10]}]

GridSearch = GridSearchCV(estimator=pipe, param_grid=param_grid, cv=5)
GridSearch.fit(X, y)

표로 성능 결과 정리

import pandas as pd

score_df = pd.DataFrame(GridSearch.cv_results_)
score_df[['params', 'rank_test_score', 'mean_test_score', 'std_test_score']]

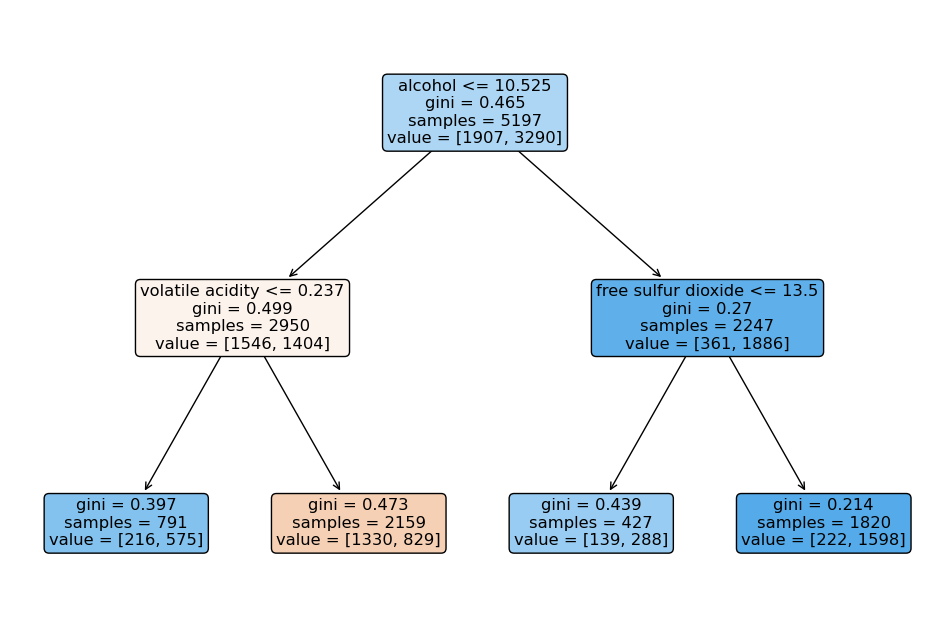

gridsearch를 plot_tree로 표현

import matplotlib.pyplot as plt
import sklearn.tree as tree

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=13)

wine_tree = DecisionTreeClassifier(max_depth=2, random_state=13)
wine_tree.fit(X_train, y_train)

plt.figure(figsize=(12, 8))
tree.plot_tree(wine_tree, feature_names=X.columns, rounded=True, filled=True);
