ARM vs x86 for Industrial SBCs: How to Choose the Right Architecture

Selecting the processor architecture for an industrial single-board computer is not only a hardware decision. It affects the entire product: power design, heat dissipation, operating system support, driver compatibility, enclosure structure, production cost, maintenance strategy, and long-term availability.

For many embedded products, the choice usually comes down to two major architecture families: ARM and x86. ARM platforms are widely used in embedded systems, HMI panels, gateways, IoT devices, smart terminals, and low-power industrial equipment. x86 platforms, mainly from Intel and AMD, are common in industrial PCs, machine vision systems, automation computers, data processing terminals, and Windows-based control systems.

Neither architecture is always better. The correct choice depends on what the product must do, how long it must operate, what software it must run, how much power it can consume, and what environment it will be installed in.

Understanding the Basic Difference

ARM processors are based on the RISC design philosophy, which means Reduced Instruction Set Computing. The idea is to use a simpler instruction set and execute tasks efficiently. This makes ARM processors well suited for low-power and thermally constrained systems. ARM SoCs often integrate CPU cores, GPU, display controller, video decoder, camera interface, NPU, Ethernet, USB, UART, I2C, SPI, and GPIO into one chip.

This high integration is one reason ARM is so common in embedded systems. A single ARM SoC can become the center of an Android SBC, Linux SBC, industrial HMI panel, smart home controller, access control terminal, or IoT gateway.

x86 processors are based on the CISC design philosophy, which means Complex Instruction Set Computing. Intel and AMD x86 processors have a long history in PCs, servers, industrial computers, and enterprise systems. Their biggest strengths are raw computing performance, mature software compatibility, broad driver support, and strong support for Windows and desktop-class Linux environments.

In industrial applications, x86 is commonly used when the system needs PC-like performance, Windows compatibility, legacy software support, large memory capacity, or high-speed data processing.

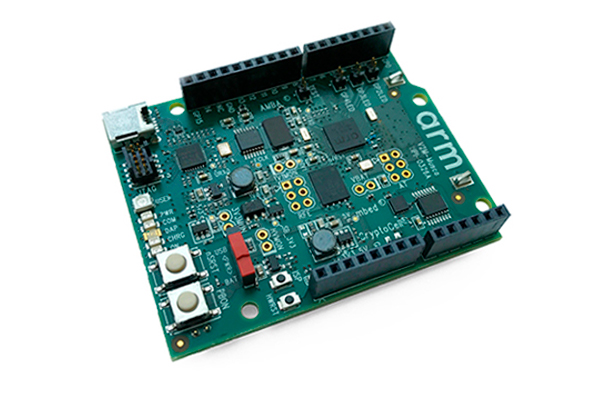

ARM in Industrial SBCs

ARM-based industrial SBCs are widely used because they are efficient, compact, and flexible. Modern ARM SoCs such as Rockchip RK3568, Rockchip RK3576, NXP i.MX8M Plus, NXP i.MX9, TI AM62x, and Qualcomm QCS platforms can support many industrial and commercial applications.

Typical ARM SBC applications include:

• Industrial HMI panels
• Android smart control panels
• Linux gateways
• IoT edge devices
• Smart building controllers
• Medical terminals
• Access control systems
• EV charger displays
• Data collection devices
• Lightweight machine interfaces
• Video doorbell terminals
• Portable instruments

The main advantage of ARM is performance per watt. Many ARM SBCs can run fanless, which is important in factories, outdoor terminals, control cabinets, medical devices, and dust-heavy environments. Without a fan, the system has fewer moving parts, less noise, lower maintenance requirements, and better reliability in harsh conditions.

ARM SoCs also usually provide rich embedded interfaces. Many platforms include display output, touch support, camera input, audio, Ethernet, USB, serial interfaces, and GPIO. This makes ARM suitable for custom embedded products where hardware integration is important.

x86 in Industrial SBCs

x86-based SBCs and industrial PCs are usually selected when performance and software compatibility are more important than low power consumption.

Typical x86 industrial applications include:

• Industrial PCs
• Machine vision systems
• AI-assisted production inspection
• SCADA terminals
• Windows-based control systems
• Data acquisition computers
• Edge servers
• Robotics control computers
• High-performance gateways
• Industrial automation workstations
• Multi-screen visualization systems

Intel Atom, Intel Core, Intel Xeon, and AMD Ryzen Embedded processors are all used in industrial computing. Embedded-grade x86 processors often provide longer availability than consumer PC parts and may support industrial temperature ranges, extended lifecycle programs, and specialized I/O options.

The biggest strength of x86 is software compatibility. If the product must run Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, legacy SCADA software, PC-based machine control software, or older industrial drivers, x86 is usually the easiest and safest choice.

x86 also has an advantage in heavy computing tasks. Machine vision, large database processing, complex analytics, virtualization, and high-performance AI workloads may require more CPU power and memory than typical ARM SBCs provide.

Power Consumption and Thermal Design

Power and heat are often the first practical differences between ARM and x86 systems.

ARM SBCs are usually better for low-power and fanless designs. Many ARM-based industrial boards can operate at relatively low power levels while still running Linux, Android, graphical interfaces, network services, and basic AI workloads. This makes ARM suitable for devices that run continuously, especially when the enclosure is compact or sealed.

For example, an ARM-based HMI panel may run a touchscreen interface, communicate with sensors or controllers, and connect to a cloud platform while staying within a manageable thermal budget. In many cases, passive cooling is enough.

x86 systems typically consume more power, especially when using Intel Core or AMD Ryzen Embedded processors. They can deliver much higher performance, but the heat must be handled properly. Some x86 systems can run fanless with careful thermal design, but high-performance models often need heat sinks, heat pipes, metal chassis conduction, or active cooling.

In industrial environments, fans can be a weakness. Dust can reduce cooling performance, vibration can shorten fan life, and noise may be unacceptable in some applications. If the product must operate for years with minimal maintenance, fanless design becomes a major advantage.

For low-load, always-on devices, ARM is usually more efficient. For high-load computing tasks, x86 may justify its higher power consumption.

Performance Requirements

Performance should be measured against the real workload, not only benchmark scores.

ARM is usually sufficient for:

• HMI user interfaces
• Data collection
• IoT gateway functions
• Protocol conversion
• Touchscreen applications
• Cloud communication
• Basic video playback
• Light edge AI
• Local logging
• Device management

Modern ARM SoCs can run Android or Linux smoothly for many embedded applications. Some platforms also include NPUs for AI inference, hardware video decoders, and GPU acceleration for graphical interfaces.

x86 is better suited for:

• High-resolution machine vision
• Multi-camera processing
• Heavy AI inference
• Real-time analytics
• Large database operations
• Complex Windows applications
• Virtual machines
• Industrial PC workloads
• Advanced visualization
• High-throughput data processing

If the application is mostly a control panel or gateway, ARM may be enough. If the system needs to process large images, run PC software, or handle intensive algorithms, x86 is often a better fit.

The practical rule is simple: choose ARM when efficiency and integration matter most; choose x86 when raw compute and compatibility matter most.

Operating System Support

Operating system requirements can quickly decide the architecture.

ARM SBCs commonly support:

• Embedded Linux
• Yocto
• Buildroot
• Debian
• Ubuntu
• Android
• RTOS on selected platforms

This flexibility is useful for embedded products. A Linux gateway can use Yocto or Buildroot for a small, controlled firmware image. An Android HMI panel can use Android for a polished touch interface. A custom industrial device can use embedded Linux with only the required services.

x86 systems commonly support:

• Windows 10 IoT Enterprise
• Windows 11 IoT Enterprise
• Standard Windows applications
• Ubuntu
• Debian
• Fedora
• Industrial Linux distributions
• Virtualization platforms

If the project depends on Windows, x86 is usually the most practical option. Many industrial software packages, configuration tools, PLC tools, SCADA systems, and older drivers are still designed for x86 Windows environments.

ARM support for Linux and Android is strong, but ARM cannot always run legacy x86 applications without compatibility layers or major software changes. If your product must support old PC-based software, x86 may reduce engineering risk.

Software Development Workflow

ARM development often requires more embedded system knowledge. Engineers may need to work with bootloaders, device trees, kernel drivers, BSP packages, cross-compilation, Yocto layers, Buildroot configurations, Android HALs, and board-specific SDKs.

This is normal in custom embedded products. ARM gives hardware teams more flexibility, but it may require deeper integration work.

x86 development is often closer to standard PC development. Developers can install Windows or Linux, use familiar tools, run existing software, connect common USB devices, and debug with desktop-style workflows. This can reduce development time when the product is close to an industrial PC.

However, x86 systems are not automatically simpler. Ruggedization, thermal design, BIOS settings, watchdog configuration, industrial I/O support, and long-term OS maintenance still require careful engineering.

Driver and Peripheral Compatibility

x86 has a strong advantage in compatibility with older industrial peripherals. Many USB devices, PCIe cards, frame grabbers, serial expansion cards, data acquisition modules, and industrial control devices were originally designed for x86 Windows or Linux systems.

If your project must integrate with legacy hardware, x86 may be the safest option.

ARM systems can support many peripherals, but driver availability depends on the SoC, kernel version, board vendor, and operating system. For standard interfaces such as UART, I2C, SPI, GPIO, Ethernet, USB, and CAN, ARM is usually strong. For specialized PCIe cards or older Windows-only devices, ARM may be difficult.

For new embedded products with custom hardware, ARM can be very flexible. For modernization projects that must work with existing factory equipment, x86 compatibility may be more valuable.

Display and HMI Applications

ARM is very strong in display-based embedded products. Many ARM SoCs are designed for touch panels, TFT LCDs, Android interfaces, and multimedia output.

ARM platforms commonly support display interfaces such as:

• MIPI DSI
• LVDS
• HDMI
• eDP
• RGB

This makes ARM suitable for industrial HMI panels, smart home panels, EV charger displays, access control terminals, and medical touch devices.

Android on ARM is especially useful when the product needs a modern touch UI, animations, WebView, video playback, and smartphone-like interaction. Linux on ARM is useful when the HMI needs custom industrial control, fast boot, and direct hardware access.

x86 can also drive displays very well, especially through HDMI, DisplayPort, eDP, or standard PC graphics outputs. It is better when the product needs multi-monitor support, PC-style visualization, high-resolution graphics, or Windows-based HMI software.

For a compact embedded HMI, ARM is often more efficient. For a large industrial visualization terminal, x86 may be more practical.

Industrial I/O and Control

Industrial SBCs often need to communicate with external machines, sensors, controllers, and networks.

Common industrial interfaces include:

• RS485
• RS232
• CAN
• Ethernet
• Modbus
• GPIO
• Digital input
• Relay output
• USB
• PCIe
• Fieldbus interfaces

ARM SBCs often expose low-level interfaces directly through board headers or custom connectors. This is useful for embedded products that need compact integration. A custom ARM board can include RS485, CAN, GPIO, isolated input, relay output, and wide-voltage power input.

x86 industrial systems often support expansion through PCIe, Mini PCIe, M.2, USB, or industrial I/O modules. This is useful when the product needs flexible expansion, legacy fieldbus cards, frame grabbers, or high-speed acquisition hardware.

For compact custom control terminals, ARM may be better. For expandable industrial PCs, x86 is usually stronger.

AI and Edge Computing

Both ARM and x86 can be used for edge AI, but they serve different levels of workload.

ARM SoCs increasingly include NPUs or AI accelerators. Rockchip RK3588, RK3576, NXP i.MX8M Plus, TI AM62A, and Qualcomm QCS platforms are examples of ARM-based platforms with edge AI capabilities. These are useful for lightweight image recognition, human detection, audio classification, simple inspection, and local inference.

ARM AI is usually best when the workload is limited and power efficiency is important.

x86 systems are better when the AI workload is heavy or when GPU acceleration is required. Industrial PCs with Intel, AMD, or discrete GPU options can handle more complex models, higher camera counts, larger datasets, and more demanding analytics.

For simple AI at the edge, ARM is attractive. For high-performance AI inspection, x86 is usually more capable.

Cost Considerations

ARM SBCs are often lower cost than x86 SBCs, especially in volume production. ARM SoCs integrate many functions into one chip, which can reduce the bill of materials. They may also reduce system cost by allowing smaller power supplies, simpler cooling, and compact PCB designs.

However, cost should not be measured only by board price.

Total cost includes:

• Hardware cost
• Power supply cost
• Cooling cost
• Enclosure cost
• Software development cost
• Driver integration cost
• Certification cost
• Maintenance cost
• Power consumption over time
• Replacement and repair cost

x86 boards may cost more, but they can reduce software migration cost if the application already exists on Windows or x86 Linux. In some projects, paying more for x86 hardware is cheaper than rewriting legacy software for ARM.

ARM usually wins when the product is designed from scratch and power efficiency matters. x86 may win when existing software and peripherals must be reused.

Lifecycle and Long-Term Supply

Industrial products often need to remain in production for many years. Lifecycle planning is therefore critical.

Many industrial ARM SoCs are designed for long availability, especially platforms from NXP, TI, and some industrial-focused Rockchip or Qualcomm product lines. ARM-based custom boards can be maintained for long periods if the SoC vendor and board supplier provide stable support.

Embedded x86 processors from Intel and AMD also offer extended availability programs, especially for industrial and embedded markets. Intel Atom, Intel Core embedded, and AMD Ryzen Embedded platforms can support long product lifecycles.

The difference is not simply ARM vs x86. The real question is whether the selected processor, memory, storage, PMIC, board design, and operating system will be supported for the required product lifetime.

For any industrial SBC, engineers should confirm:

• Processor lifecycle
• Board lifecycle
• Memory and storage availability
• Operating system support
• BSP maintenance
• Security update plan
• Replacement strategy
• Vendor support capability

A processor with strong performance but short availability may create redesign risk.

Reliability and Maintenance

Reliability is one of the main reasons industrial projects care about architecture.

ARM systems can be highly reliable because they often use fanless, low-power designs. Fewer moving parts and lower heat can improve long-term stability. ARM boards are also common in sealed devices where maintenance access is limited.

x86 systems can also be reliable, especially industrial-grade models. However, high-performance x86 systems may need stronger cooling and more power. If fans are used, maintenance becomes more important.

The operating environment matters. In dusty factories, fanless ARM may be better. In a clean control room, x86 with active cooling may be acceptable. In a vision inspection machine, x86 may be necessary despite the thermal cost.

Security and Updates

Both ARM and x86 systems need proper security design.

Security considerations include:

• Secure boot
• Signed firmware updates
• Encrypted communication
• User access control
• Debug port restriction
• OS patch management
• Firewall configuration
• Credential protection
• Remote update safety

x86 systems often benefit from mature enterprise security tools, especially when running Windows or standard Linux distributions. ARM systems can also be secure, but security depends heavily on the BSP, bootloader, kernel, update system, and vendor support.

For field-deployed products, firmware update strategy should be planned early. Android OTA, Linux A/B updates, RAUC, SWUpdate, Mender, or custom update systems may be used depending on platform.

When ARM Is the Better Choice

ARM is usually the better choice when the product needs:

• Low power consumption
• Fanless operation
• Compact board size
• Android support
• Embedded Linux support
• TFT LCD and touch integration
• Rich low-level interfaces
• Long continuous operation
• Lower hardware cost
• Custom embedded hardware
• IoT gateway functions
• Lightweight edge AI
• Industrial HMI
• Smart terminals

ARM is especially suitable for products such as smart HMI panels, EV charger displays, access control terminals, IoT gateways, medical touch devices, smart home panels, and distributed sensor systems.

When x86 Is the Better Choice

x86 is usually the better choice when the product needs:

• Windows compatibility
• Legacy PC software support
• High CPU performance
• Large memory capacity
• Machine vision
• AI inspection
• Virtualization
• Multi-display visualization
• PCIe expansion
• Industrial PC architecture
• Existing x86 driver support
• Complex data processing

x86 is especially suitable for industrial PCs, SCADA terminals, machine vision workstations, edge servers, high-performance automation computers, and systems that must run existing Windows software.

Hybrid Architecture in Industrial Systems

Many industrial systems do not rely on only one architecture. A common design is to use ARM at the edge and x86 at the core.

For example:

• ARM gateway collects sensor data from machines
• ARM HMI provides local touch control
• ARM camera module performs basic preprocessing
• x86 industrial PC performs heavy analytics
• x86 server stores data and runs visualization software
• PLC or MCU handles deterministic real-time control

This hybrid architecture can be very effective. ARM provides efficient distributed intelligence, while x86 provides centralized computing power. The result is often more scalable than forcing one architecture to do everything.

Practical Selection Checklist

Before choosing ARM or x86 for an industrial SBC, ask these questions:

• Does the product need Windows?
• Does it need legacy x86 software?
• What is the real CPU workload?
• Is fanless operation required?
• What is the maximum power budget?
• What is the enclosure size?
• What is the ambient temperature?
• Does the product need a touchscreen HMI?
• Does it need machine vision?
• Does it need AI inference?
• What industrial interfaces are required?
• Are old peripherals or drivers involved?
• How long must the product remain available?
• What operating system will be maintained?
• What is the total cost over the product lifetime?
• What support does the board supplier provide?

The answers usually make the architecture choice much clearer.

Conclusion

The choice between ARM and x86 for industrial SBCs is a system-level decision. ARM provides strong power efficiency, compact integration, fanless operation, Android and Linux flexibility, and excellent suitability for embedded HMI, gateways, and smart terminals. x86 provides higher raw performance, stronger Windows compatibility, broader legacy software support, and better fit for industrial PCs, machine vision, and compute-heavy workloads.

ARM is usually the right choice when efficiency, compact design, display integration, and long-term embedded operation are the priorities. x86 is usually the right choice when performance, Windows software, legacy compatibility, and expansion capability are more important.

There is no universal answer. The best architecture is the one that matches the product’s real requirements, operating environment, software stack, lifecycle plan, and maintenance strategy.

A successful industrial SBC design should not be based only on benchmark numbers. It should be based on power, heat, software, I/O, reliability, supply chain, and long-term serviceability. In many cases, the smartest industrial systems use both architectures together: ARM for efficient edge devices and x86 for high-performance control, analytics, and visualization.
