수업 정리 　

강의 목록

[DL Basic] Convolution은 무엇인가?

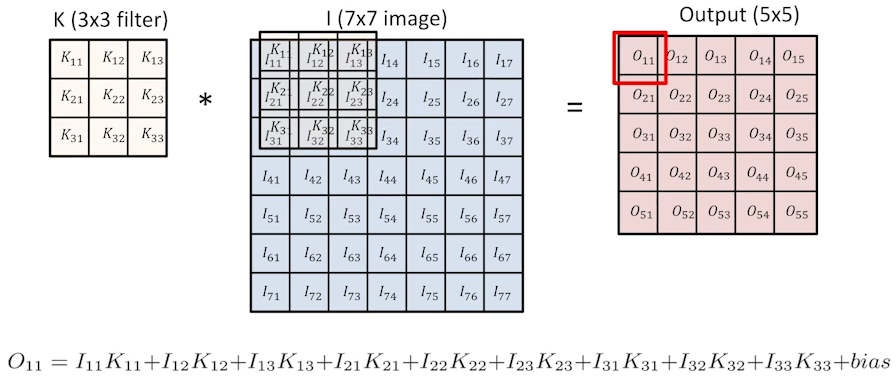

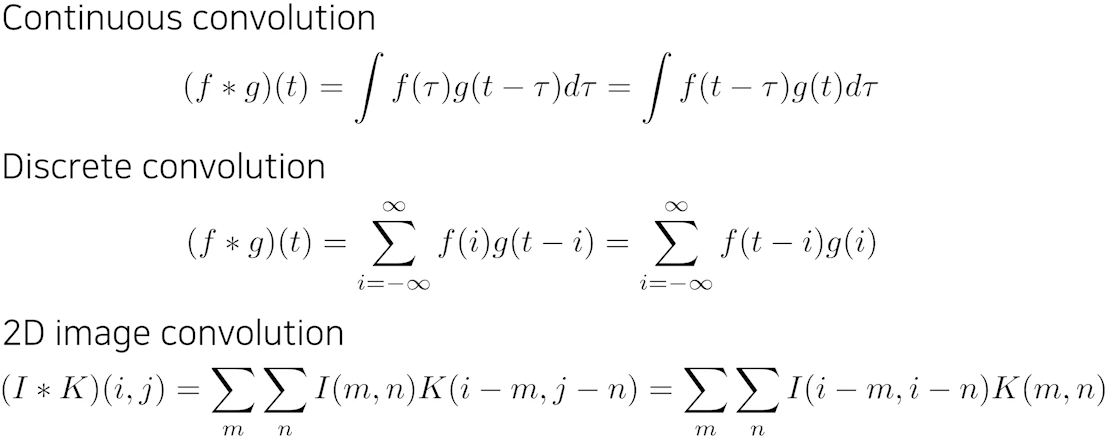

• Convolution

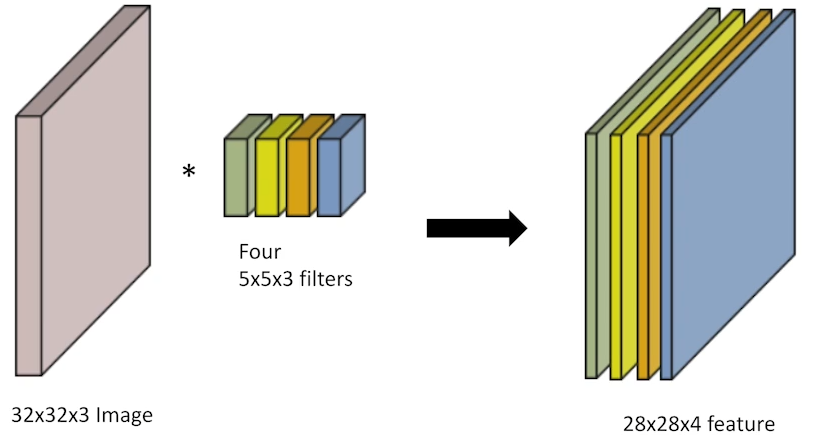

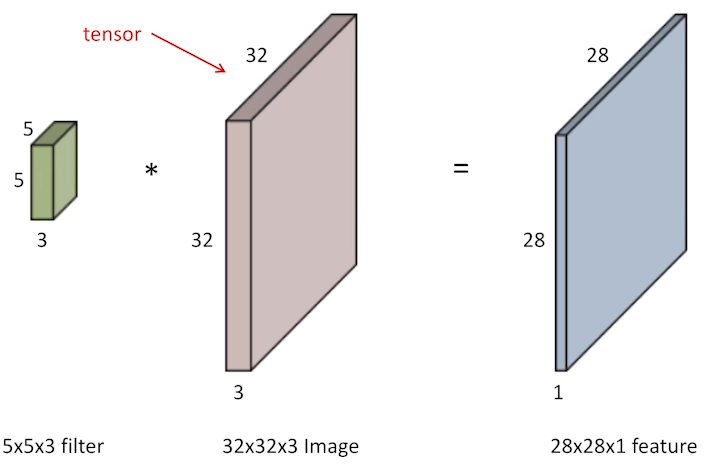

• RGB Image Convolution

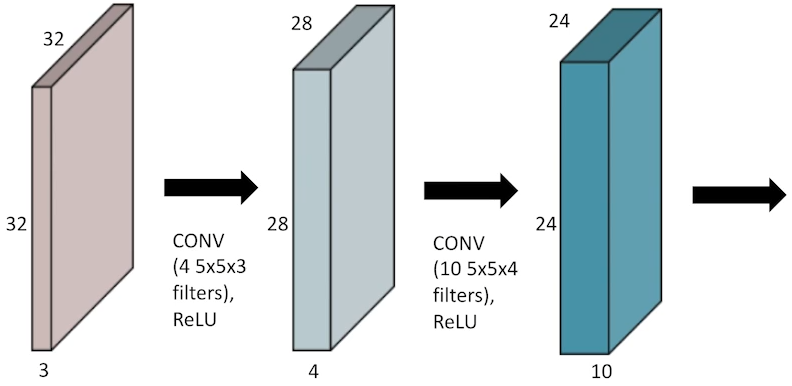

• Stack of Convolutions

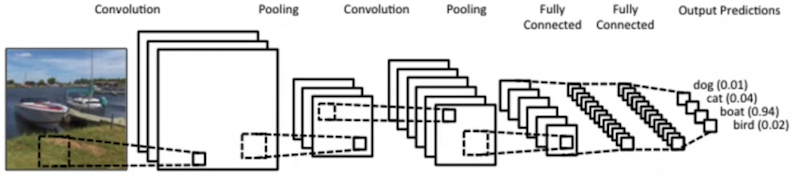

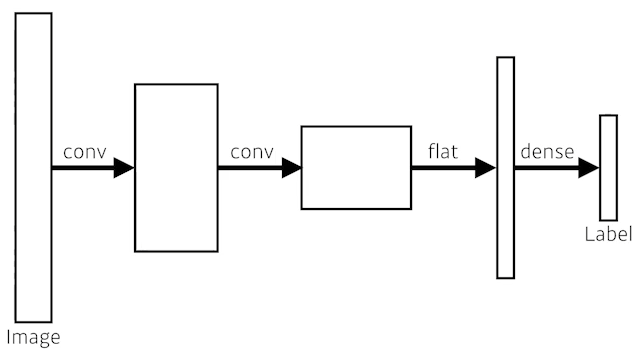

• Convolutional Neural Networks
  • 피처를 추출하는 convolution layer, pooling layer, 마지막에 분류 또는 회귀 등의 역할을 위한 fully connected layer로 구성됨
  • 학습 파라미터의 수를 줄이기 위해 fully connected layer를 최소화하는 추세

• Stride
  • convolution filter(kernal)의 이동 간격
• Padding
  • covolution operation 후 버려지는 boundary 정보를 채워 input과 output의 shape을 동일하게 함.(일반적으로 zero-padding 진행)

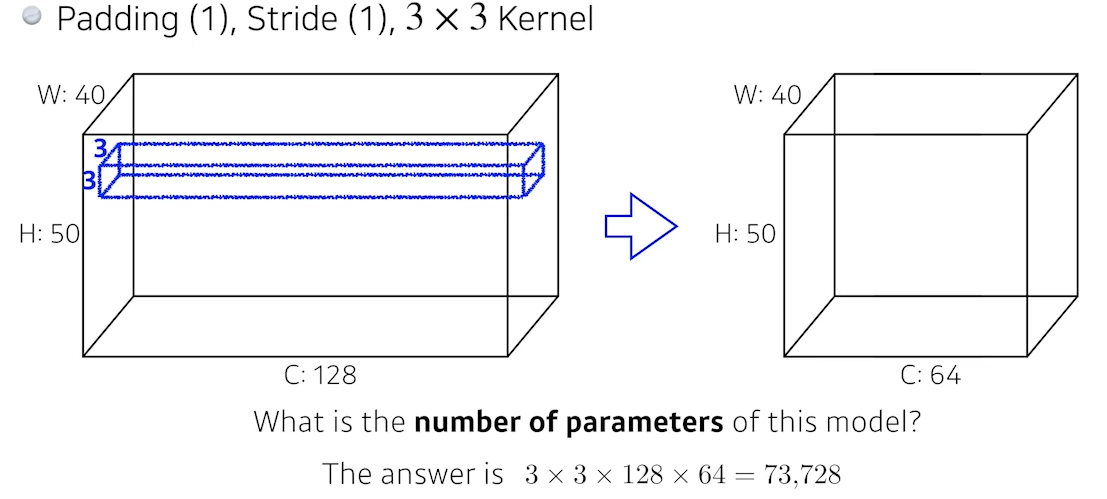

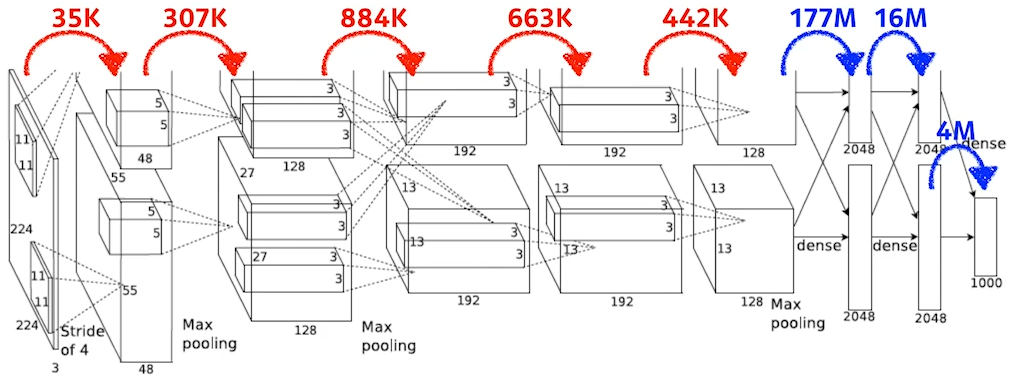

• Convolution Arithmetic

  • kernal width * kernal height * number of input channel * number of output channel

    • gpu 2장에 나눠 넣어 *2 발생
    • $11\times11\times3\times48*2\approx35k$
    • $5\times5\times48\times128*2\approx307k$
    • $3\times3\times128*2\times192*2\approx884k$
    • $3\times3\times192\times192*2\approx663k$
    • $3\times3\times192\times128*2\approx442k$
    • $13*13*128*2\times2048*2\approx177M$
    • $2048*2\times2048*2\approx16M$
    • $2048*2\times1000\approx4M$

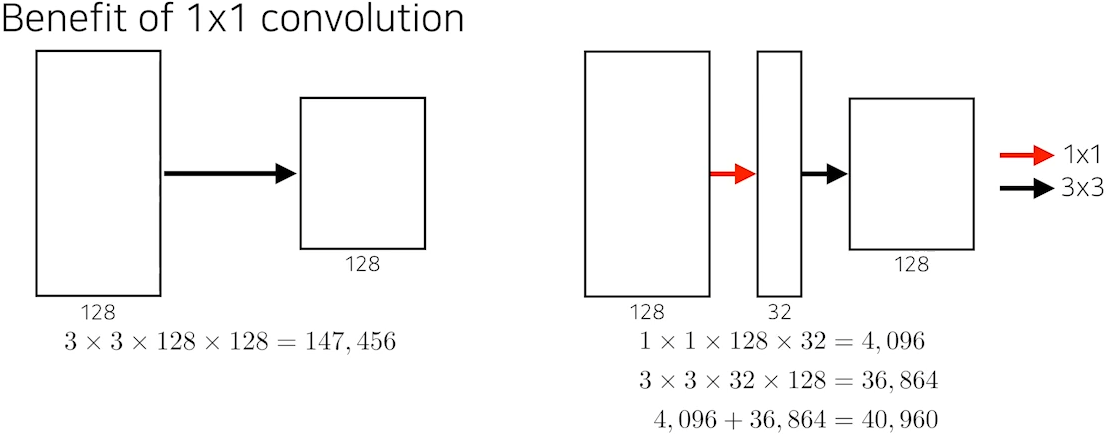

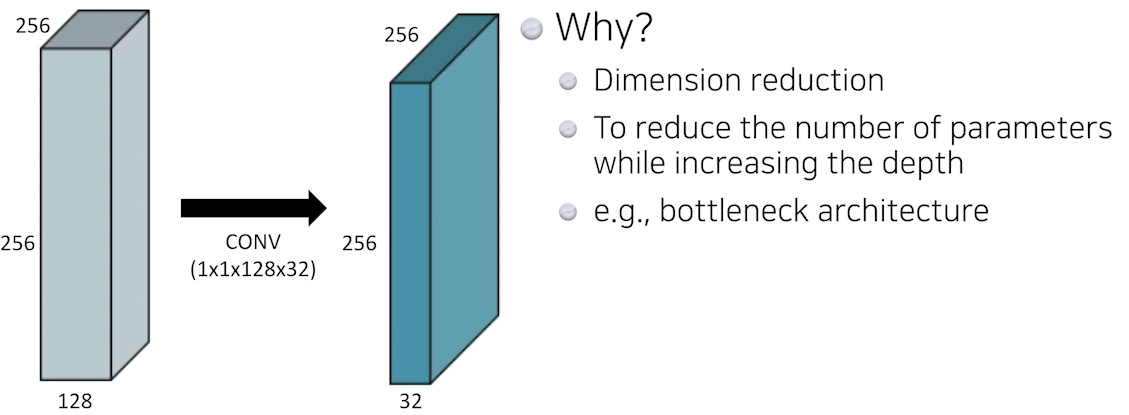

• 1x1 Convolution

  • 차원(채널) 축소
  • convolution layer를 깊게 쌓으면서 parameter 수를 줄일 수 있음

[DL Basic] Modern CNN - 1x1 convolution의 중요성

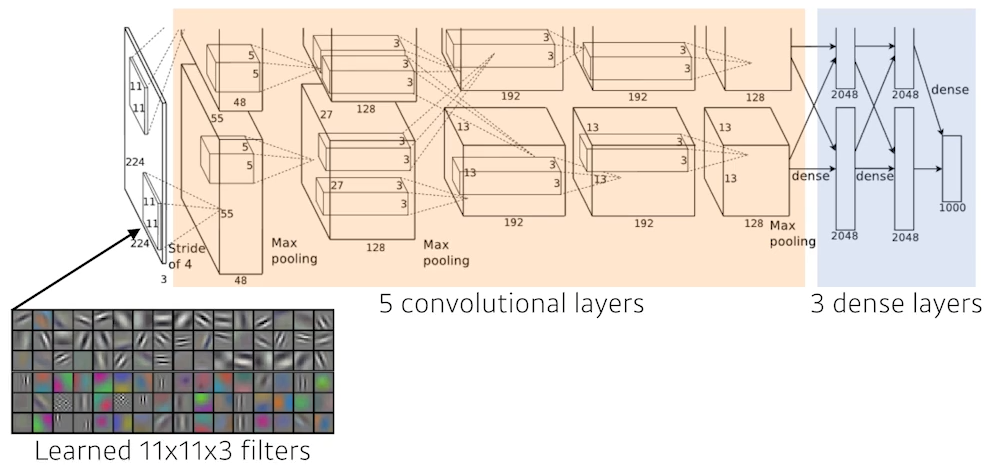

• AlexNet

  • Rectified Linear Unit(ReLU) activation
  • GPU implementation(2GPUs)
  • Local response normalization, Overlapping pooling
  • Data augmentation
  • Dropout

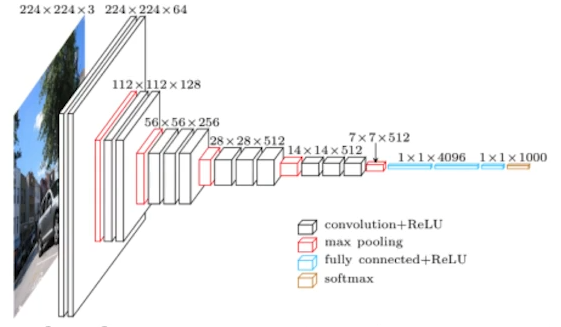

• VGGNet

  • Increasing depth with $3\times3$ convolution filters(with stride 1)
  • 1x1 convolution for fully connected layers
  • Dropout(p=0.5)
  • VGG16, VGG19

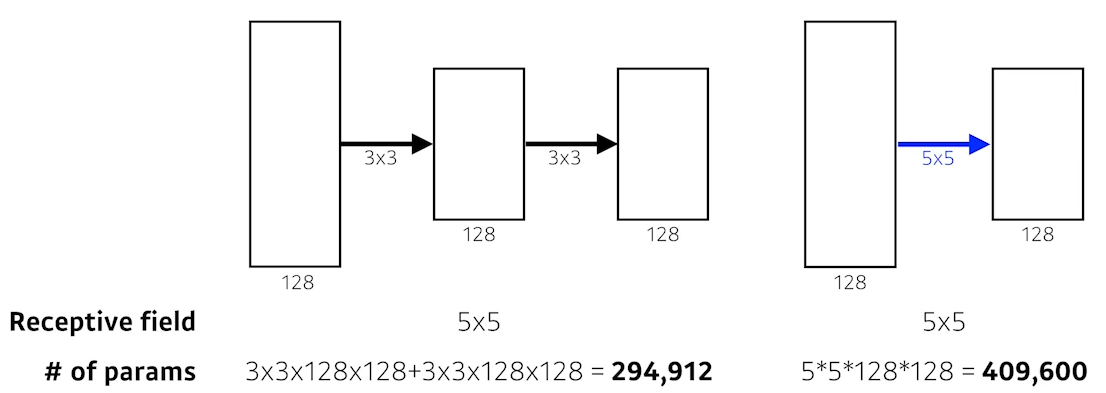

  • why $3\times3$ convolution?

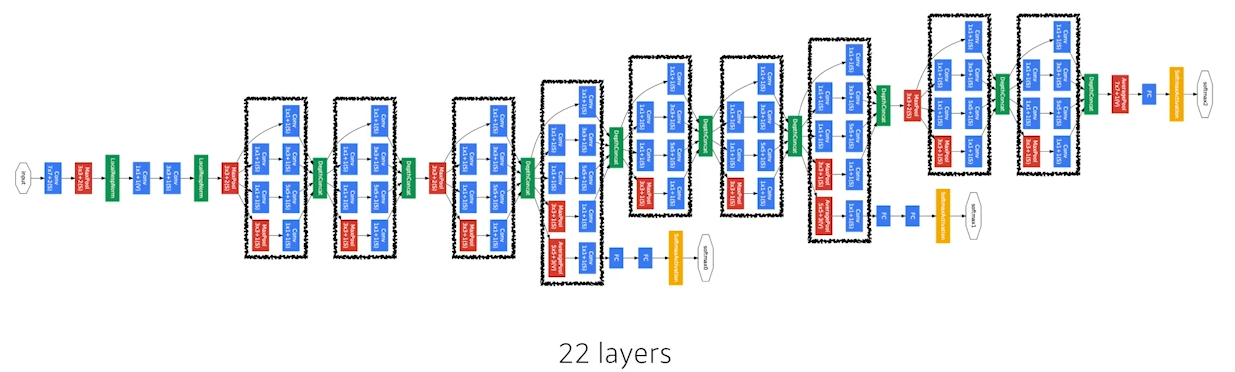

• GoogLeNet

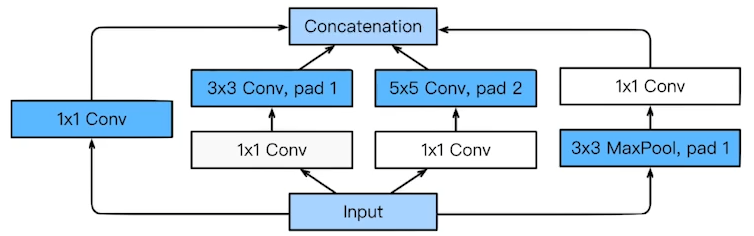

  • Inception blocks

    • can be seen as channel-wise dimension reduction
    •
• ResNet

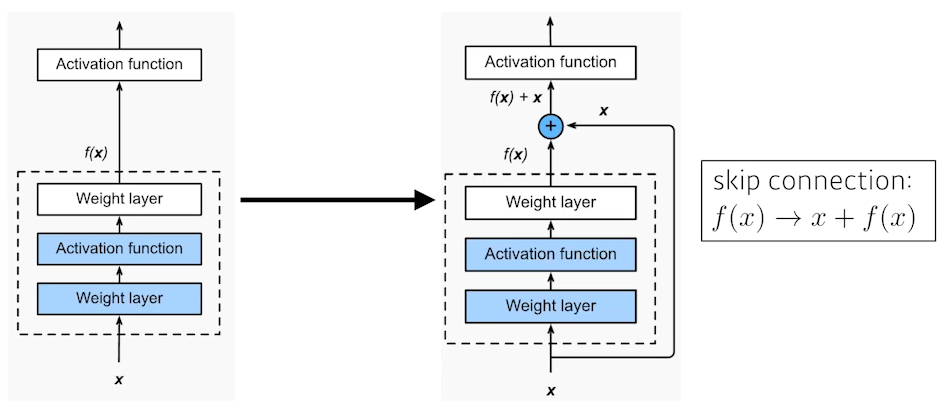

  • Add an identity map(skip connection)

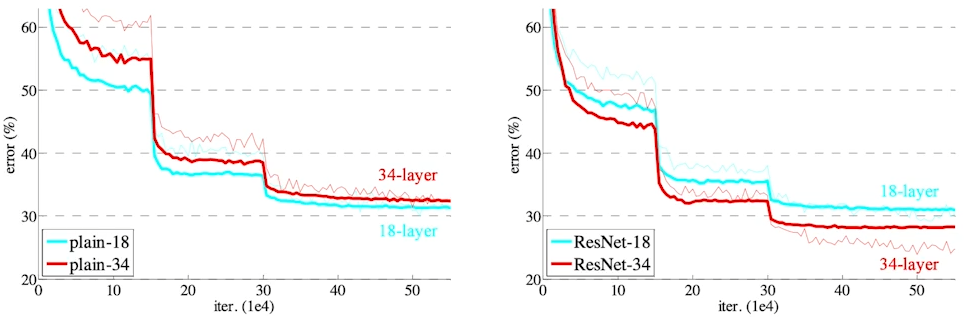

  • result

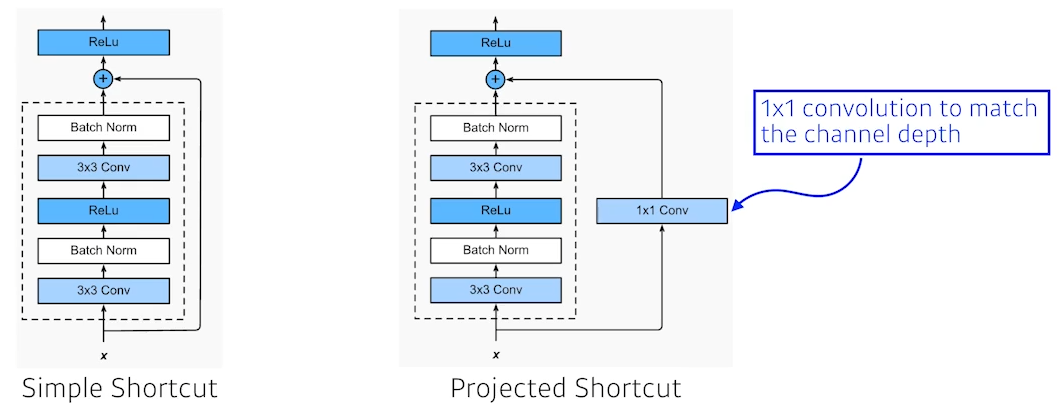

  • 일반적으로 simple shortcut 사용

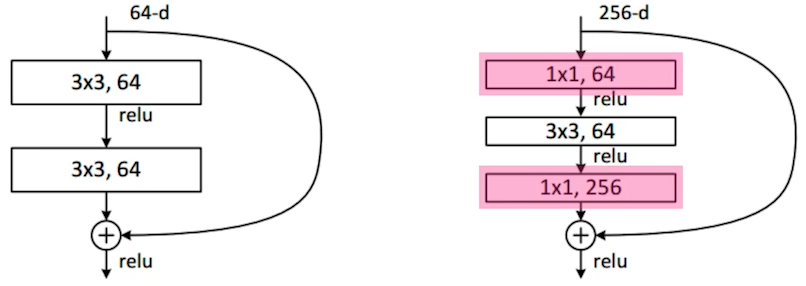

  • Bottleneck architecture

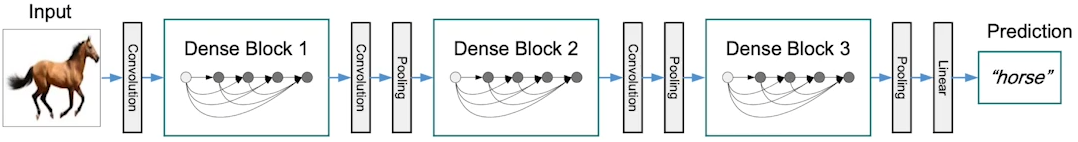

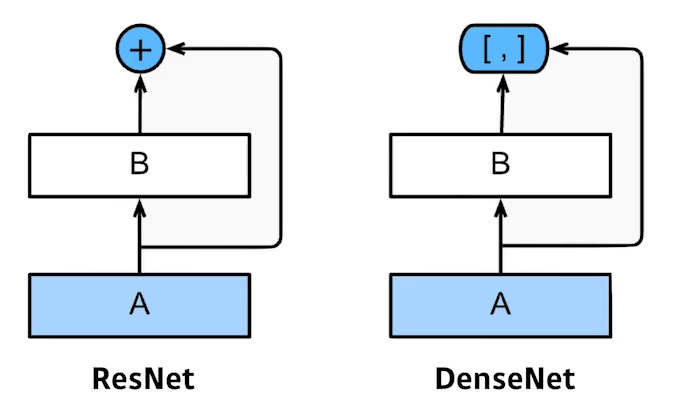

• DenseNet
  • Using concatenation instead of addition

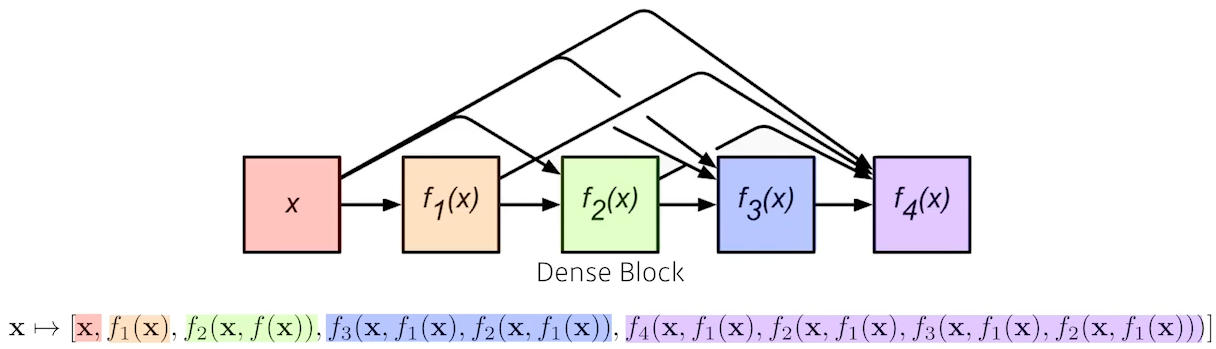

  • Dense Block
    • each layer concatenates feature maps of all preceding layers
    • the number of channels increases geometrically
  • Transition Block
    • BatchNorm -> 1x1 Conv -> 2x2 AvgPooling
    • Dimension reduction


[DL Basic] Computer Vision Applications

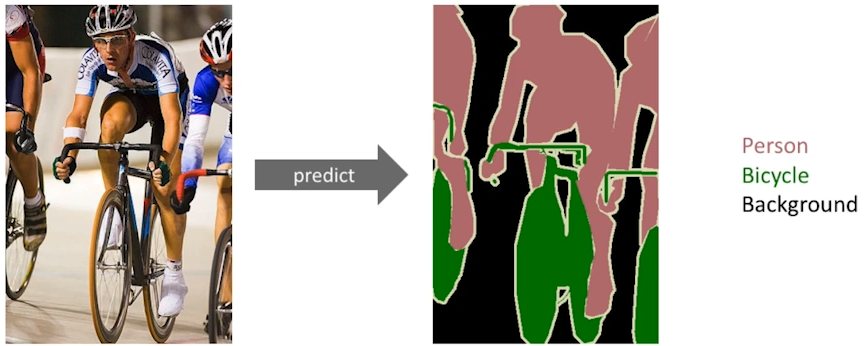

• Semantic Segmentation

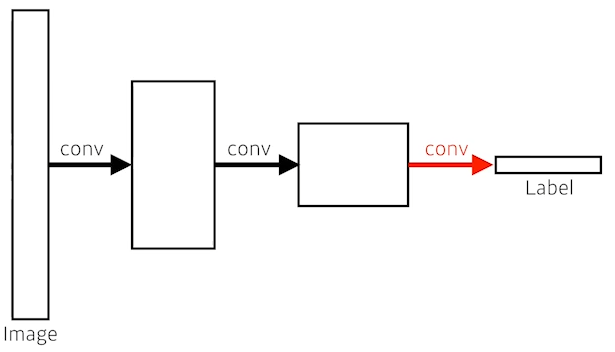

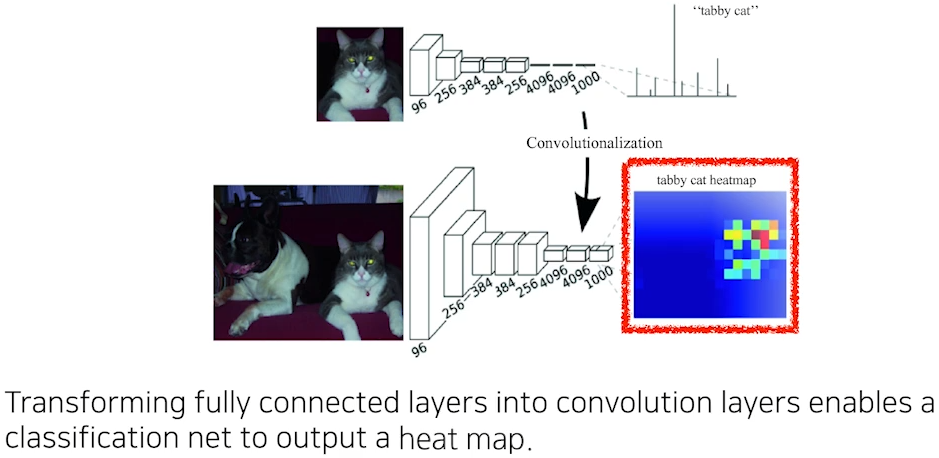

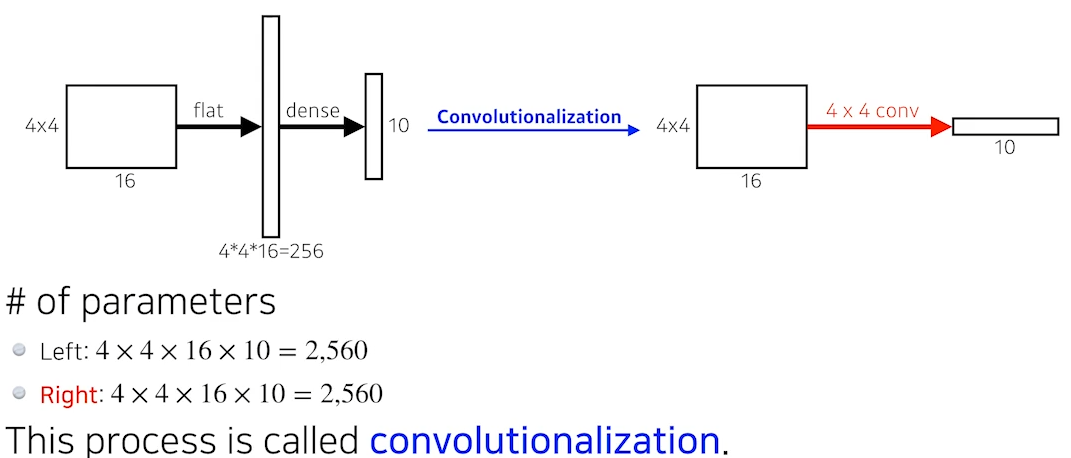

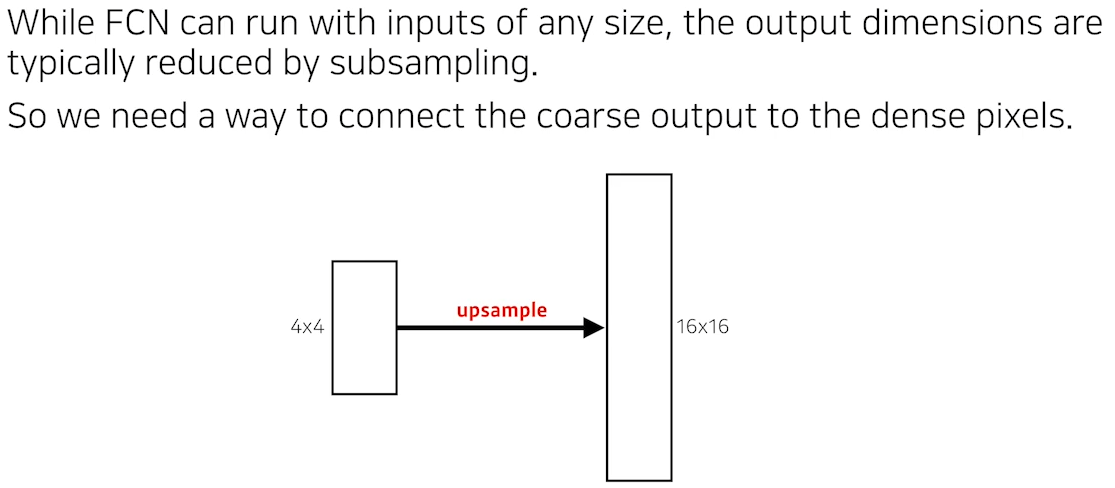

  • Full Convolutional Network
    •
    •
    •
    •
    •

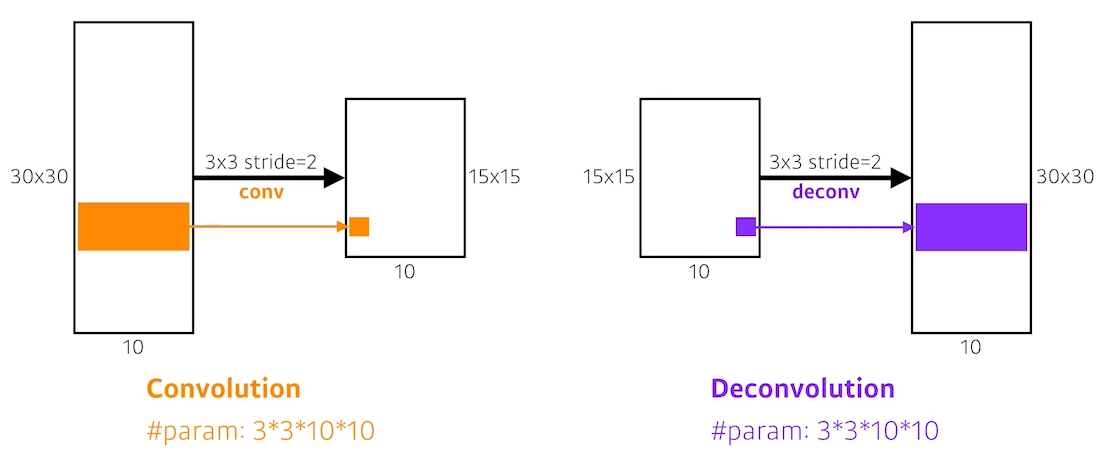

  • Deconvolution(conv transpose)


• Detection

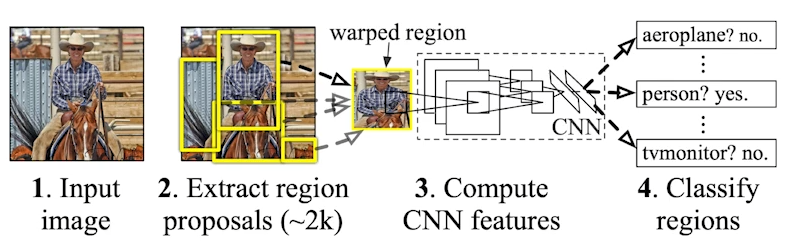

  • R-CNN

    • 1. takes an input image
    • 2. extracts around 2,000 region proposals(using Selective search)
    • 3. compute features for each proposal(using AlexNet)
    • 4. classifies with linear SVMs

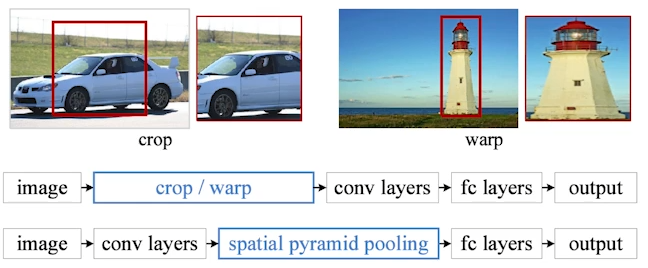

  • SPPnet

    • In R-CNN, the number of crop/warp is usually over 2,000 meaning that CNN must run more than 2,000 times
    • However, in SPPNet, CNN runs once

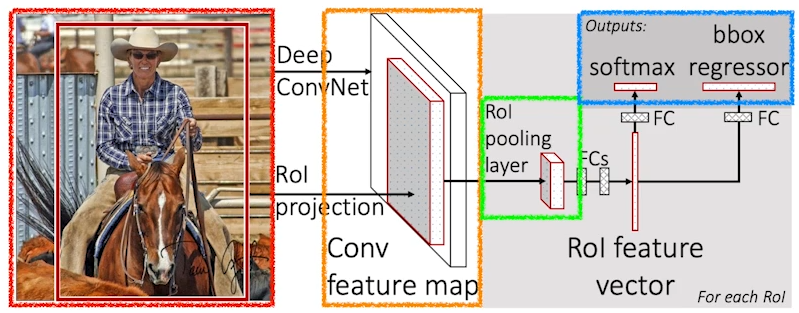

  • Fast R-CNN

    • 1. Takes an input and a set of bounding boxes
    • 2. Generated convolutional feature map
    • 3. For each region, get a fixed length feature from ROI pooling
    • 4. Two outputs: class and bouding box regressor

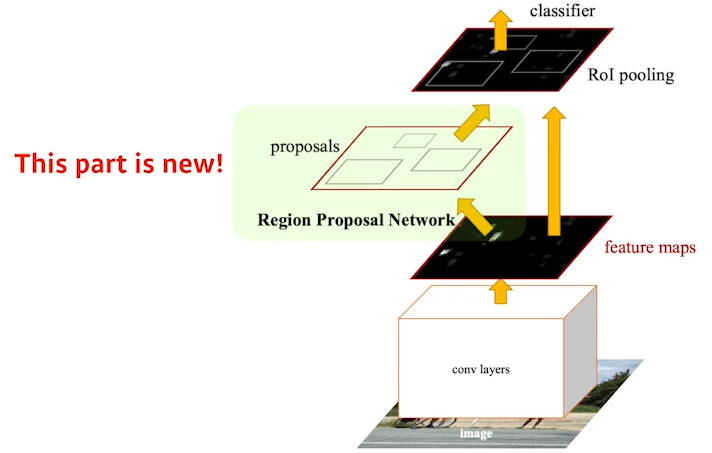

  • Faster R-CNN

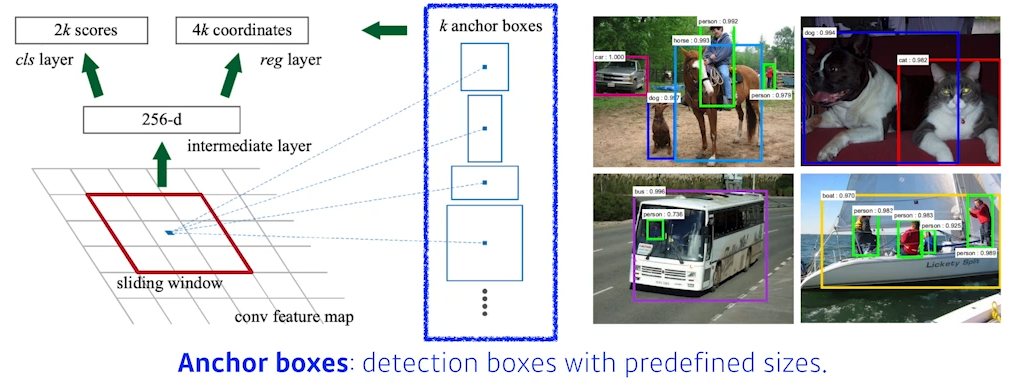

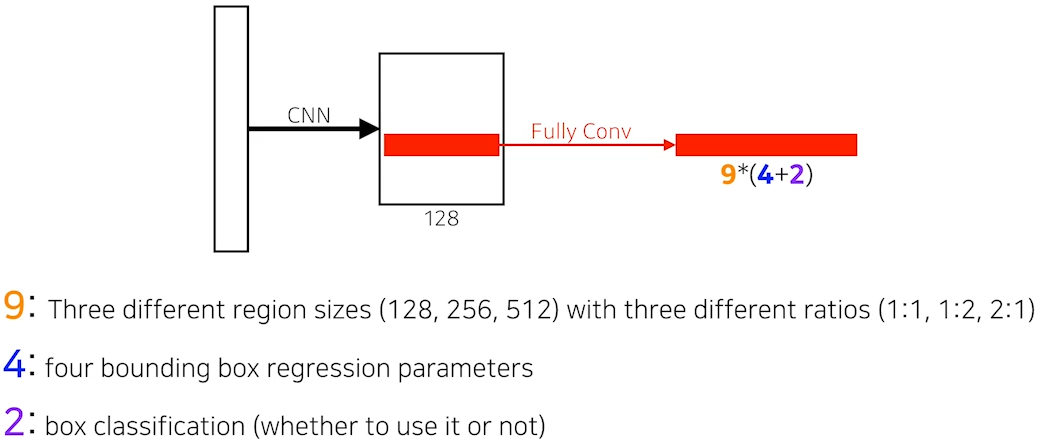

    • Region Proposal Network + Fast R-CNN
    •
    •
    •

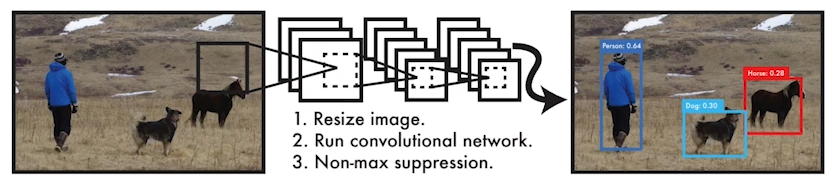

    • YOLO

    • YOLO(v1) is an extremely fast object detection algorithm
      • baseline : 45fps / smaller version: 155fps
    • It simultaneously predicts multiple bounding boxes and class probabilities
      • No explicit bounding box sampling(compared with Faster R-CNN)
    •

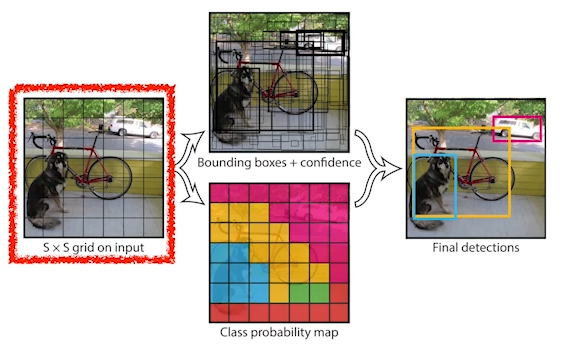

    • 1. Given an image, YOLO divides it into SxS grid
      • if the center of an object falls into the grid cell, that grid cell is responsible for detection
    • 2-1. Each cell predicts B bounding boxes(B=5)
      • each bounding box predicsts 1)box refinement(x/y/w/h), 2) confidence(of objectness)
    • 2-2. Each cell predicts C class probabilities
    • 3. In total, it becomes a tensor with SxSx(B*5+C) size.
      • SxS : Number of cells of the grid
      • B*5 : B bounding boxes with offsets(x,y,w,h) and confidence
      • C : number of classes
• Bounding box와 Class를 동시에 찾는 방향으로 논문이 발전하고 있다.



과제

• Convolution
  - 강의 보면서 완료
