문제예시

Solution manifest file for a network policy internal-policy as follows:

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: internal-policy
  namespace: default
spec:
  podSelector:
    matchLabels:
      name: internal
  policyTypes:
  - Egress
  - Ingress
  ingress:
    - {}
  egress:
  - to:
    - podSelector:
        matchLabels:
          name: mysql
    ports:
    - protocol: TCP
      port: 3306

  - to:
    - podSelector:
        matchLabels:
          name: payroll
    ports:
    - protocol: TCP
      port: 8080

  - ports:
    - port: 53
      protocol: UDP
    - port: 53
      protocol: TCP

'-'의 위치에 주의하자!

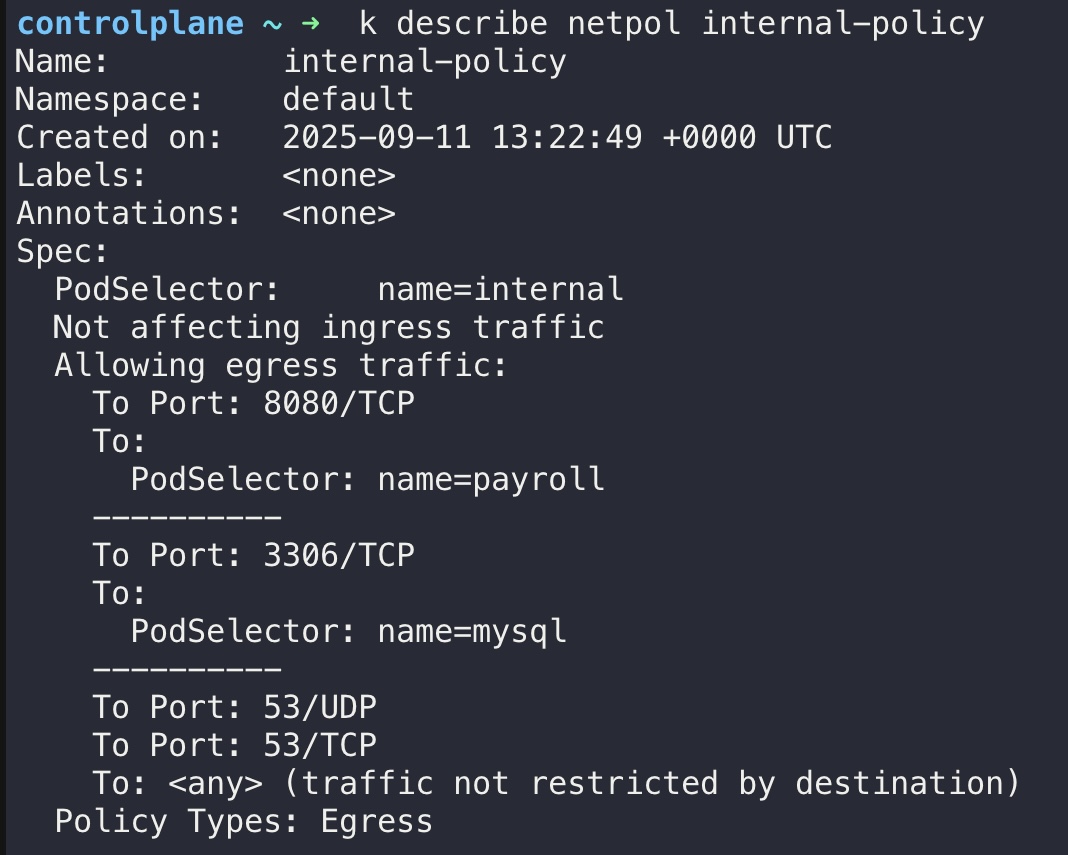

Explanation:

Target Pods:
This policy applies to all pods in the default namespace with the label name: internal.

Ingress:
All incoming traffic is allowed to these pods. This is typically needed for UI-based testing during labs.

In production, you should restrict ingress to only trusted sources.
Egress:
Outbound traffic is restricted to:

Pods labeled name: mysql on TCP port 3306 (database service)
Pods labeled name: payroll on TCP port 8080 (payroll service)
Any destination on UDP/TCP port 53 (for DNS resolution, required for service discovery in Kubernetes)
DNS Access:
DNS is handled by the kube-dns service, which listens on port 53 for both UDP and TCP:

root@controlplane:~> kubectl get svc -n kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-dns ClusterIP 10.96.0.10 53/UDP,53/TCP,9153/TCP 18m
