[D3D] Normal Mapping

vector·2025년 11월 23일
DirectX11(3D)

Normal Mapping

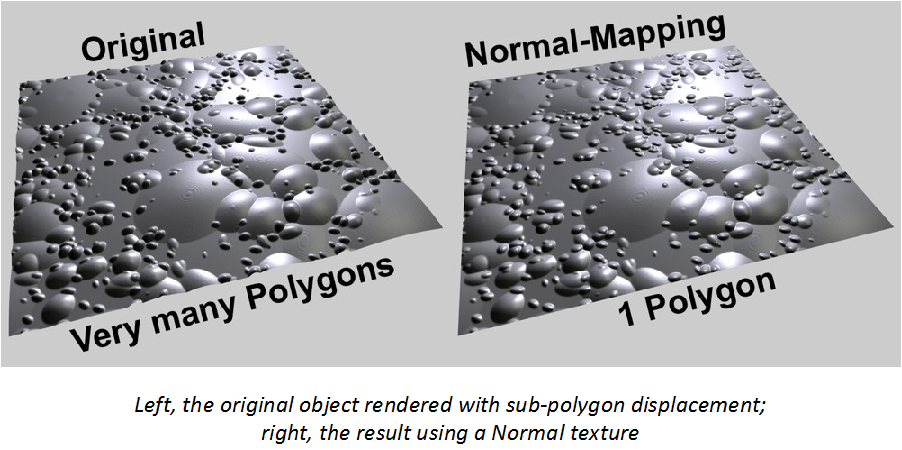

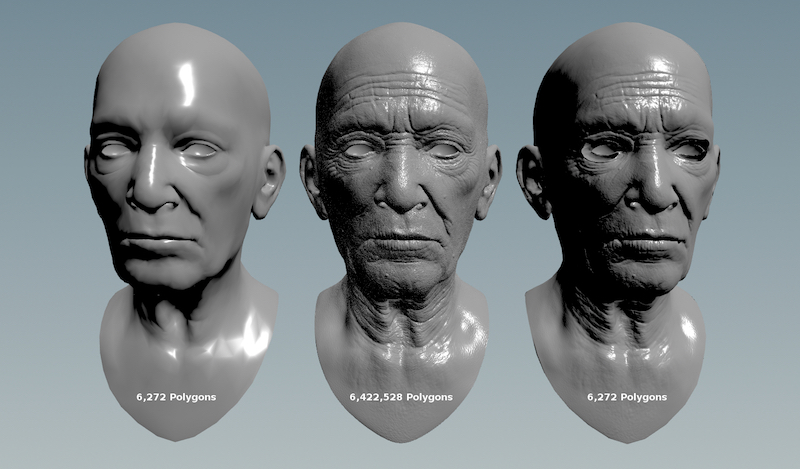

음영 효과를 내기 위해서는 폴리곤의 갯수를 많이 늘리면 된다. 하지만 폴리곤 갯수를 무한정 늘리게 될 경우 그 모든 폴리곤을 렌더링 해주면서 부하가 심해진다는 것을 알 수 있다. 그렇기에 이런 문제를 해결하기 위해 Normal Mapping을 사용해준다.

  • 텍스터 각 부분에 Normal Vector를 저장하고, 이를 활용해서 정밀한 음영효과를 표현
  • 하지만, 움질일 때마다 Normal Vector가 달라지기에 어디로 기준을 잡아야 하는지가 문제 -> Tangent Space를 활용
  • Tangent Space에서 TBN벡터를 구해준다.
  • Tangent Space가 어느 영역과 만나서 연산이 되는지는 쉐이더를 통해 만들때 결정된다.
  • 픽셀 쉐이더는 대부분 월드에서 연산하는 방식으로 구현
  • 즉, Space Transformation이 이루어져야 한다.

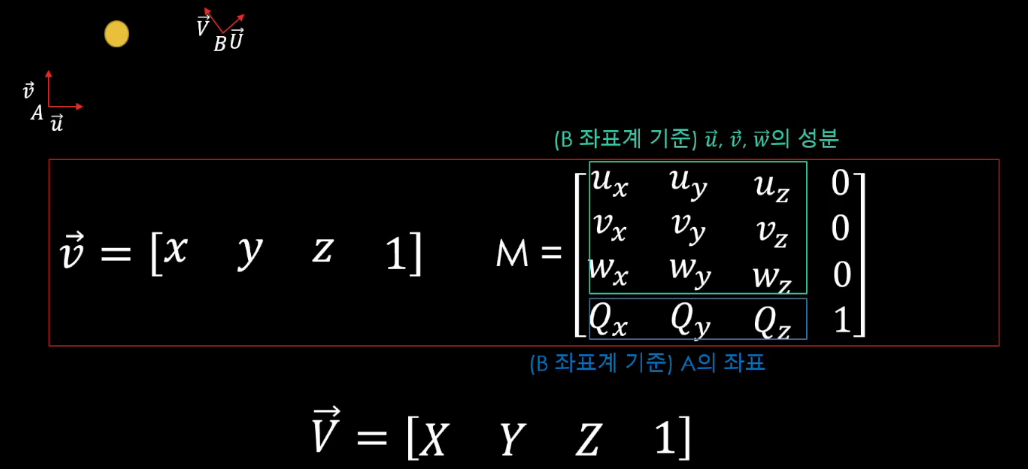

    -> Tangent Space -> Local Space -> World Space or View Space
  • 좌표계 변환을 통해 월드좌표로 변환
  • 텍스처에 있는 RGB(0~255)의 값을 -1 ~ 1사이의 값으로 변환

VertexData

  • Tangent Space 값을 받을 수 있는 구조체 생성
struct VertexTextureNormalTangentData
{
	Vec3 position = { 0, 0, 0 };
	Vec2 uv = { 0, 0 };
	Vec3 normal = { 0, 0, 0 };
	Vec3 tangent = { 0, 0, 0 };
};

Mesh

  • VertexTextureNormalTangentData구조체를 베이스로 하는 geometry로 변경
shared_ptr<Geometry<VertexTextureNormalTangentData>> _geometry;

GeometryHelper

  • VertexTextureNormalTangentData구조체를 베이스로 하는 Create() 추가
	static void CreateQuad(shared_ptr<Geometry<VertexTextureNormalTangentData>> geometry);
	static void CreateCube(shared_ptr<Geometry<VertexTextureNormalTangentData>> geometry);
	static void CreateSphere(shared_ptr<Geometry<VertexTextureNormalTangentData>> geometry);
	static void CreateGrid(shared_ptr<Geometry<VertexTextureNormalTangentData>> geometry, int32 sizeX, int32 sizeZ);
void GeometryHelper::CreateQuad(shared_ptr<Geometry<VertexTextureNormalTangentData>> geometry)
{
	vector<VertexTextureNormalTangentData> vtx;
	vtx.resize(4);

	vtx[0].position = Vec3(-0.5f, -0.5f, 0.f);
	vtx[0].uv = Vec2(0.f, 1.f);
	vtx[0].normal = Vec3(0.f, 0.f, -1.f);
	vtx[0].tangent = Vec3(1.0f, 0.0f, 0.0f);

	vtx[1].position = Vec3(-0.5f, 0.5f, 0.f);
	vtx[1].uv = Vec2(0.f, 0.f);
	vtx[1].normal = Vec3(0.f, 0.f, -1.f);
	vtx[1].tangent = Vec3(1.0f, 0.0f, 0.0f);

	vtx[2].position = Vec3(0.5f, -0.5f, 0.f);
	vtx[2].uv = Vec2(1.f, 1.f);
	vtx[2].normal = Vec3(0.f, 0.f, -1.f);
	vtx[2].tangent = Vec3(1.0f, 0.0f, 0.0f);

	vtx[3].position = Vec3(0.5f, 0.5f, 0.f);
	vtx[3].uv = Vec2(1.f, 0.f);
	vtx[3].normal = Vec3(0.f, 0.f, -1.f);
	vtx[3].tangent = Vec3(1.0f, 0.0f, 0.0f);
	geometry->SetVertices(vtx);

	vector<uint32> idx = { 0, 1, 2, 2, 1, 3 };
	geometry->SetIndices(idx);
}

void GeometryHelper::CreateCube(shared_ptr<Geometry<VertexTextureNormalTangentData>> geometry)
{
	float w2 = 0.5f;
	float h2 = 0.5f;
	float d2 = 0.5f;

	vector<VertexTextureNormalTangentData> vtx(24);

	// 앞면																				// normal				// tangent
	vtx[0] = VertexTextureNormalTangentData(Vec3(-w2, -h2, -d2), Vec2(0.0f, 1.0f), Vec3(0.0f, 0.0f, -1.0f), Vec3(1.0f, 0.0f, 0.0f));
	vtx[1] = VertexTextureNormalTangentData(Vec3(-w2, +h2, -d2), Vec2(0.0f, 0.0f), Vec3(0.0f, 0.0f, -1.0f), Vec3(1.0f, 0.0f, 0.0f));
	vtx[2] = VertexTextureNormalTangentData(Vec3(+w2, +h2, -d2), Vec2(1.0f, 0.0f), Vec3(0.0f, 0.0f, -1.0f), Vec3(1.0f, 0.0f, 0.0f));
	vtx[3] = VertexTextureNormalTangentData(Vec3(+w2, -h2, -d2), Vec2(1.0f, 1.0f), Vec3(0.0f, 0.0f, -1.0f), Vec3(1.0f, 0.0f, 0.0f));
	// 뒷면
	vtx[4] = VertexTextureNormalTangentData(Vec3(-w2, -h2, +d2), Vec2(1.0f, 1.0f), Vec3(0.0f, 0.0f, 1.0f), Vec3(-1.0f, 0.0f, 0.0f));
	vtx[5] = VertexTextureNormalTangentData(Vec3(+w2, -h2, +d2), Vec2(0.0f, 1.0f), Vec3(0.0f, 0.0f, 1.0f), Vec3(-1.0f, 0.0f, 0.0f));
	vtx[6] = VertexTextureNormalTangentData(Vec3(+w2, +h2, +d2), Vec2(0.0f, 0.0f), Vec3(0.0f, 0.0f, 1.0f), Vec3(-1.0f, 0.0f, 0.0f));
	vtx[7] = VertexTextureNormalTangentData(Vec3(-w2, +h2, +d2), Vec2(1.0f, 0.0f), Vec3(0.0f, 0.0f, 1.0f), Vec3(-1.0f, 0.0f, 0.0f));
	// 윗면
	vtx[8] = VertexTextureNormalTangentData(Vec3(-w2, +h2, -d2), Vec2(0.0f, 1.0f), Vec3(0.0f, 1.0f, 0.0f), Vec3(1.0f, 0.0f, 0.0f));
	vtx[9] = VertexTextureNormalTangentData(Vec3(-w2, +h2, +d2), Vec2(0.0f, 0.0f), Vec3(0.0f, 1.0f, 0.0f), Vec3(1.0f, 0.0f, 0.0f));
	vtx[10] = VertexTextureNormalTangentData(Vec3(+w2, +h2, +d2), Vec2(1.0f, 0.0f), Vec3(0.0f, 1.0f, 0.0f), Vec3(1.0f, 0.0f, 0.0f));
	vtx[11] = VertexTextureNormalTangentData(Vec3(+w2, +h2, -d2), Vec2(1.0f, 1.0f), Vec3(0.0f, 1.0f, 0.0f), Vec3(1.0f, 0.0f, 0.0f));
	// 아랫면
	vtx[12] = VertexTextureNormalTangentData(Vec3(-w2, -h2, -d2), Vec2(1.0f, 1.0f), Vec3(0.0f, -1.0f, 0.0f), Vec3(-1.0f, 0.0f, 0.0f));
	vtx[13] = VertexTextureNormalTangentData(Vec3(+w2, -h2, -d2), Vec2(0.0f, 1.0f), Vec3(0.0f, -1.0f, 0.0f), Vec3(-1.0f, 0.0f, 0.0f));
	vtx[14] = VertexTextureNormalTangentData(Vec3(+w2, -h2, +d2), Vec2(0.0f, 0.0f), Vec3(0.0f, -1.0f, 0.0f), Vec3(-1.0f, 0.0f, 0.0f));
	vtx[15] = VertexTextureNormalTangentData(Vec3(-w2, -h2, +d2), Vec2(1.0f, 0.0f), Vec3(0.0f, -1.0f, 0.0f), Vec3(-1.0f, 0.0f, 0.0f));
	// 왼쪽면
	vtx[16] = VertexTextureNormalTangentData(Vec3(-w2, -h2, +d2), Vec2(0.0f, 1.0f), Vec3(-1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, -1.0f));
	vtx[17] = VertexTextureNormalTangentData(Vec3(-w2, +h2, +d2), Vec2(0.0f, 0.0f), Vec3(-1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, -1.0f));
	vtx[18] = VertexTextureNormalTangentData(Vec3(-w2, +h2, -d2), Vec2(1.0f, 0.0f), Vec3(-1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, -1.0f));
	vtx[19] = VertexTextureNormalTangentData(Vec3(-w2, -h2, -d2), Vec2(1.0f, 1.0f), Vec3(-1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, -1.0f));
	// 오른쪽면
	vtx[20] = VertexTextureNormalTangentData(Vec3(+w2, -h2, -d2), Vec2(0.0f, 1.0f), Vec3(1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, 1.0f));
	vtx[21] = VertexTextureNormalTangentData(Vec3(+w2, +h2, -d2), Vec2(0.0f, 0.0f), Vec3(1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, 1.0f));
	vtx[22] = VertexTextureNormalTangentData(Vec3(+w2, +h2, +d2), Vec2(1.0f, 0.0f), Vec3(1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, 1.0f));
	vtx[23] = VertexTextureNormalTangentData(Vec3(+w2, -h2, +d2), Vec2(1.0f, 1.0f), Vec3(1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, 1.0f));

	geometry->SetVertices(vtx);

	vector<uint32> idx(36);

	// 앞면
	idx[0] = 0; idx[1] = 1; idx[2] = 2;
	idx[3] = 0; idx[4] = 2; idx[5] = 3;
	// 뒷면
	idx[6] = 4; idx[7] = 5; idx[8] = 6;
	idx[9] = 4; idx[10] = 6; idx[11] = 7;
	// 윗면
	idx[12] = 8; idx[13] = 9; idx[14] = 10;
	idx[15] = 8; idx[16] = 10; idx[17] = 11;
	// 아랫면
	idx[18] = 12; idx[19] = 13; idx[20] = 14;
	idx[21] = 12; idx[22] = 14; idx[23] = 15;
	// 왼쪽면
	idx[24] = 16; idx[25] = 17; idx[26] = 18;
	idx[27] = 16; idx[28] = 18; idx[29] = 19;
	// 오른쪽면
	idx[30] = 20; idx[31] = 21; idx[32] = 22;
	idx[33] = 20; idx[34] = 22; idx[35] = 23;

	geometry->SetIndices(idx);
}

void GeometryHelper::CreateGrid(shared_ptr<Geometry<VertexTextureNormalTangentData>> geometry, int32 sizeX, int32 sizeZ)
{
	vector<VertexTextureNormalTangentData> vtx;

	for (int32 z = 0; z < sizeZ + 1; z++)
	{
		for (int32 x = 0; x < sizeX + 1; x++)
		{
			VertexTextureNormalTangentData v;
			v.position = Vec3(static_cast<float>(x), 0, static_cast<float>(z));
			v.uv = Vec2(static_cast<float>(x), static_cast<float>(sizeZ - z));
			v.normal = Vec3(0.f, 1.f, 0.f);
			v.tangent = Vec3(1.f, 0.f, 0.f);

			vtx.push_back(v);
		}
	}

	geometry->SetVertices(vtx);

	vector<uint32> idx;

	for (int32 z = 0; z < sizeZ; z++)
	{
		for (int32 x = 0; x < sizeX; x++)
		{
			//  [0]
			//   |	\
			//  [2] - [1]
			idx.push_back((sizeX + 1) * (z + 1) + (x));
			idx.push_back((sizeX + 1) * (z)+(x + 1));
			idx.push_back((sizeX + 1) * (z)+(x));
			//  [1] - [2]
			//   	\  |
			//		  [0]
			idx.push_back((sizeX + 1) * (z)+(x + 1));
			idx.push_back((sizeX + 1) * (z + 1) + (x));
			idx.push_back((sizeX + 1) * (z + 1) + (x + 1));
		}
	}

	geometry->SetIndices(idx);
}

void GeometryHelper::CreateSphere(shared_ptr<Geometry<VertexTextureNormalTangentData>> geometry)
{
	float radius = 0.5f; // 구의 반지름
	uint32 stackCount = 20; // 가로 분할
	uint32 sliceCount = 20; // 세로 분할

	vector<VertexTextureNormalTangentData> vtx;

	VertexTextureNormalTangentData v;

	// 북극
	v.position = Vec3(0.0f, radius, 0.0f);
	v.uv = Vec2(0.5f, 0.0f);
	v.normal = v.position;
	v.normal.Normalize();
	v.tangent = Vec3(1.0f, 0.0f, 0.0f);
	v.tangent.Normalize();
	vtx.push_back(v);

	float stackAngle = XM_PI / stackCount;
	float sliceAngle = XM_2PI / sliceCount;

	float deltaU = 1.f / static_cast<float>(sliceCount);
	float deltaV = 1.f / static_cast<float>(stackCount);

	for (uint32 y = 1; y <= stackCount - 1; ++y)
	{
		float phi = y * stackAngle;

		for (uint32 x = 0; x <= sliceCount; ++x)
		{
			float theta = x * sliceAngle;

			v.position.x = radius * sinf(phi) * cosf(theta);
			v.position.y = radius * cosf(phi);
			v.position.z = radius * sinf(phi) * sinf(theta);

			v.uv = Vec2(deltaU * x, deltaV * y);

			v.normal = v.position;
			v.normal.Normalize();

			v.tangent.x = -radius * sinf(phi) * sinf(theta);
			v.tangent.y = 0.0f;
			v.tangent.z = radius * sinf(phi) * cosf(theta);
			v.tangent.Normalize();

			vtx.push_back(v);
		}
	}

	// 남극
	v.position = Vec3(0.0f, -radius, 0.0f);
	v.uv = Vec2(0.5f, 1.0f);
	v.normal = v.position;
	v.normal.Normalize();
	v.tangent = Vec3(1.0f, 0.0f, 0.0f);
	v.tangent.Normalize();
	vtx.push_back(v);

	geometry->SetVertices(vtx);

	vector<uint32> idx(36);

	// 북극 인덱스
	for (uint32 i = 0; i <= sliceCount; ++i)
	{
		idx.push_back(0);
		idx.push_back(i + 2);
		idx.push_back(i + 1);
	}

	// 몸통 인덱스
	uint32 ringVertexCount = sliceCount + 1;
	for (uint32 y = 0; y < stackCount - 2; ++y)
	{
		for (uint32 x = 0; x < sliceCount; ++x)

			idx.push_back(1 + (y)*ringVertexCount + (x));
			idx.push_back(1 + (y)*ringVertexCount + (x + 1));
			idx.push_back(1 + (y + 1) * ringVertexCount + (x));

			idx.push_back(1 + (y + 1) * ringVertexCount + (x));
			idx.push_back(1 + (y)*ringVertexCount + (x + 1));
			idx.push_back(1 + (y + 1) * ringVertexCount + (x + 1));
		}
	}

	// 남극 인덱스
	uint32 bottomIndex = static_cast<uint32>(vtx.size()) - 1;
	uint32 lastRingStartIndex = bottomIndex - ringVertexCount;
	for (uint32 i = 0; i < sliceCount; ++i)
	{
		idx.push_back(bottomIndex);
		idx.push_back(lastRingStartIndex + i);
		idx.push_back(lastRingStartIndex + i + 1);
	}

	geometry->SetIndices(idx);
}

00.Global.fx

  • Global 쉐이더에서도 Tangent가 추가된 Buffer 추가
struct VertexTetrueNormalTangent
{
    float4 position : POSITION;
    float2 uv : TEXCOORD;
    float3 normal : NOERMAL;
    float3 tangent : TANGENT;
};

struct MeshOutput
{
    float4 position : SV_POSITION; //SV : System Value
    float3 worldPosition : POSITION1;
    float2 uv : TEXCOORD;
    float3 normal : NORMAL;
    float3 tangent : TANGENT;
};

00.Light.fx

  • Normal값에 TangentSpace가 적용 시키는 함수 ComputeNormalMapping()를 생성
// inout : 포인터 or 참조 느낌
void ComputeNormalMapping(inout float3 normal, float3 tangent, float2 uv)
{
    // [0, 255] -> [0, 1] 변환
    float4 map = NormalMap.Sample(LinearSampler, uv);
    if (any(map.rgb) == false)
        return;

    float3 N = normalize(normal);       // z
    float3 T = normalize(tangent);      // x
    float3 B = normalize(cross(N, T));  // y
    // Tan -> World 변환 행렬
    float3x3 TBN = float3x3(T, B, N);

    // [0,1] -> [-1, 1] 변환
    float3 tangentSpaceNormal = (map.rgb * 2.0f - 1.0f);
    float3 worldNormal = mul(tangentSpaceNormal, TBN);

    normal = worldNormal;
}

14.NormalMapping.fx

  • VS에서 tangent값 추가
  • PS에서 변환시킨 normal값 적용
MeshOutput VS(VertexTetrueNormalTangent input)
{
    MeshOutput output;
    output.position = mul(input.position, W);
    output.worldPosition = input.position.xyz;
    output.position = mul(output.position, VP);
    output.uv = input.uv;
    output.normal = mul(input.normal, (float3x3) W);
    output.tangent = mul(input.tangent, (float3x3) W);

    return output;
}

float4 PS(MeshOutput input) : SV_TARGET
{
    ComputeNormalMapping(input.normal, input.tangent, input.uv);

    float4 color = ComputeLight(input.normal, input.uv, input.worldPosition);

    return color;
}

18.NormalMappingDemo

  • NormalMap추가
void NormalMappingDemo::Init()
{
	RESOURCES->Init();
	_shader = make_shared<Shader>(L"14.NormalMapping.fx");

	// Material
	{
		shared_ptr<Material> material = make_shared<Material>();
		{
			material->SetShader(_shader);
		}
		{
			auto texture = RESOURCES->Load<Texture>(L"Leather", L"../Resources/Textures/Leather.jpg");
			material->SetDiffuseMap(texture);
		}
		{
			auto texture = RESOURCES->Load<Texture>(L"LeatherNormap", L"../Resources/Textures/Leather_Normal.jpg");
			material->SetNormalMap(texture);
		}

		MaterialDesc& desc = material->GetMaterialDesc();
		desc.ambient = Vec4(1.f);
		desc.diffuse = Vec4(1.f);
		desc.specular = Vec4(1.f);

		RESOURCES->Add(L"Leather", material);
	}

	// Camera
	_camera = make_shared<GameObject>();
	_camera->GetOrAddTransform()->SetPosition(Vec3{ 0.f, 0.f, -10.f });
	_camera->AddComponent(make_shared<Camera>());
	_camera->AddComponent(make_shared<CameraScript>());

	// Object
	_obj = make_shared<GameObject>();
	_obj->GetOrAddTransform();
	_obj->AddComponent(make_shared<MeshRenderer>());
	{
		auto mesh = RESOURCES->Get<Mesh>(L"Sphere");
		_obj->GetMeshRenderer()->SetMesh(mesh);
	}
	{
		auto material = RESOURCES->Get<Material>(L"Leather");
		_obj->GetMeshRenderer()->SetMaterial(material);
	}

	// Object2
	_obj2 = make_shared<GameObject>();
	_obj2->GetOrAddTransform()->SetPosition(Vec3{ 0.5f, 0.f, 2.f });
	_obj2->AddComponent(make_shared<MeshRenderer>());
	{
		auto mesh = RESOURCES->Get<Mesh>(L"Cube");
		_obj2->GetMeshRenderer()->SetMesh(mesh);
	}
	{
		auto material = RESOURCES->Get<Material>(L"Leather");
		_obj2->GetMeshRenderer()->SetMaterial(material);
	}

	RENDER->Init(_shader);
}

결과

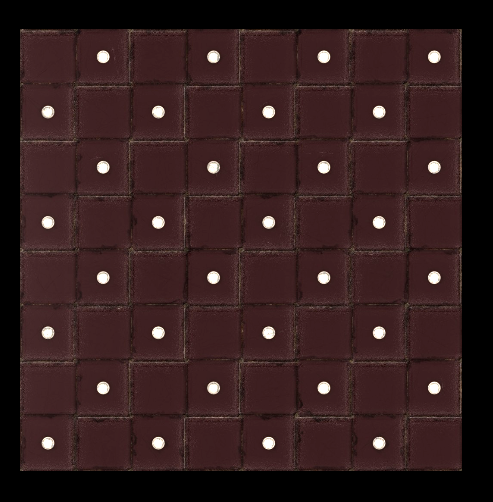

  • NormalMap 제거

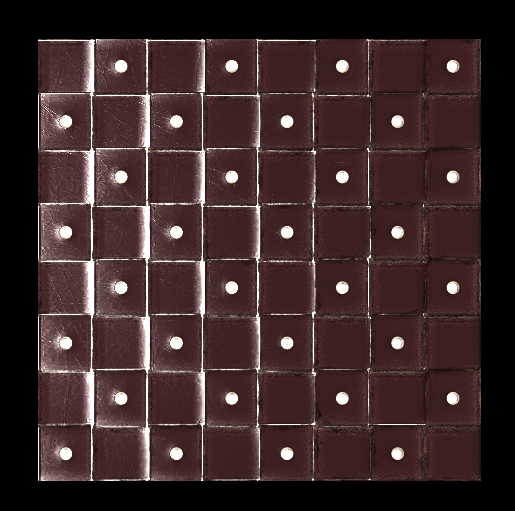

  • NormalMap 추가

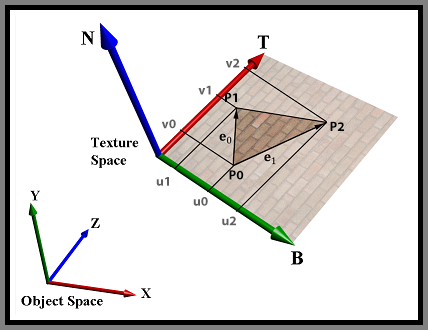

Tangent Space

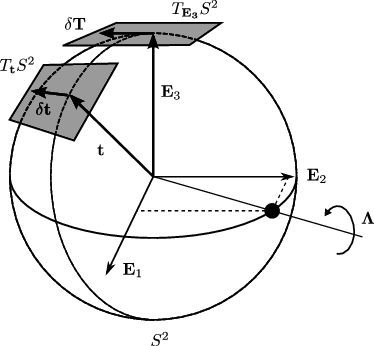

  • 모델 표면의 로컬(Local) 좌표계
  • 즉, 메시의 각 정점마다 그 표면 기준으로 X, Y, Z 방향(TBN벡터)을 정의한 좌표 공간
  • T (Tangent) : X축, 표면의 U 텍스처 좌표 방향
  • B (Bitangent) : Y축, 표면의 V 텍스처 좌표 방향
  • N (Normal) : Z축, 표면에서 수직 방향
  • 보통 노멀맵의 RGB는 TangentSpace 기준의 노멀방향으로 저장되지만, 조명 계산은 World Space 나 View Space에서 이루어지기 때문에, 월드나 뷰로 변환해줘야한다.
  • 이러한 과정을 통해서 픽셀 단위의 "가짜 법선 방향"을 실제 월드 좌표 기준으로 바꿔 조명을 정확히 계산할 수 있다.

참고 강의

https://www.inflearn.com/courses/lecture?courseId=329791&type=LECTURE&unitId=161135&tab=curriculum&subtitleLanguage=ko

첨부자료 출처

profile
vector
게임 클라이언트 프로그래머 준비중 (공부 및 기록용)
이전 포스트

[D3D] Material

다음 포스트

[D3D] 카메라 버그 (TroubleShooting)

0개의 댓글
