[LangGraph] Fundamentals

The Simplest Graph

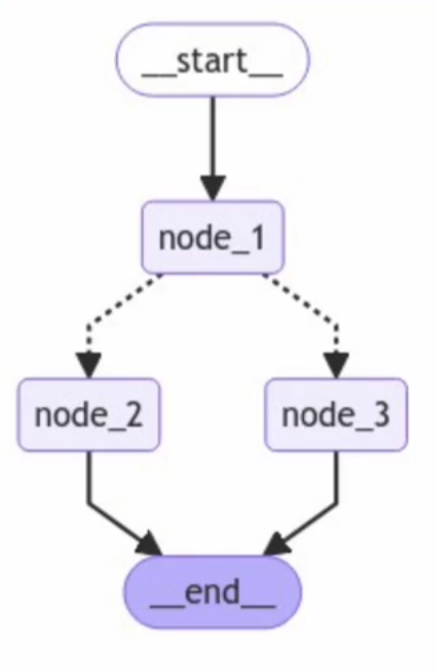

• This is a simple graph with 3 nodes and 1 conditional edge.

Key Components

1. State
   • This object will encapsulate the graph being traversed during excecution.
   • The core of our application, defining the flow of the application.
   • A custom class representing the states of our planning process.
   • The State schema usually serves as the input schema for all Nodes and Edges in the graph.

from typing_extenstions import Typed Dict

class State(TypedDict):
	graph_state: str

2. Nodes
   • In LangGraph, nodes are typically python functions.
   • There are two main nodes we will use for our graph:
     • The agent node: responsible for deciding what (if any) actions to take.
     • The tool node: This node will orchestrate calling the respective tool and returning the output.
   • Each node returns a new value of the state key graph_state.
   • By default, the new value returned by each node will override the prior state value.

NOTE: Because the state is a TypedDict with schema as defined above, each node can access the key; graph_state, with state['graph_state'].

def node_1(state):
	return {"graph_state": state['graph_state'] + " I am"}

def node_2(state):
	return {"graph_state": state['graph_state'] + " happy!"}

## def node_3(state):
	return {"graph_state": state['graph_state'] + " sad!"}

3. Edges
   • Defines how the logic is routed and how the graph decides to stop.
   • Defines how your agents work and how different nodes communicate with each other.
   • There are a few key types of edges:
     • Normal Edges: Go directly from one node to the next.
     • Conditional Edges: Call a function to determine which node(s) to go to next.
     • Entry Point: Which node to call first when user input arrives.
     • Conditional Entry Point: Call a function to determine which node(s) to call first when user input arrives.

import random
from typing import Literal

def decide_mood(state) -> Literal["node_2", "node_3"]:
	# Often, We will use state to decide on the next node to visit
    user_input = state['graph_state']
    print("user input: ", user_input)

    # Here, let's just do a 50 50 split between nodes 2, 3
    if random.random() < 0.5:
    	return "node_2"
    return "node_3"

4. LLM Integration: Utilizing a language model to generate the final itinerary.

5. Memory Integration: Utilizing long term and short term memory for conversations

---

Graph Construction

• We build the graph from our components (basically with State, Nodes, and Edges)
• The StateGraph class is the graph class that we can use.
• First, we initialize a StateGraph with the State class we defined.
• Then, we add our nodes and Edges.
• We use the START node, a special node that sends user input to the graph, to indicate where to start our graph.
• The END node is a special node that represents a terminal node.
• Finally, we compile our graph to perfrom a few basic checks on the graph structure.
• We can visualize the graph as a Mermaid diagram.

from IPython.display import Image, display
from langgraph.graph import StateGraph, START, END

# Build graph
builder = StateGraph(State)
builder.add_node("node_1", node_1)
builder.add_node("node_2", node_2)
builder.add_node("node_3", node_3)

# Logic
builder.add_edge(START, "node_1")
builder.add_conditional_edges("node_1", decide_mood)
builder.add_edge("node_2", END)
builder.add_edge("node_3", END)

# Add
graph = builder.compile()

# View
display(Image(graph.get_graph().draw_mermaid_png()))

Graph Invocation

• The compiled graph implements the runnable protocol.
• This provides a standard way to execute LangChain components.
• invoke is one of the standard methods in this interface.
• The input is a dictionary {"graph_state": "Hi, this is Lance."}, which sets the initial value for our graph state dict.
• When invoke is called, the graph starts execution from the START node.
• It progresses through the defined nodes (node_1, node_2, node_3) in order.
• The conditional edge will traverse from node 1 to node 2 or 3 using a 50 50 decision rule.
• Each node function receiveds the current state and overrides it.
• The execution continues until it reaches the END node.

graph.invoke({"graph_state": "Hi, this is Lance."})
{'graph_state': 'Hi, thisis Lance. I am happy!'}
