6. Pattern Mining

1. Pattern Mining

1.1 Frequent Patterns

Definition

• frequent patterns
• they reveal hidden regularities and relationship in data

Why studying frequent pattern mining?

• association, correlation, casuality
• sequential patterns
• partial periodicity, cyclic/temporal associations

foundation for several essential data mining tasks

Type

• frequent items
  • items that occur together
  • e.g., {milk, bread}
• sequential patterns
  • items that occur in a specific order
  • e.g., smartphone $\rightarrow$ TV $\rightarrow$ IoT device
• structed patterns
  • patterns in complex data structures
  • e.g., subgraphs, subtrees, fractal

---

2. Association Rule Mining Fundamentals

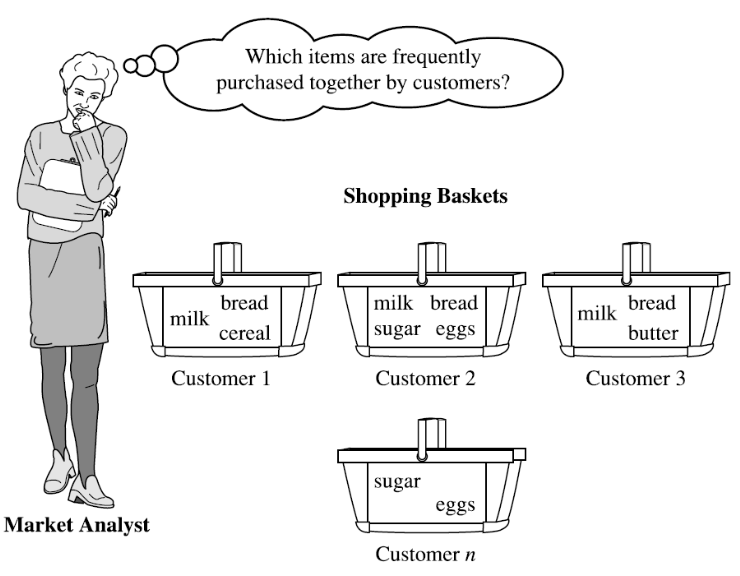

2.1 Example: Market Basket Analysis

• used to understand customer purchasing behavior by analyzing transaction data
• identify which items are frequently purchased together during a single shopping

Business Application

• 매장 배치: 자주 함께 구매되는 상품을 가까이 배치하여 매출 증대 유도 또는 멀리 배치하여 고객이 더 많은 상품을 훑어보게 함
• 프로모션: 관련 상품을 묶어서 할인 판매하는 교차 판매 전략 수립

2.2 Key Metrics for Association Rules

1. Support $s$

• how frequently both items appear together in all transactions
• $support(A \Rightarrow B) = P(A \cup B)$

합집합 기호이지만, 의미상으로는 co-occurrence를 뜻한다.

2. Confidence $c$

• indicates how likely a customer who buys a computer will also buy antivirus software
• $confidence(A \Rightarrow B) = P(B|A) = \displaystyle\frac{support(A \cup B)}{support(A)} = \frac{support\_count(A \cup B)}{support\_count(A)}$

2.3 Frequent Itemset

Notations

• $\mathcal{I} = \{I_1, I_2, ..., I_m\}$: itemset
• $D$: task-relevant data
• $T$: nonempty itemset such that $T\subseteq \mathcal{I}$
  • each transactions is associated with an identifier, called TID

Association Rule

• $A \Rightarrow B$
• an implication where $A\subseteq \mathcal{I}, B\subseteq \mathcal{I}, A\subseteq \empty, B\subseteq \empty$ and $A \cap B = \empty$

두 집합이 완전히 다른 아이템들로만 구성돼야 "A를 샀을 때 B를 살 확률이 높다"는 의미 있는 인사이트가 나온다.

Two Key Measures

1. support
   • proportion of transactions in $D$ that contain $A \cap B$
   • $support(A \Rightarrow B) = P(A \cup B)$
   • = relative support(ratio)
   • occurrence frequency = absolute support(count)

• if the relative support $\ge$ minimum support threshold, then $\mathcal{I}$ is a frequent itemset
  • the set of frequent 𝑘-itemsets is commonly denoted by $𝐿_𝑘$

2. confidence
   • proportion of transactions containing $A$ that also contain $B$
   • $confidence(A \Rightarrow B) = P(B|A)$
   • = conditional probability of $B$ given $A$

K-itemset

• an interest that contain exactly k items
• e.g., {computer, antivirus} is a 2-itemset

---

3. Association Rule Mining

3.1 Two-Step Process

1. Find all frequent itemsets

• each of these itemsets will occur at least $min\_sup$

2. Generate strong association rules

• these rules must satisfy $min\_sup$ and $min\_conf$

• why union is association rules?
  • $A \cap B = {}$ 공집합이므로 A와 B가 같이 등장하는 트랜잭션을 찾으려면 intersection$(\cap)$이 아니라 union$(\cup)$을 써야 한다.

3.2 Challenges

Combinatorial Explosion

if an itemset is frequent, all of the subsets are also frequent

• a long itemset will contain a combinatorial number of shorter frequent subitemsets
  • e.g., a frequent itemset of length 100
  • $2^{100} - 1 \approx 1.27 \times 10^{30}$
• to overcome this difficulty,
• closed frequent itemset and maximal frequent itemset

폭발적인 조합을 줄이기 위해 줄일 수 있는 건 쳐내는 prunning을 해야 한다.

---

4. Apriori Algorithm

4.1 Strategy

Key Idea

• the name "Aprior" comes from the fact the algorithm uses prior knowledge of frequent properties

Iterative Level-wise Search

• where k-itemsets are used to generate (k+1)-itemsets
• first, the database is scanned to count the occurrences of each item,
  • and those satisfying the $min\_sup$ are collected to form the set of frequent $L_1$
  • then, $L_1$ is used to generate $L_2$, which is then used to generate $L_3$, and so on, until no more frequent items can be found
  • each iteration requires a full scan of the database

4.2 Apriori Property: Antimonotonicity

Definition

• all nonempty subsets of a frequent itemset must also be frequent
• this property based on the following observations

Observation

1. if an itemset $\mathcal{I}$ does not satisfy $min\_sup$, then $\mathcal{I}$ is not frequent
   • $P($\mathcal{I}$) < min\_sup$
2. if an item $A$ is added to $\mathcal{I}$, then the resulting itemset cannot occur more frequently than $\mathcal{I}$

아이템이 늘어날수록 조건이 더 까다로워지니까 등장 횟수는 줄어들거나 같을수밖에 없다. $\mathcal{I}$가 이미 not frequent하다면, 거기에 아이템을 추가해도 not frequent하다.

Antimonotonicity

• if a set cannot pass a test, all of its supersets will fail the same test as well
• e.g., {milk, bread} $\rightarrow$ support = 0.1 ($min\_sup$ = 0.3) $\rightarrow$ not frequent

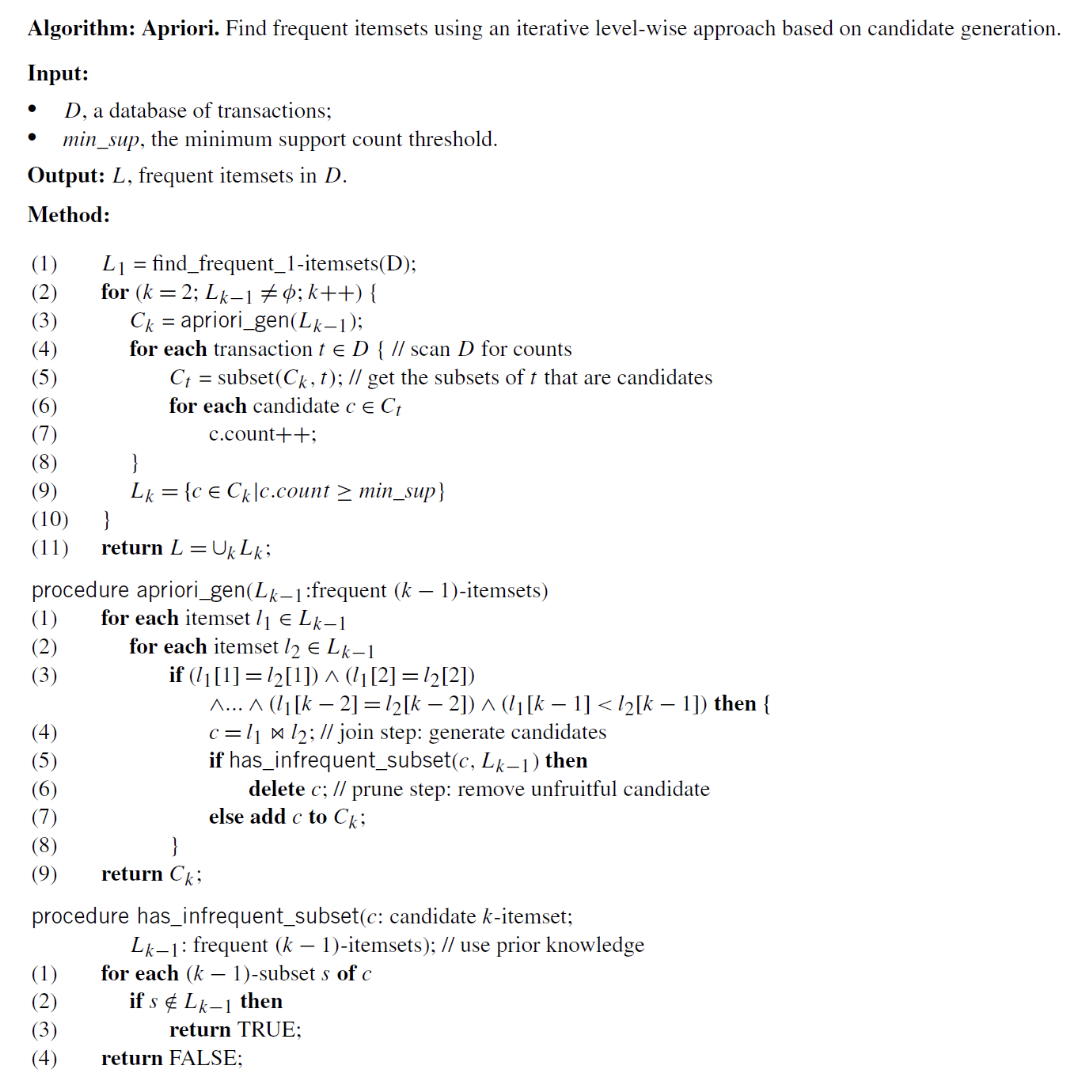

4.3 Core Steps of Apriori

새로운 후보군을 만들고(join), 불필요한 것을 쳐내는(prune) 과정이다.

1. Join Step $\bowtie$

• generate candidate k-itemsets $C_k$ by self-joining the frequent (k-1)-itemsets $L_{k-1}$
  • their first (k-2) items are identical

두 개의 셋을 합칠 때, 앞부분은 똑같고 마지막 한 아이템만 서로 달라야 한다.

• key point
  • itemsets are sorted in lexicographic order
  • only valid combinations are generated
  • duplicate candidates are avoided

2. Prune Step

• candidate set $C_k$ may be large
  • many candidates are not frequent
• for each candidate k-itemset (using antimonotonicity)
  • check all (k-1)-subsets
  • if any (k-1) subset is not frequent $\rightarrow$ remove the candidate

if a subset is not frequent $\rightarrow$ the superset cannot be frequent
