Threads

Are Processes Enough?

Possible scenarios

• A server with many clients (e.g. webserber)
  • process: context switching -> overhead
• A powerful computer with many CPU cores

Problems with Processes

Process creation is heavyweight (i.e. slow)

• Space must be allocated for the new process
• fork() copies all state of the parnet to the child
  • memory access -> long time

IPC(Inter Process Communication) mechanisms are cumbersome

• Difficult to use fine-grained synchronization
• Message passing is slow
  • Each message may have to go through the kernel
  • process는 세밀한 동기화가 어렵기 때문에 Message passing을 이용해야 하는데, 이는 매우 느림

---

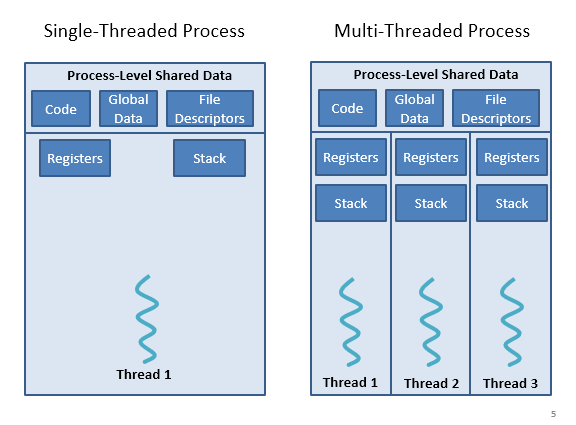

Threads : a flow of contorl

Light-weight processes that share the same memory and state space

Every process has at least one thread

Benefits

• Resoures sharing, no need for IPC
• Economy: faster to create, faster to context switch
  • address space change X -> change EIP, stack, Register
• Scalability: simple to take advantage of multi-core CPUs


---

Thread Implementations

Threads can be implemented in two ways

1. User threads

   • User-level library manages threads within a single process

2. Kernel threads

   • kernel manages threads for all processes

User Threads and Kernel Threads

User threads - management done by user-level threads library

• Three primary thread libraries
  • POSIX Pthreads (Linux, Unix)
    • in Linux, Pthread 생성하면 kernel level이 자동 생성되도록 구현됨
  • Windows threads
  • Java threads

Kernel threads - Supported by the Kernel

• Examples - virtually all general purpose operating systems, including
  • Windows
  • Solaris
  • Linux
  • Mac OS X

---

Multithreading Models

1. Many-to-One
2. One-to-One
3. Many-to-Many

Many-to-One

• Many user-level threads mappend to single kernel thread
• one thread blocking causes all to block

User thread request I/O

• OS 입장에서는 kernel thread가 I/O인 줄 알고 waiting state 처리
  -> user threads 전부 wait queue에 들어가게 됨
  => CPU wait, scheduling 대상에서 제외되는 문제 발생
• kernel thread를 지원하지 않는 OS는 process만 보이고, user-level을 여러개 생성하여 처리 -> 문제점이 많아서 현재는 native (kernel thread) 지원

• Multiple thread may not run in parallel on multi-core system because only one may be in kernel an a time
• Example
  • Solaris Green Threaads
  • GNU Portable Threads

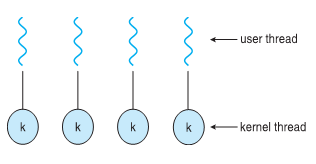

One-to-One

• Each user-level threads maps to kernel thread
• Creating a user-level thread creates a kernel thread
• More concurrency than many-to-one
• Number of threads per process sometimes restriced due to overhead
• Example
  • Windows
  • Linux
    • Pthread 하나 만들면 대응되는 kernel thread 생성
  • Solaris 9 and later


    묶을 수 있으면 multi-core이지만 완전한 light model은 아님
    address space를 공유하는 thread 생성 가능

Many-to-Many Model

• Allows many user level threads to be mapped to many kernel threads
  • user >= kernel
• Allows the operating system to create a sufficient number of kernel threads
• Solaris prior to version 9
• Windows with ThreadFiber package
  • Fiber(섬유)끼리 context switching
  • kernel thread안에 Fiber(user-level)
• blocking X -> CPU끼리, I/O끼리 사용


Two-level Model

• Similar to M:M, except that it allows a user thread to be bound to kernel thread
• Exmaples
  • IRIX
  • HP-UX
  • Solaris 8 and eariler


POSIX Pthreads

POSIX standart API for thread creation

• IEEE 1003.1c
• Specification, not implemention
  • Defines the API and the expected behavior
    Implementation is system dependent
• On some platforms, user-level threads
• On others, maps to kernel-level threads

Pthread API

• pthread_attr_init()
  • initialize the threading library
• pthread_create()
  • create a new thread
  • similar fork(), exec() 존재 x
    • address copy가 일어나지 않기 때문에 create()에서 code 채움
• pthread_exit()
  • exit the current thread
• pthread_join()
  • wait for another thread to exit : 동기화
• Pthreads also contains a full range of synchronization primitives

Pthread Example

      pthread_t tid; // id of the child thread
      pthread_attr_t attr; // initialization data
      pthread_attr_init(&attr);
      pthread_create(&tid, &attr, runner, 0);
      pthread_join(tid, 0);

void * runner(void * params) {
	…
	pthread_exit(0);
}

• create()
  • process's address space share
  • runner: 새로 생성된 스레드가 시작될 때 실행될 함수의 포인터를 넘김
  • 0: runner 함수에 넘길 parameter -> NULL

Linux Threads

In Linux, process와 thread의 명확한 구분이 없음

In the kernel, threads are just task

• Remember the task_struct from eariler?

New threads created using form clone() API

• Sort of like fork()
• Creates a new child task(not process) that copies the address space of the parent
  • Same code, same environment, etc => share space
  • New stack is allocated
  • No memory needs to be dcopied (unlike fork())

Thread Oddities

What happens if you fork() a process that has multiple threads?

• You get a child process with exactly one thread
• Whichever thread called fork() survives

What happens if you run exec() in a multi-threaded process ?

• All but one threads are killed
• exec() gets run normally
  • 새로운 거로 치환하여 원래 있던 거 전부 날아감, exec()를 부른 애는 남아서 새로운 코드 적재

Advanced Threading

Thread pools

• Create many thread in advance
• Dynamically give work to threads form the pool as it becomes available

Advantages

• Cost of creating threads in handled up-front
• Bounds the maximum number of threads in the process
  많이 만들면 overhead -> embeded, real-time처럼 overhead 발생 시 급격한 성능 저하가 발생하는 경우 사용

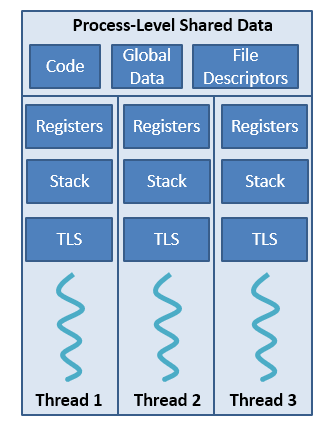

Thread Local Storage

Sometimes, you want each thread to have its own "global" data

• Not global to all threads
• Not local storage on the stack

Thread local storage(TLS) allows each thread to have its own space for "global" variables

• Similar to staic variables
• in gcc compiler, thread_local()


OpenMP

#include <omp.h>

int main() {
     int i, N = 20;
     #pragma omp parallel
     {
           printf(“I am a parallel region\n”);
     }

     # pragma omp parallel for
     for (i = 0; i < N; i++)
           printf(“This is a parallel for loop\n”);

     return 0;
}

Compiler extensions for C, C++ that adds native support for parallel programming

Controlled with parallel resions

• Automatically creates as many thread as there

Processes vs Threads

Threads are better if

• You need to create new ones quickly, on-the-fly
• You need to share lots of state

  1. multi-core 활용 가능
     • multi-core하고 싶으면 multi-thread-> but protection problem...
     • 한 thread가 잘못되면 process 전체 crash
  2. overhead down $\because$ address space share -> faster context switching

Processes are better if

• You want protection
  • One process that crashes or freezes doesn't impact the others
• You need high security
  • Only way to move state is through weel-defined, sanitized message passing interface
  • e.g. Java VM: 하나의 process가 잘못되어도 VM만 crash, OS에는 영향 x
