Virtual Memory 2

Swapping

Swap frames between physical memory and disk

Load data from swap back into memory on-demand

• If a process access a page that has been swapped out, page fault occurs
• A page-fault occurs and the instruction pauses
  • 접근하려는 게 DRAM에 없으면 오류
• The OS can swap the frame back in, insert it into the page table, and restart the instruction

옮겨서 저장 = swap write

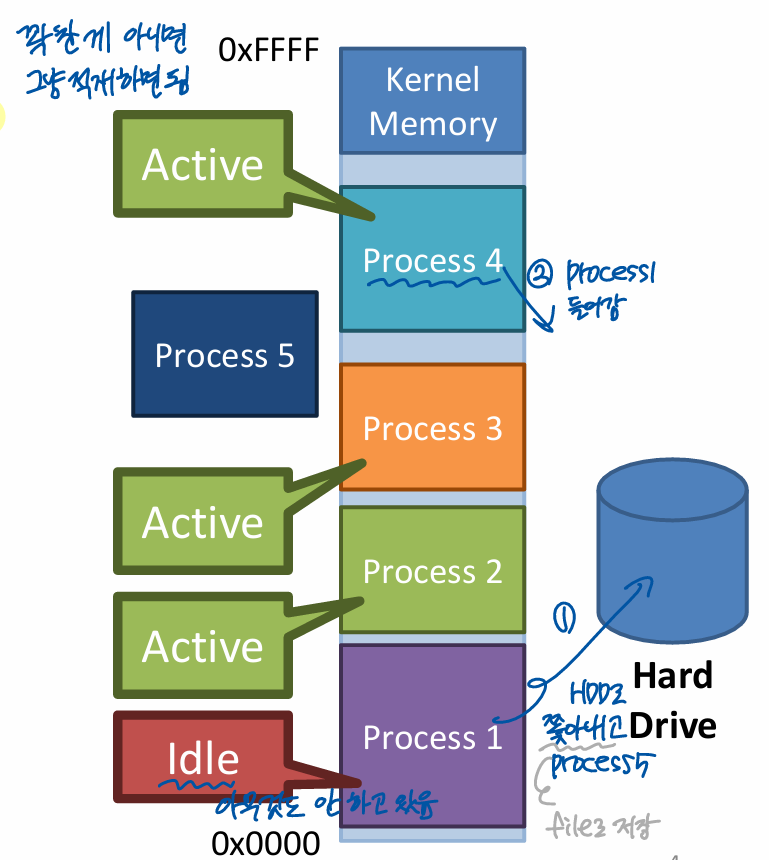

Naive E.g.

• Suppose memory is full
• The user opens a new program
• Swap out idle pages to disk
• If the idle pages are accessed, page them back in


Implementing Swap

1. Data strctures are needed to track the mapping between pages in memory and pages on disk
2. Meta-data about memory pages must be kept
   • When should pages be evicted?
   • Which page should be evicted?
3. OS's page fault handler must be modified
   • 기존에는 없는 page에 대해서만 처리했으나, swap을 위해 수정

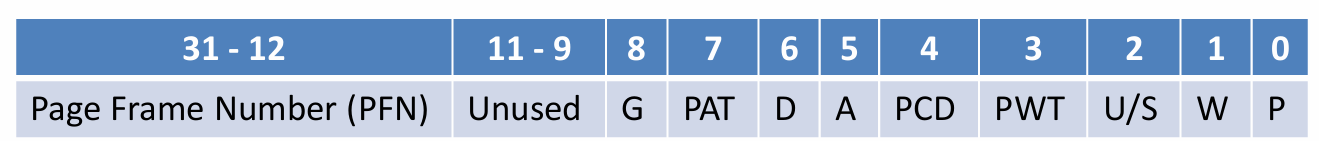

x86 Page Table Entry

• P - Present bit - is in physical memory?
  • 1 means the page is in physical memory
  • 0 means the page is valid, but swapped to disk
  • Attempts to access an invalid page or a page isn't present trigger a page fault

Present bit = 0 or invalid page이면 page fault 발생
둘 다 page fault이지만 present=0이면 memory로 다시 읽어오고, invalid이면 즉시 종료

Handling Page Fault

If the PTE is invalid, the OS still kills the process

If the PTE is valid, but present = 0

1. OS swaps the page back into memory
2. OS updates the PTE
   • TLB도 update
3. OS instructs the CPU to retry the instruction

When should the OS evict pages?

On-demand approach

• If a page needs to be created and no free pages exist,
  swap a page to disk

Proactive approach

• Most OSes try to maintain a small pool of free pages
• High watermark = threshold(e.g. 8 ~ 90)
• Once memory utilization crosses the high watermark, a background process starts swapping out pages

What pages should be evicted?

Page Replacement Policy

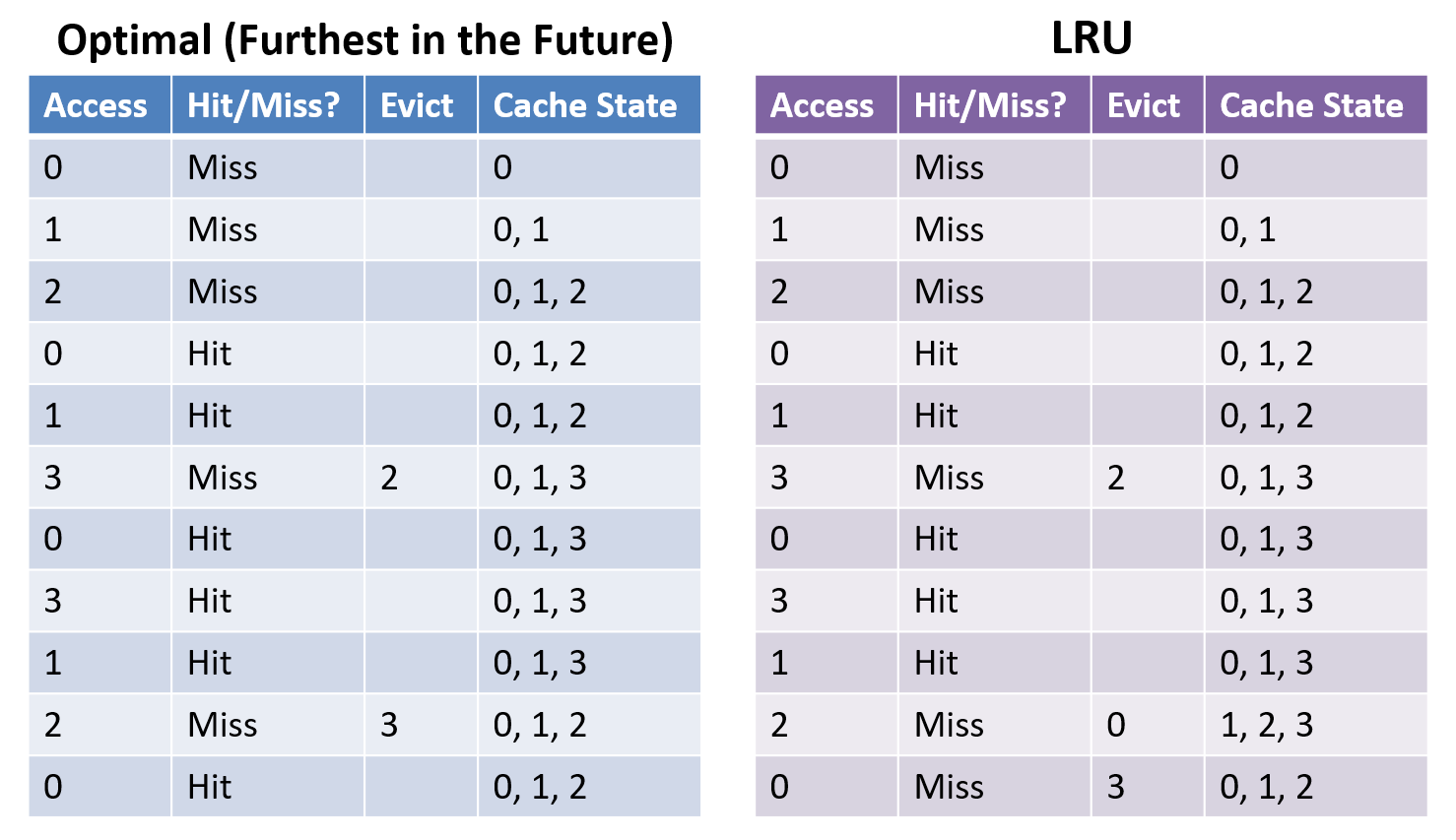

• The optimal eviction stragy
  • Evict the page that will be accessed furthest in the future
  • Unfortunately, impossible to implement (we don't know about the future)

LRU가 optimal의 2배를 넘지 않는 것이 수학적으로 증명됨
cold miss 빼면 1.5배 차이

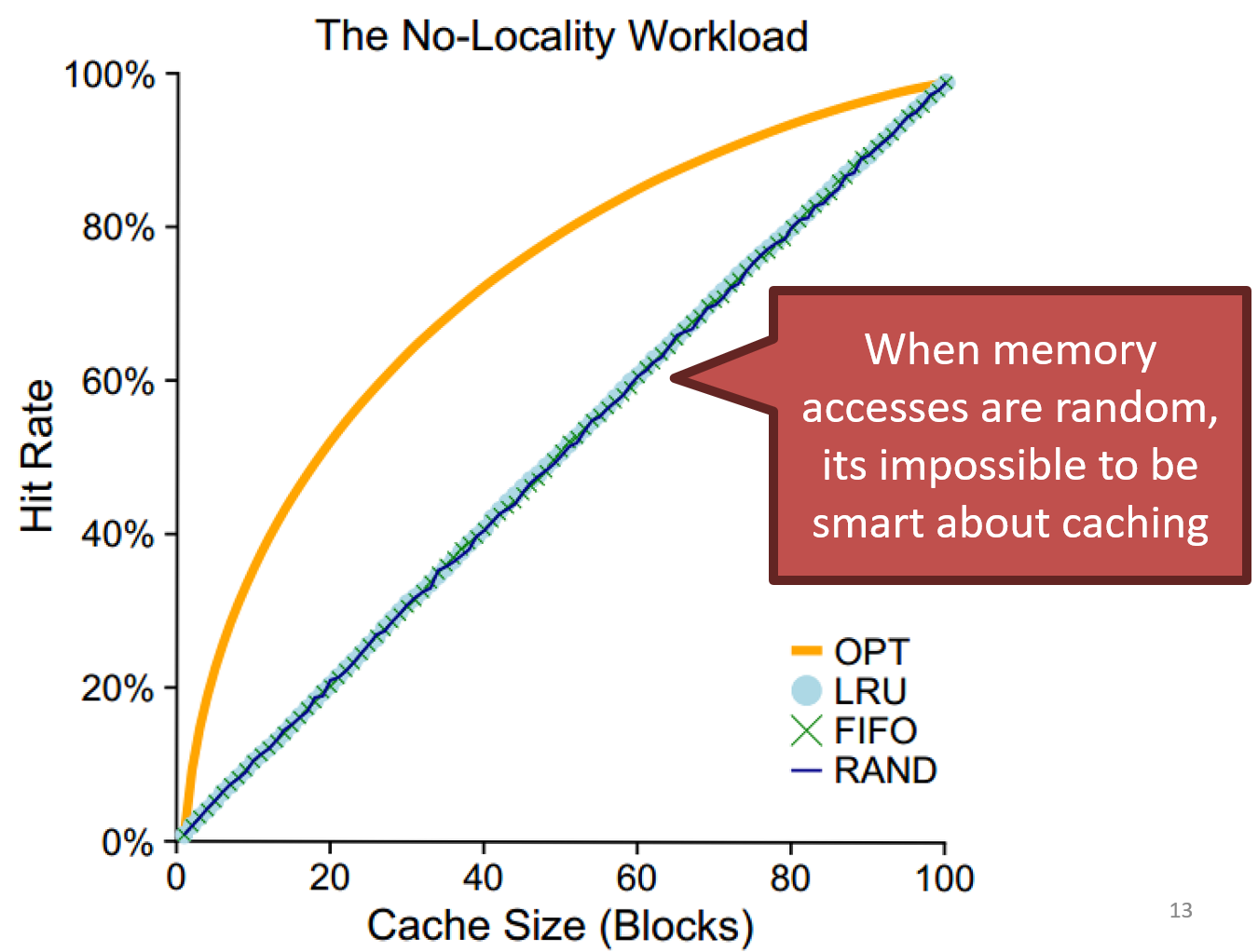

All memory accesses are to 100% random pages

• random => no locality
• only cache size dependent

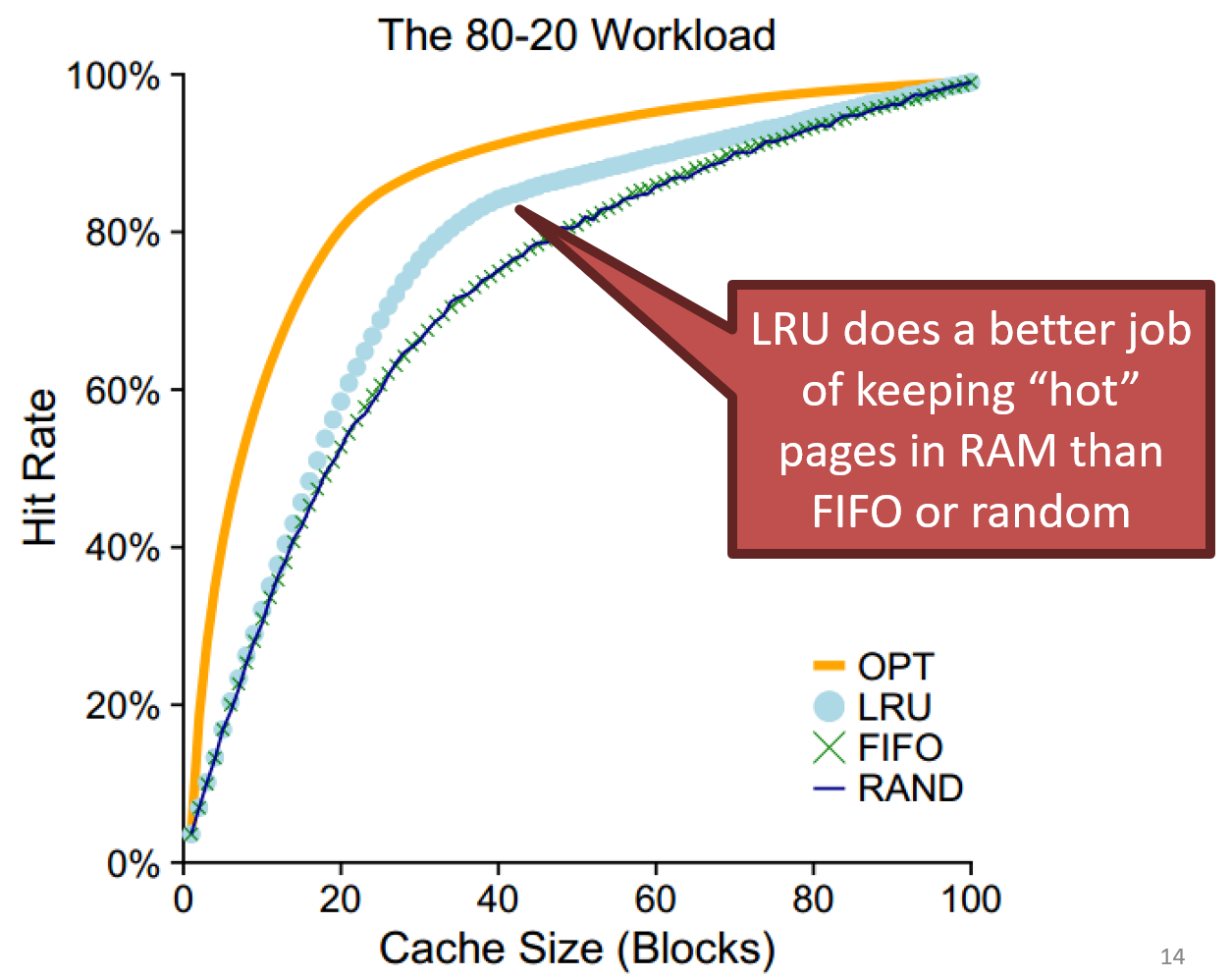

80% memory accesses are for 20% of pages

• LRU가 optimal에 가까움

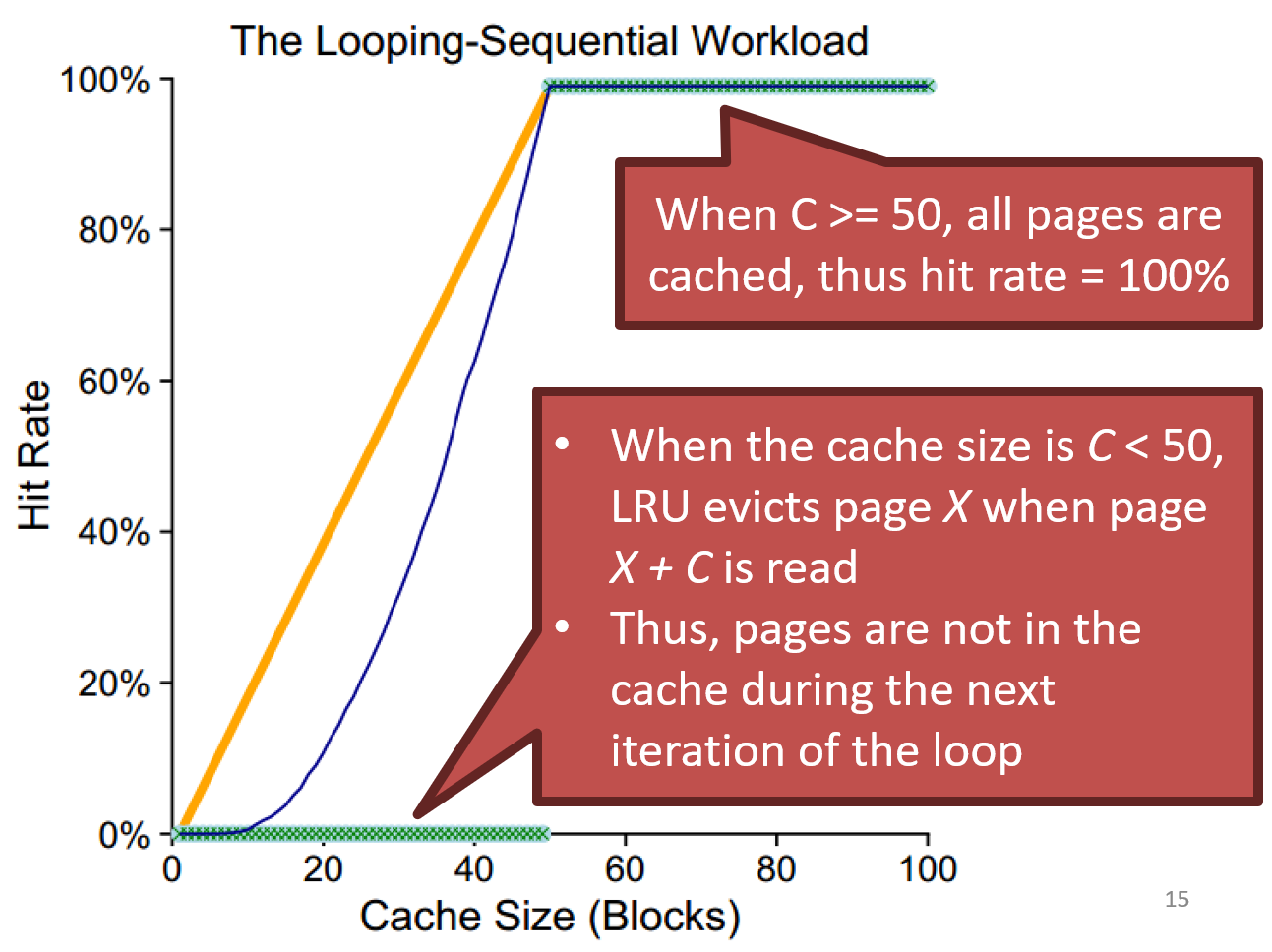

Sequential access in 50 pages, then loops

---

Implementing historical algorithms

1. Record each access to the page table
   • Additional overhead to page table lookups
2. Approximate LRU with help from the hardware

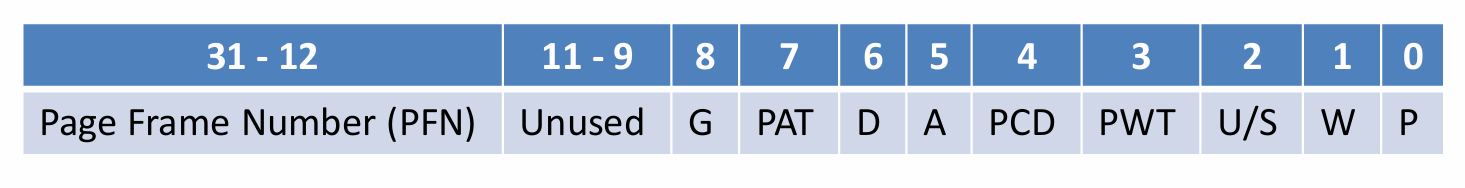

• A - accessed bit - has been read recently?
• D - dirty bit - has been written recently?
• MMU sets the accessed bit when it reads a PTE
• MMU sets the dirty bit when it writes to the page
• OS may clear these flags as it wishes

---

Approximating LRU

On eviction, LRU needs to scan all PTEs to determine which have not been used

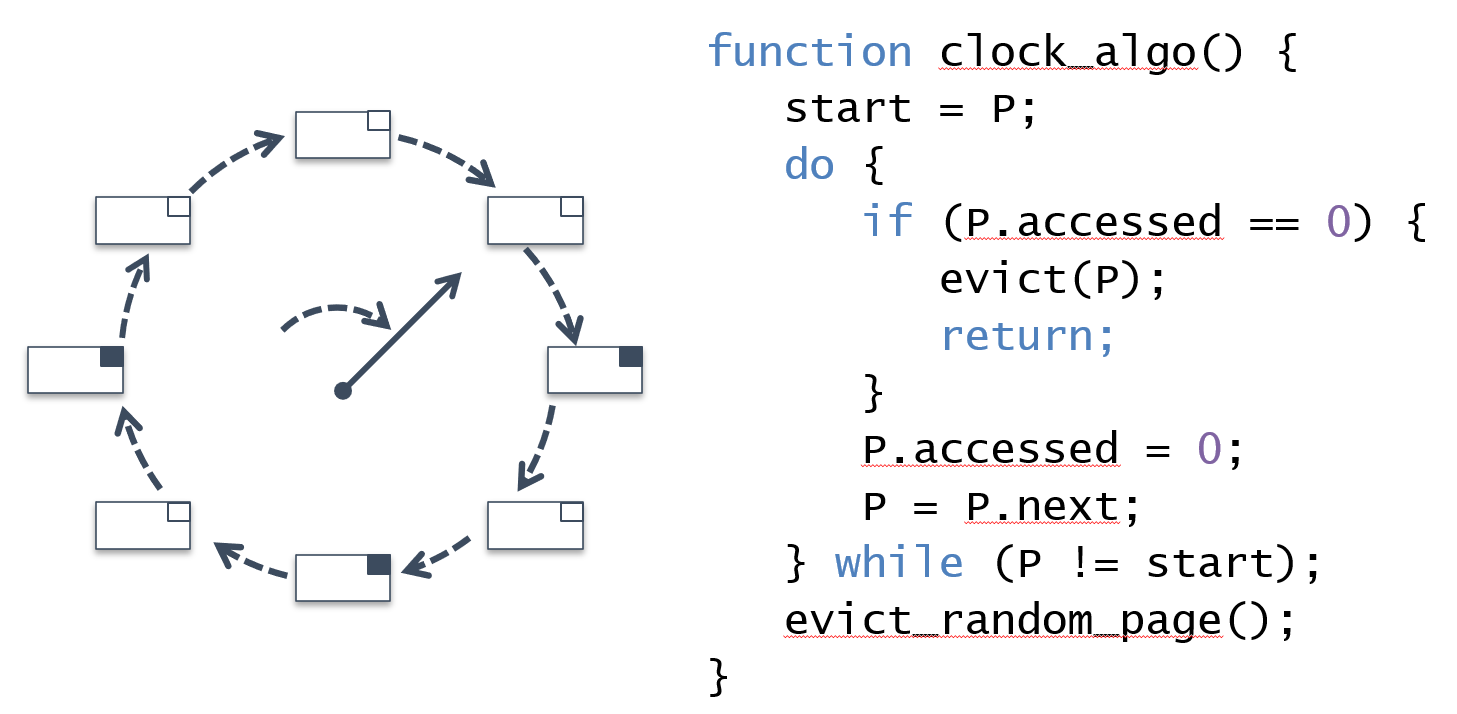

The Clock Algorithm

• If the access bit is 0, evict
• else set the access bit to 0 and pass

한 바퀴 돌면서 os가 accessed bit 0으로 만드는데, 이때 1이 되어있는 건 MMU(hw)가 access로 판단한 것으로 쫓아낼 수 없음

Incorporating the Dirty Bit

• Evict the non-dirty pages first
• When modified pages(Dirty bit is 1) are evicted, Dirty pages must always be written to disk

dirty bit가 다르다는 건 변동사항이 존재한다는 것, disk에 기록해야 함

RAM as cache

• RAM can be viewed as a high-speed cache for your large-but-slow spinning disk storage
• Ideally, you want the most important things to be resident in the cache (RAM)

RAM은 느리지만 HDD에 비하면 high-speed-cache
