[LDAP] LDAP Authentication with MariaDB

#1. Environment

• Server 1 (ESXi): OpenLDAP -> slapd 2.5.17, Ubuntu 22.04.4
• Server 2 (VirtualBox): MariaDB -> 10.11.8-MariaDB, Ubuntu 22.04.4

---

#2. Server 세팅

apt update

## MariaDB 관련 패키지
apt install mariadb-server libmariadb-dev mariadb-client

## LDAP 관련 패키지
apt install libldap2-dev libpam-ldap libnss-ldap ldap-utils nslcd

## PAM 관련 패키지
apt install libpam0g-dev


## MariaDB Security Setting
mysql_secure_installation


## Install LDAP auth Plugin
apt install libmariadb-dev
apt install libldap2-dev
apt install libpam-ldap libnss-ldap nslcd


## MariaDB PAM Plugin 활성화
## /etc/mysql/mariadb.conf.d/50-server.cnf
[mysqld]
plugin-load-add=auth_pam


## /etc/pam.d/mariadb 파일 생성
auth    required      pam_ldap.so
account required      pam_ldap.so


## /etc/ldap.conf (LDAP 서버 설정에 맞게 작성)
base dc=example,dc=com
uri ldap://[IP]
ldap_version 3
rootbinddn cn=admin,dc=example,dc=com


## /etc/nsswitch.conf
passwd:		files ldap systemd sss
group:		files ldap systemd sss
shadow:		files ldap systemd sss


## restart
systemctl restart mariadb


## DB 접속
mysql -u root -p


## Database, table, user 생성
CREATE DATABASE ldap_db;

CREATE TABLE users (
	id INT AUTO_INCREMENT PRIMARY KEY,
	username VARCHAR(50) NOT NULL UNIQUE,
	email VARCHAR(100) NOT NULL UNIQUE,
	password VARCHAR(255) NOT NULL,
	created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

CREATE USER 'ldap_user'@'localhost' IDENTIFIED VIA pam USING 'mariadb';
GRANT ALL PRIVILEGES ON database_name.* TO 'ldap_user'@'localhost';
FLUSH PRIVILEGES;

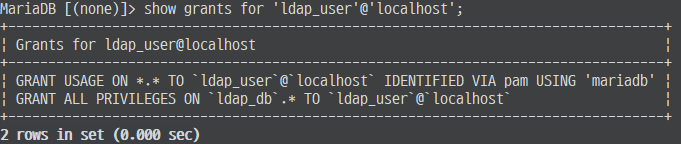

## 권한 설정
GRANT ALL ON ldap_db.* TO 'ldap_user'@'localhost';
flush privileges;

---

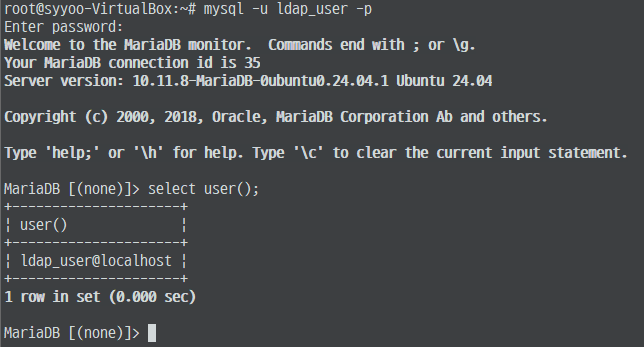

#3. 접속 테스트

mysql -u [LDAP_USER_NAME] -p

📌 LDAP_USER_NAME은 LDAP 서버에 실제 존재하는 사용자 이름이어야 하고, MariaDB에서도 생성되어 있어야 한다.

---

🤗
