4.1 Basics of color

Basics of color

Primary colors of light

• Blue
• Green
• Red

Secondary colors of light

• Magenta(red + blue)
• Yellow(red + green)
• Cyan(green + blue)

Achromatic(무채색) colors of light

• Without color
• The ratio of each color component is same

---

Color Models

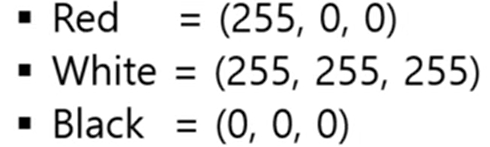

RGB

• R,G,B-Channel
• When the intensity level of each channel is [0,255]

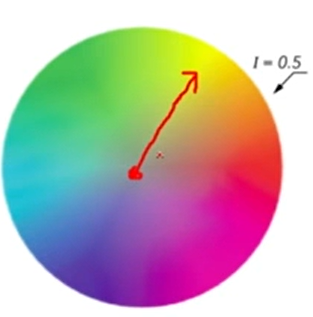

HSI

• Consists Hue(색조),Saturation(채도),Intensity(밝기)-channel
• Intensity(Brightness) : achromatic notion of intensity(large value of I -> bright)
• Hue : the dominant wavelength in a mixture of light waves
• Saturation : the relative purity or the amount of white light mixed(large value of S -> clear)

• Intensity value는 세로축의 높이와 비례!


• Hue value는 intensity value가 정해졌을 때의 높이를 단면으로 잘랐을 때 각도

• Saturation value는 Hue value가 정해졌을 때 거리

---

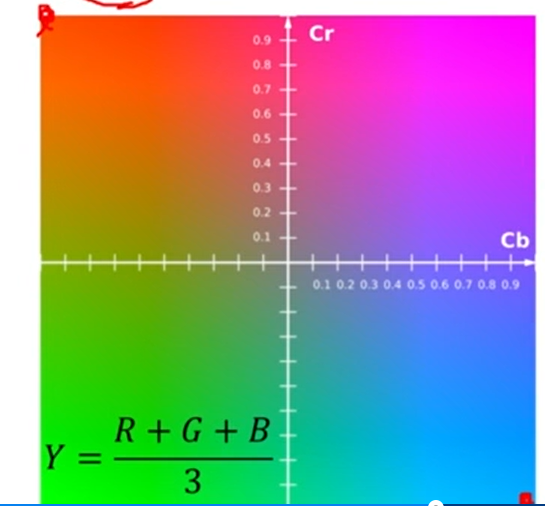

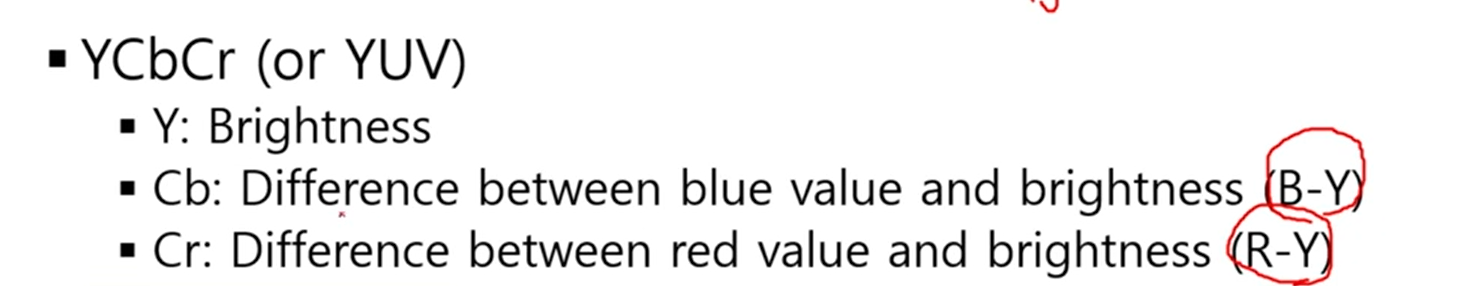

YCbCr

---

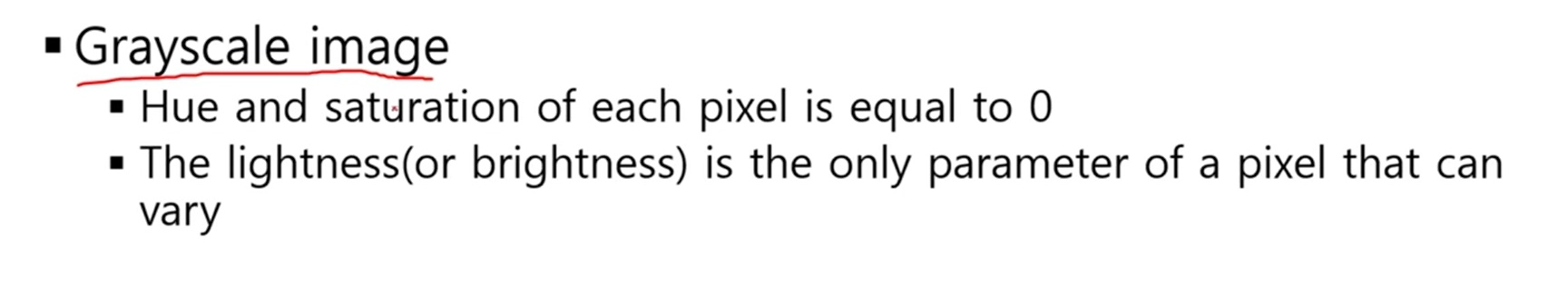

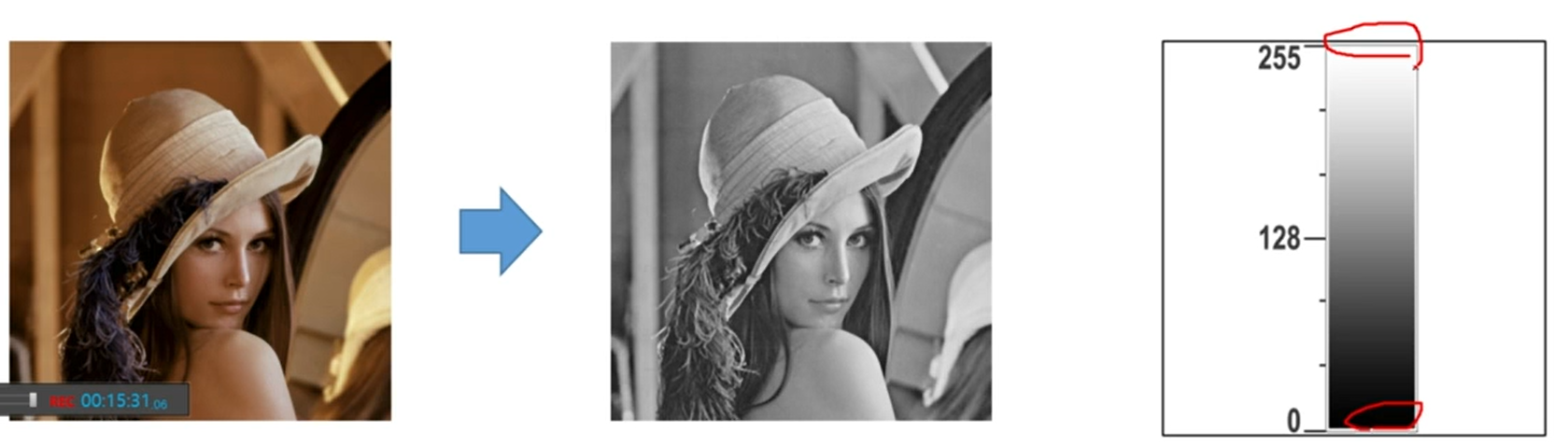

###Graysacle Image

---

Color Processing

##Converting color space into
