Lec 2-Threads

Problems with Processes

Possible scenarios

• A server with many clients
• A computer with many CPU cores

Problems with Processes

Process creation is heavyweight

• Space must be allocated for the new process
• fork() copies all state of the parent

IPC (Inter Process Communication) is cumbersome

• Each message have to go through the kernel

Each process has independent address space
$\Rightarrow$ Doesn't share memory
$\Rightarrow$ Different processes can't point the same address space

---

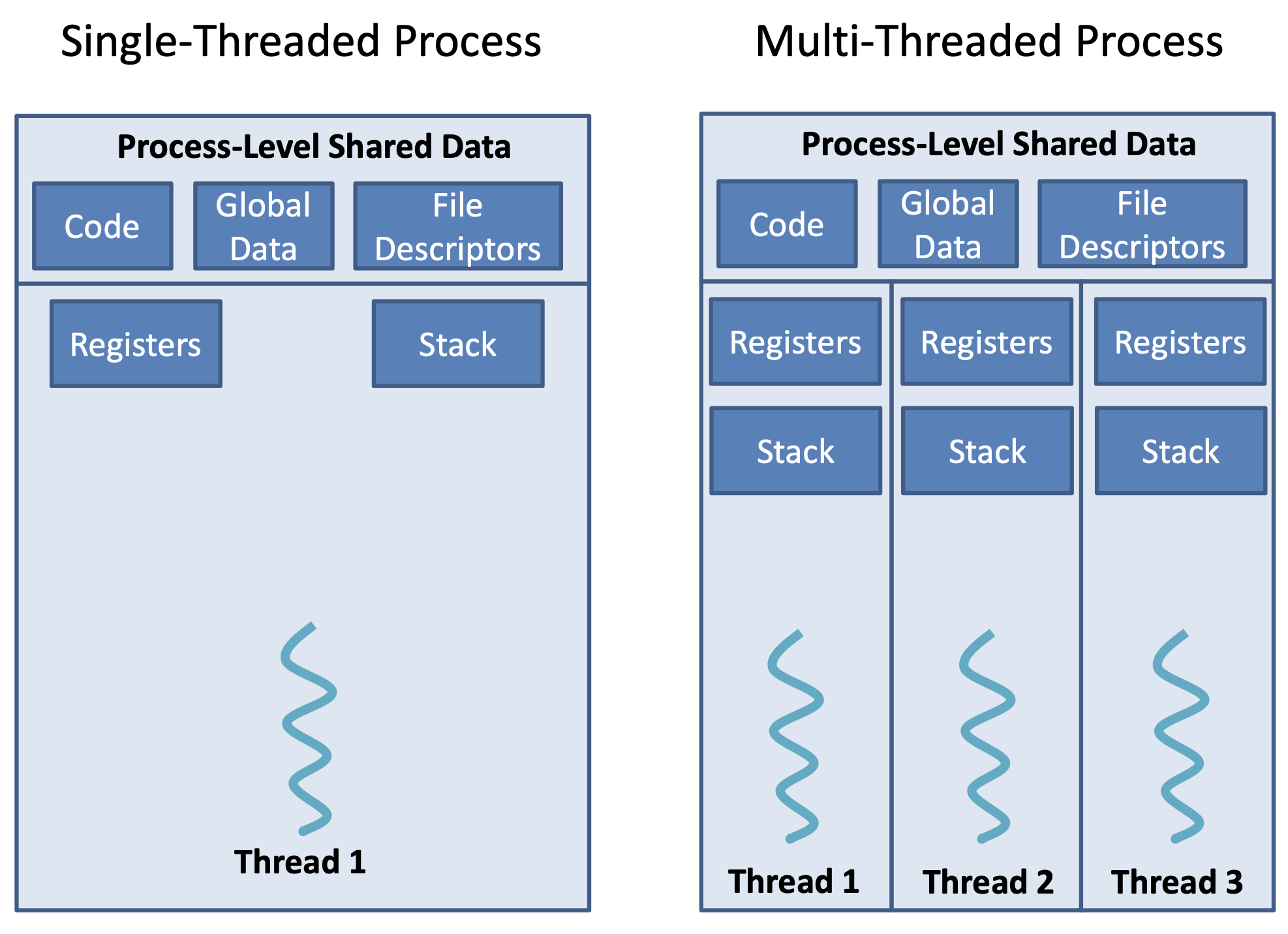

Threads

Threads

Light-weight processes that share the same memory(= address space)

Every process has at least one thread

Benefits

• Resource sharing, no need for IPC
• Faster to create, context switch
  • Context switch between the different threads within a process
    doesn't change the address space, but the IP, Stack, Reg vals
• Simple to use the multi-core CPU

• Registers and Stack is context, so they are required for each thread

---

Thread implementations

1. User threads

• User level library manages threads
  • POSIX Pthreads, Windows threads, Java threads

2. Kernel threads

• Kernel manages threads
  • Windows, Linux, Mac OS

Multithreading models

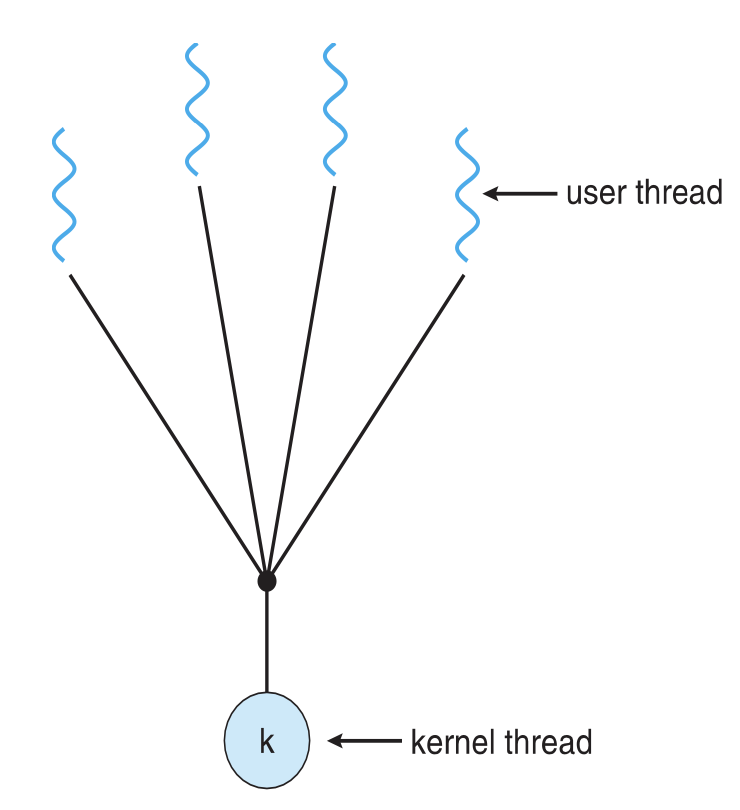

Many to One

• Many user level threads mapped to single kernel thread
• One thread blocking causes all to block
  • e.g.) User thread request I/O
    $\rightarrow$ From the OS's view, the kernel requested I/O
    $\rightarrow$ Send the kernel thread to wait Queue
    $\rightarrow$ Other user threads can't run
• Multiple threads may not run in parallel on multicore
  because only one may be in kernel at a time

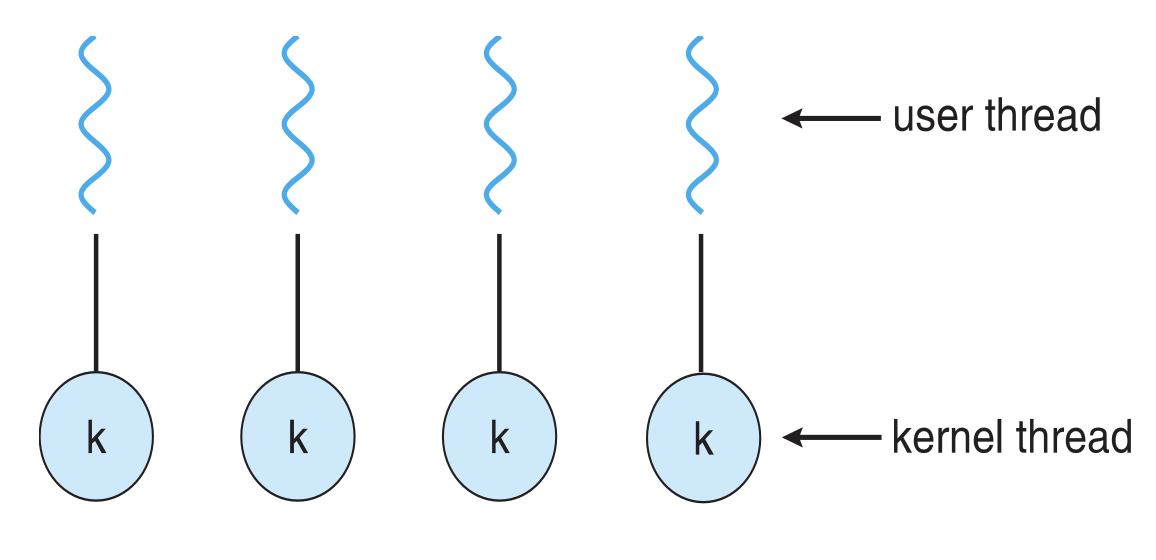

One to One

• Each user level thread maps to kernel thread
• Creating a user level thread creates a kernel thread

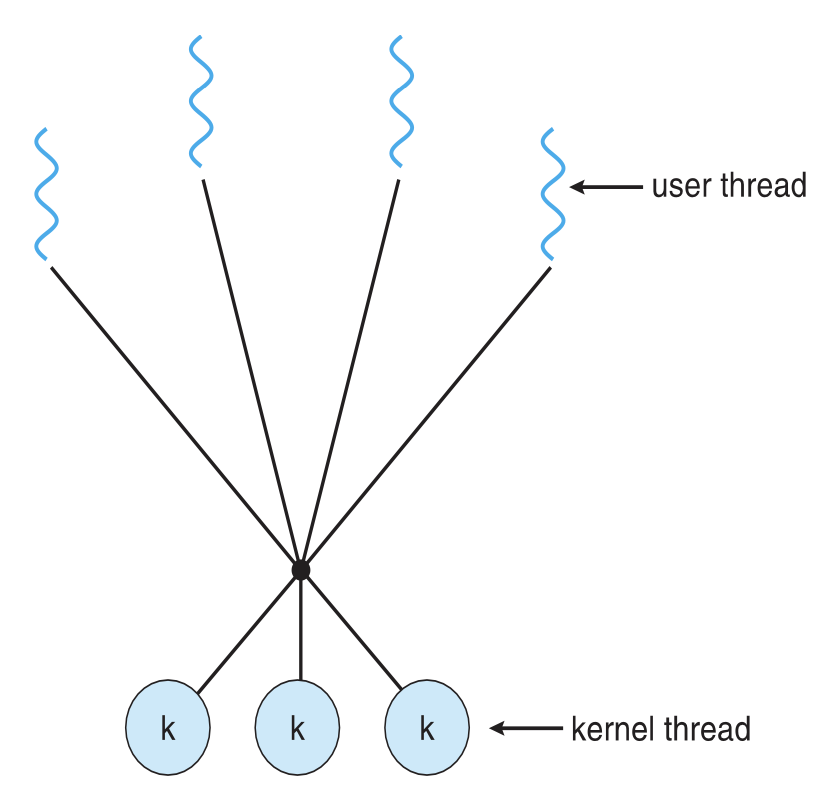

Many to Many

• Many user level threads map to many kernel threads
• # kernel threads $\leq$ # user threads
• Not to be One to One, so can save kernel resource

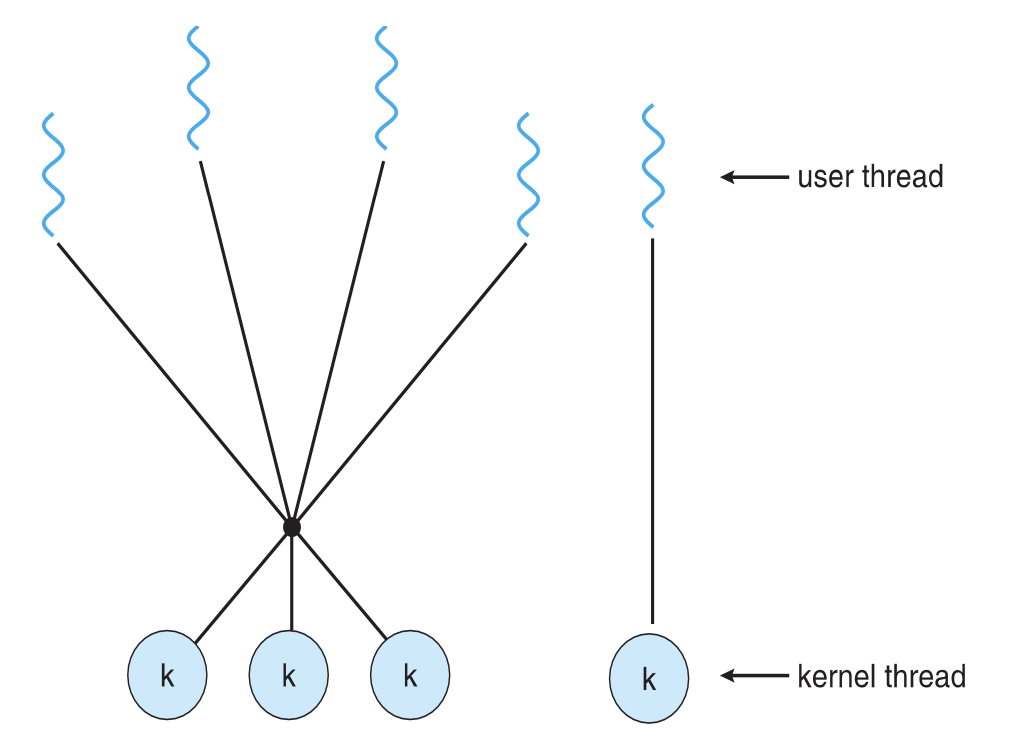

Two level model

• Similar to M:M, allows a user thread to be bound to kernel thread


---

POSIX Pthreads

Specification, not implementation

Implementation is system dependent

• On some platforms, user level threads
• On others, maps to kernel level threads

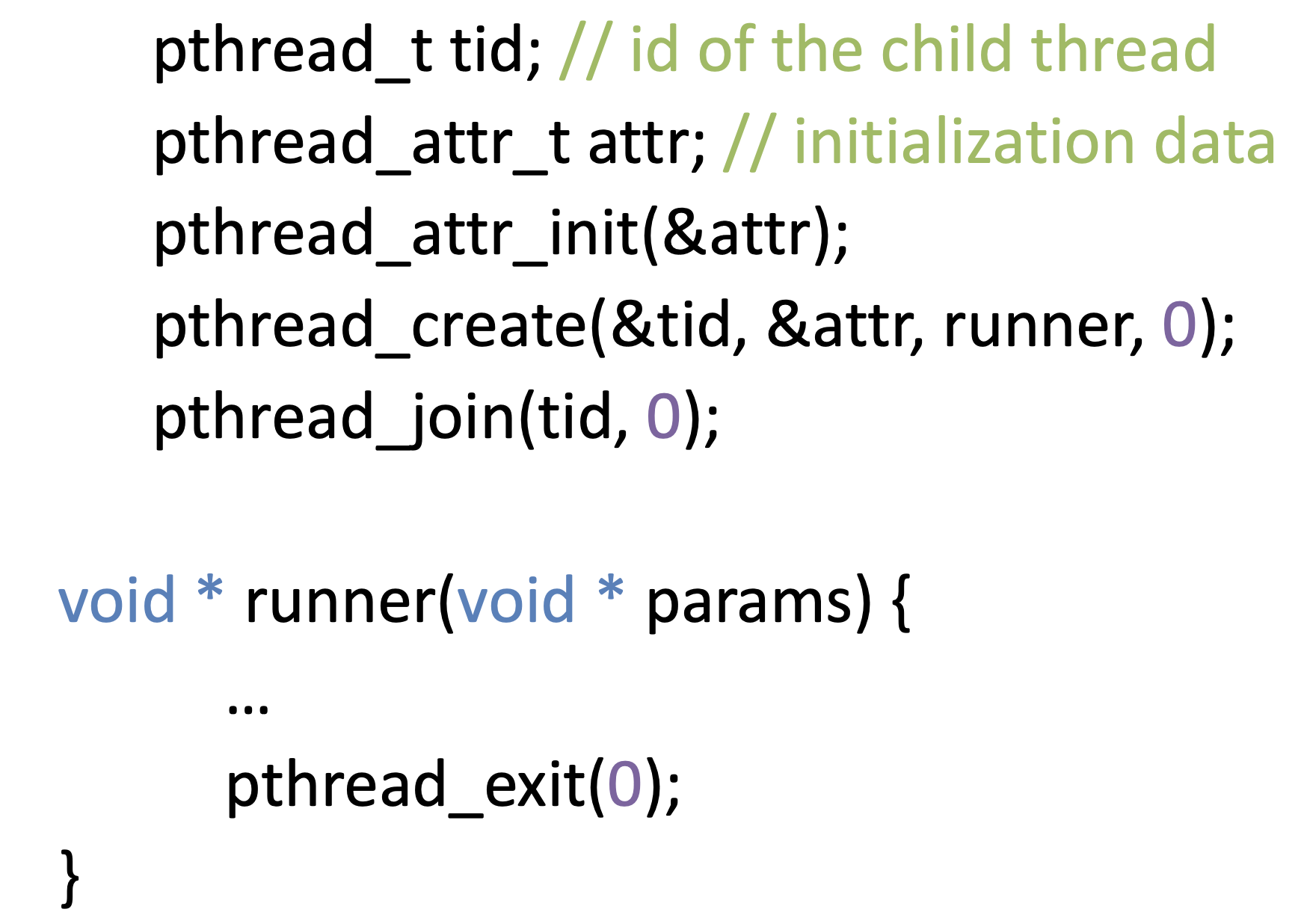

Pthread API

pthread_attr_init()

• initialize the threading library

pthread_create()

• create a new thread
• get the code to be executed as an argument (runner in the above fig)

pthread_exit()

• exit the current thread

pthread_join()

• wait for another thread to exit

---

Linux Threads

How to create new threads

New threads created using the clone() API

• Create a new child task that copies the address space of the parent
  • Same code, same env
  • New stack is allocated
  • No memory needs to be copied (unlike fork())

Thread oddities

What happens if you fork() a process that has multiple threads

• Get a child process with exactly one thread (called fork())

What happens if you run exec() in a multiple threaded process

• All but one threads are killed
  • exec() change the program(= code data) being run by the current process
    $\rightarrow$ previous threads can't be runned

---

Advanced Threading

Thread pools

• Create many threads in advance
• Dynamically give work to threads from the pool

Advantages

• Cost of creating threads is handled up-front
• Bounds the maximum number of threads in the process

---

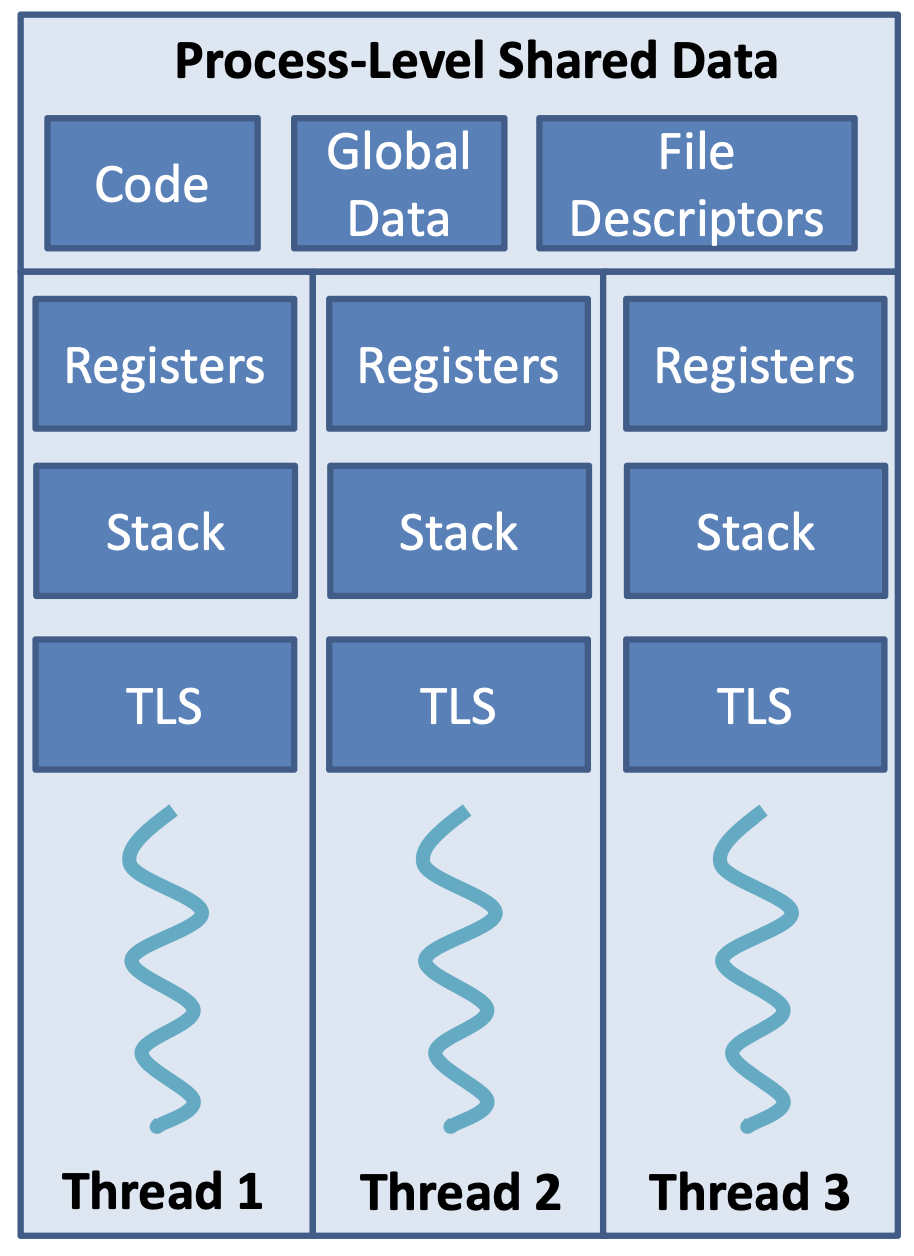

TLS: Thread Local Storage

• Not global to all threads
• Not local storage on the stack

Each thread can have its own space for "global" variables
Similar to static variables

---

OpenMP

• Compiler extensions for C, C++ for parallel programming

---

Process vs Threads

Threads are better if

• Need to create new ones quickly
• Need to share lots of state

Processes are better if

• Need protection
  • One process that crashes doesn't impact the others
• Need high security
