Lec 3-Scheduling(1)

Basics

Setting

Assumption

• N CPUs, P process/threads

Questions needed to be addressed

• In what order should the process be run?
• On what CPU should each process run?

Focus on scheduling in case of 1 CPU

---

Factors Influencing Scheduling

Characteristics of the process

• I/O bound or CPU bound
  • CPU bound means the process is CPU intensive tasks
• Any metadata about the process
  • If we have deadlines, we can take into account when scheduling
• Predictable?
  • If the running time is predictable, we can take into account

Characteristics of the machine (Hardware + OS)

• #CPUs
• Can we preempt process?

Characteristics of the user

• Interactive? (desktop apps (mouse, keyboard))

---

Basic Scheduler Architecture

Scheduler selects from the ready processes

Scheduling decisions are made when a process

• No preemption

1. Switches from running to waiting
2. Terminates

• Preemption

3. Switches from running to ready
   • e.g. yield
4. Switches from waiting to ready
   • After I/O finish

---

Dispatch Latency

Dispatcher gives control of the CPU to the process selected by the scheduler

• Switches context
• Switching to/from kernel mode/user mode
• Saving the old EIP, loading the new EIP

Dispatching incurs a cost

• Context switching and mode switch are expensive
  • Memory accessing is high-cost

Minimizing process switching is advantegeous

---

Note on Process & Thread

Process and thread are equivalent for scheduling purposes

SCS: System-contention scope

• Kernel supports threads = kernel threads

PCS: Process contention scope

• Kernel does not support threads = user threads
• Each process handles it's own thread scheduling

---

Basic Process Behavior

Process alternate between working and waiting

• Work -> CPU burst
• Processes vary I/O bound or CPU bound
  so that make scheduler designing difficult

---

Scheduling Optimization Criteria

Max CPU utilization

• Keep the CPU as busy as possible

Max throughput

• # of processes that finish over time
• Min turnaround time: amount of time to finish a process (Arrival ~ Completion)
• Min waiting time: amount of time a ready process has been waiting (Waiting time in ready queue)
• Turnaround time - Waiting time = Execution time

Maximizing CPU utilization and maximizing throughput are independent

• If a process with a very long CPU usage time occupies,
  CPU utilization goes up, but throughput goes down

Min response time

• amount of time between submitting a request and receiving a response (Arrival ~ Execute)
  • Cliking a button and Seeing a response

Fairness

• All processes receive min/max fair CPU resources
• If one thread occupy CPU less than the other,
  Process completion time will increase

---

Classic Schedulers

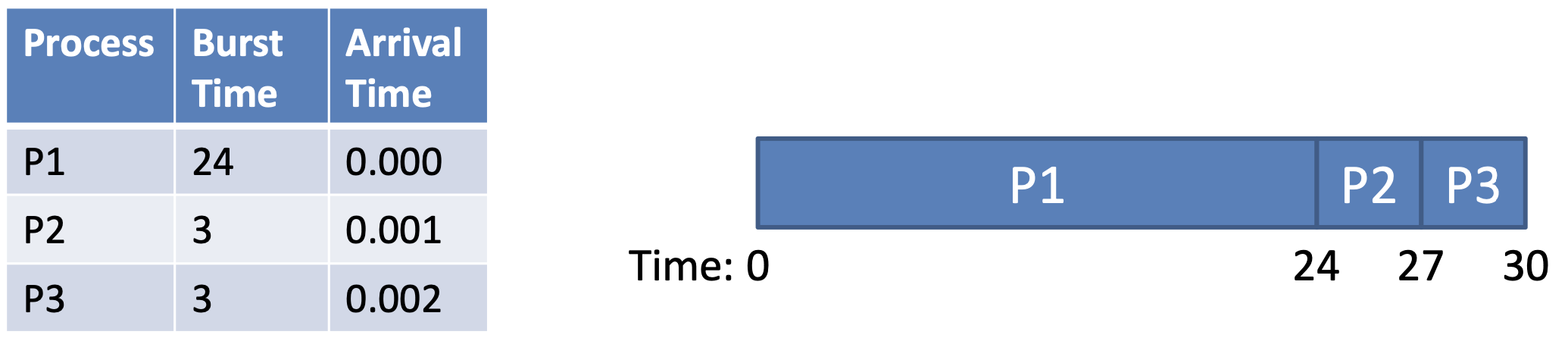

FCFS: First Come, First Serve

Processes stored in a FIFO queue

• Served in order of arrival

Turnaround time = completion time - arrival time

• P1 = 24, P2= 27, P3=30
• Average turnaround time: $(24+27+30)/3 = 27$

Convoy Effect (= Head-of-line Blocking)

• Long process can impede short processes
• Serving a process that has long burst time leads to long turnaround time

---

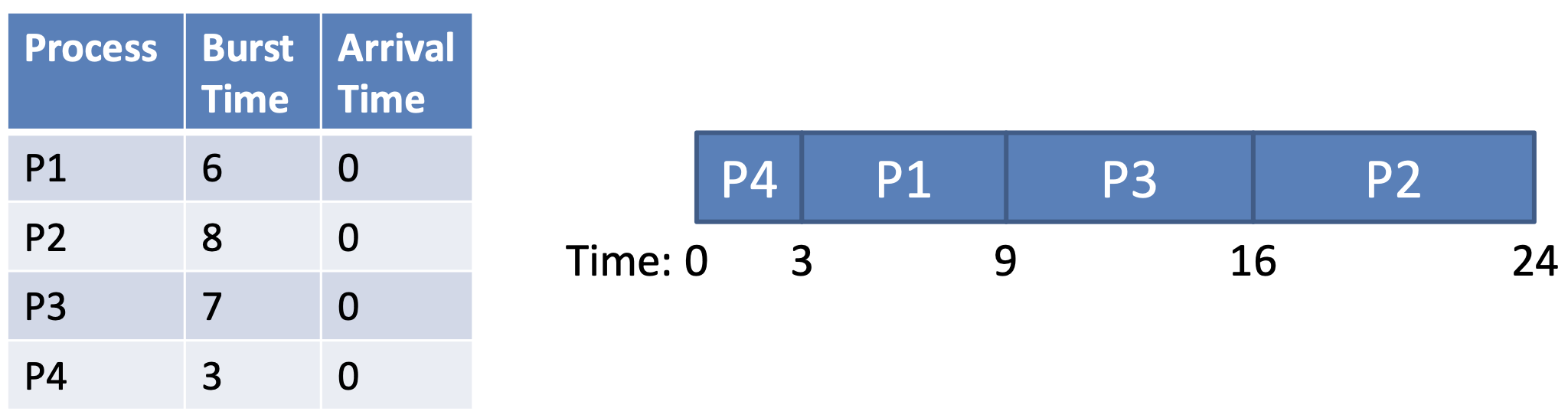

SJF: Shortest Job First

Schedule process based on the length of next CPU burst time

• Shortest processes go first

Turnaround time = completion time - arrival time

• Average turnaround time: $(3+9+16+24)/4 = 13$

SJF is optimal: guarantees minimum wait time

---

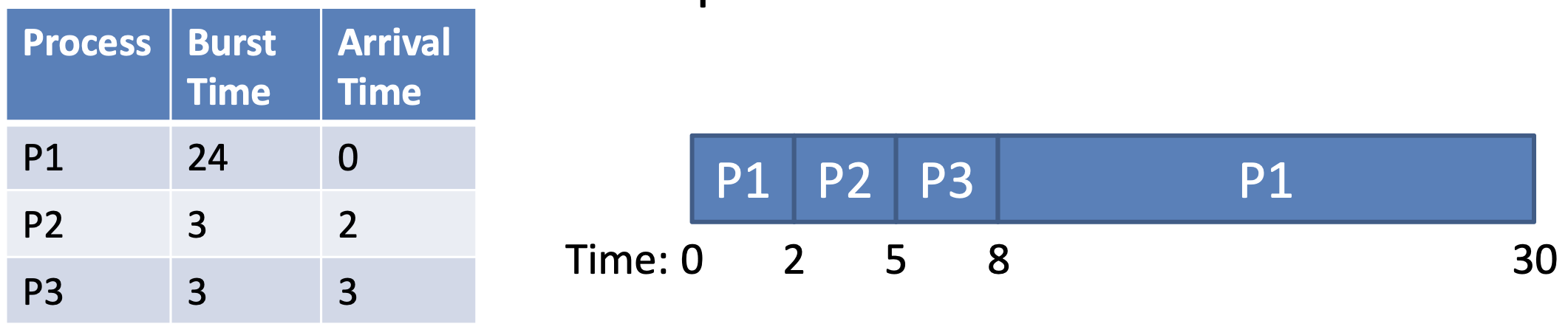

STCF: Shortest Time-To-Completion First

= PSJF: Preemptive SJF or SRTF: Shortest Remainig-Time First

Process with long bursts can be context switched out short processes

• At time 2, Compare 22(P1) with 3(P2)
• Average turnaround time: $(30+3+5)/3=12.7$

STCF is also optimal (among Preemptive scheduling)

• Assuming we know future CPU burst times

---

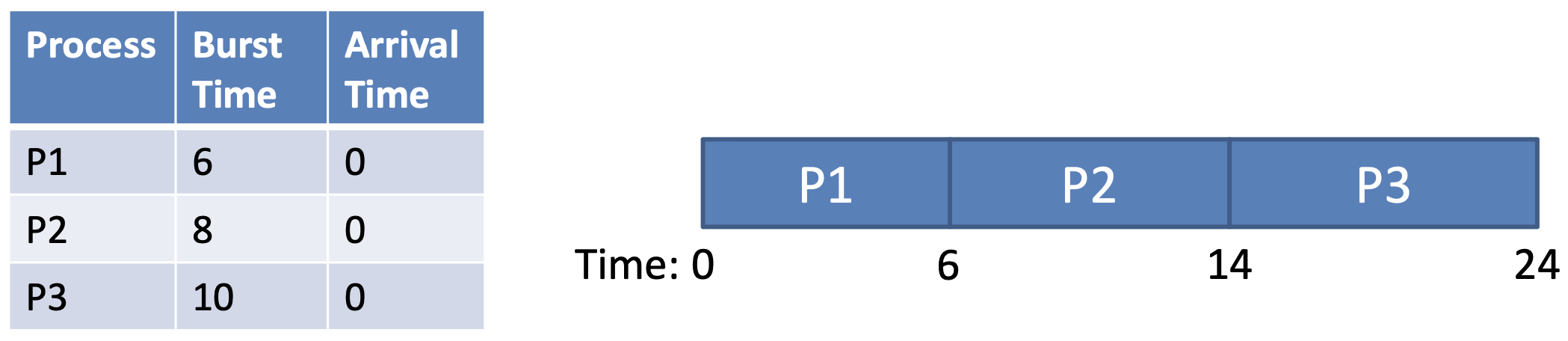

Interactive Systems

Typing / Clicking in a desktop app

• User doesn't care about turnaround time
• User Does care about responsiveness

Response time = First run time - arrival time

Average turnaround time: $(6+14+24)/3 = 14.7$
Average response time: $(0+6+14)/3 = 6.7$

---

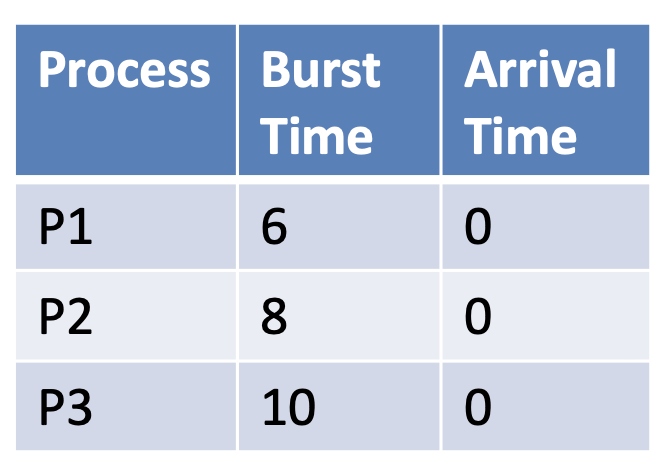

RR: Round Robin (=Time slicing)

RR is designed to reduce response times

• RR runs jobs for a time slice (= scheduling quantum)

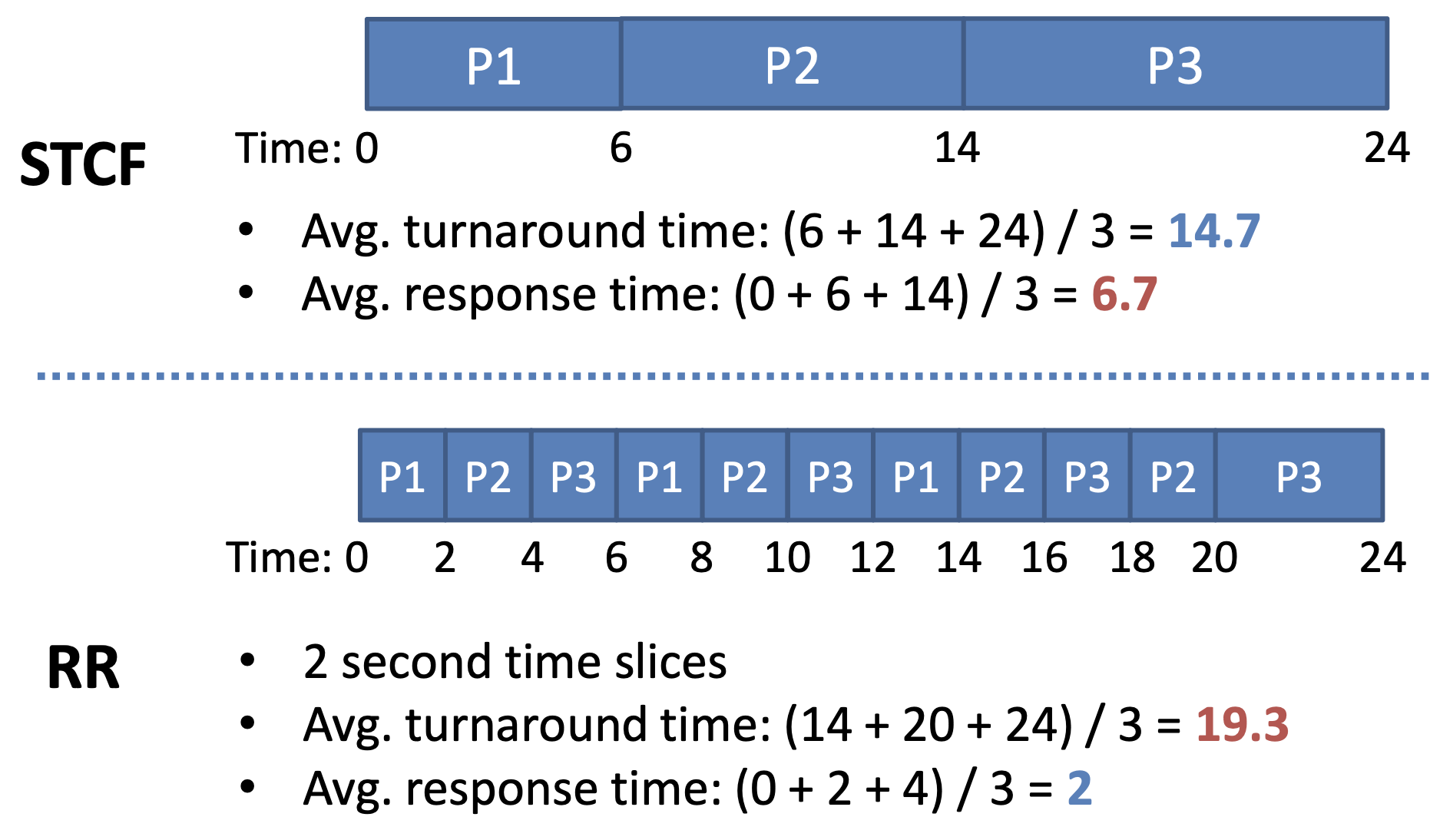

RR vs STCF

• No process waits more than $(N-1)Q$ time slices
  • Case) # processes N=3, time slice Q=2
    The last process P3 waits for (3-1)2 = 4

Tradeoffs

	RR	STCF
Response time	Good response time	Bad response time
Turnaround time	Worst possible (Q is large $\rightarrow$ FIFO behavior)	Achieves optimal, low turnaround times
Fairness	Achieves fairness	Unfair
# Context Switch	Many times	A few times

Selecting the Time Slice

• Smaller time slices = faster response times
• Advance on hardware spawns a tiny time slice
• Context switching overhead
  • Context switch wastes CPU time
  • If time slice is too short, context switch overhead will dominate
• This results in another trade off
