[Unity] Coin Collection Animation [ + UI Tool Kit ](3)

저번에 만든 코인 Reward Effect에 DOTween을 적용해서 코인이 올라가는 효과를 구현해보자. 먼더 Uxml의 Label을 연결해서 text를 수정해주는 코드를 추가해준다.

UIScreenController.cs

using UnityEngine;
using UnityEngine.UIElements;

public class UIScreenController : MonoBehaviour
{
    [Header("UI Elements")]
    [Tooltip("UI Document")]
    [SerializeField] UIDocument m_Document;
    [SerializeField] Button m_CoinButton;
    [SerializeField] Button m_ResetButton;
    [SerializeField] Label m_CoinLabel;

    VisualElement root;

    private const string coinButtonID = "Button--Coin";
    private const string coinResetID = "Button--Reset";
    private const string coinLabelID = "Label--Coin";

    private const string coinSequenceId = "CoinSeq";

    void OnEnable() {
        root = m_Document.rootVisualElement;
        m_CoinButton = root.Q<Button>(coinButtonID);
        m_ResetButton = root.Q<Button>(coinResetID);
        m_CoinLabel = root.Q<Label>(coinLabelID);

        m_CoinButton.RegisterCallback<ClickEvent>(OnClickCoinButton);
        m_ResetButton.RegisterCallback<ClickEvent>(OnClickResetButton);

        CoinEvents.CoinUpdate +=  OnUpdateCoinText;
    }

    void OnDisable() {
        m_CoinButton.UnregisterCallback<ClickEvent>(OnClickCoinButton);
        m_ResetButton.UnregisterCallback<ClickEvent>(OnClickResetButton);

        CoinEvents.CoinUpdate -=  OnUpdateCoinText;
    }

    void OnClickCoinButton(ClickEvent evt) {
        Vector2 clickPos = new Vector2(evt.position.x, evt.position.y);

        Vector2 screenPos = clickPos.GetScreenCoordinate(root);


        Debug.Log($"[UIScreenController] OnClickCoinButton : clickPos ({clickPos.x}, {clickPos.y})");
        Debug.Log($"[UIScreenController] OnClickCoinButton : screenPos ({screenPos.x}, {screenPos.y})");

        CoinEvents.CoinButtonClick?.Invoke(screenPos);

        GameDataManager.AddCoin();
    }

    void OnUpdateCoinText(int CoinValue) {
        m_CoinLabel.text = CoinValue.ToString();
    }

    void OnClickResetButton(ClickEvent evt) {
        return;
    }
}

위에서 보다 싶이 CoinEvents에 Coin Update 액션을 추가해놨다.

CoinEvents.cs

using System;
using UnityEngine;

public static class CoinEvents
{
    // Click the Button on UI Document
    public static Action<Vector2> CoinButtonClick;
    public static Action<Vector2> ResetButtonClick;

    // Update Coin Text
    public static Action<int> CoinUpdate;

}

Coin의 데이터를 가지고 Coin의 값을 추가해주는 GameDataManager 스크립트를 하나 추가작성해준다.

GameDataManager.cs

using System;
using UnityEngine;

public static class CoinEvents
{
    // Click the Button on UI Document
    public static Action<Vector2> CoinButtonClick;
    public static Action<Vector2> ResetButtonClick;

    // Update Coin Text
    public static Action<int> CoinUpdate;

}

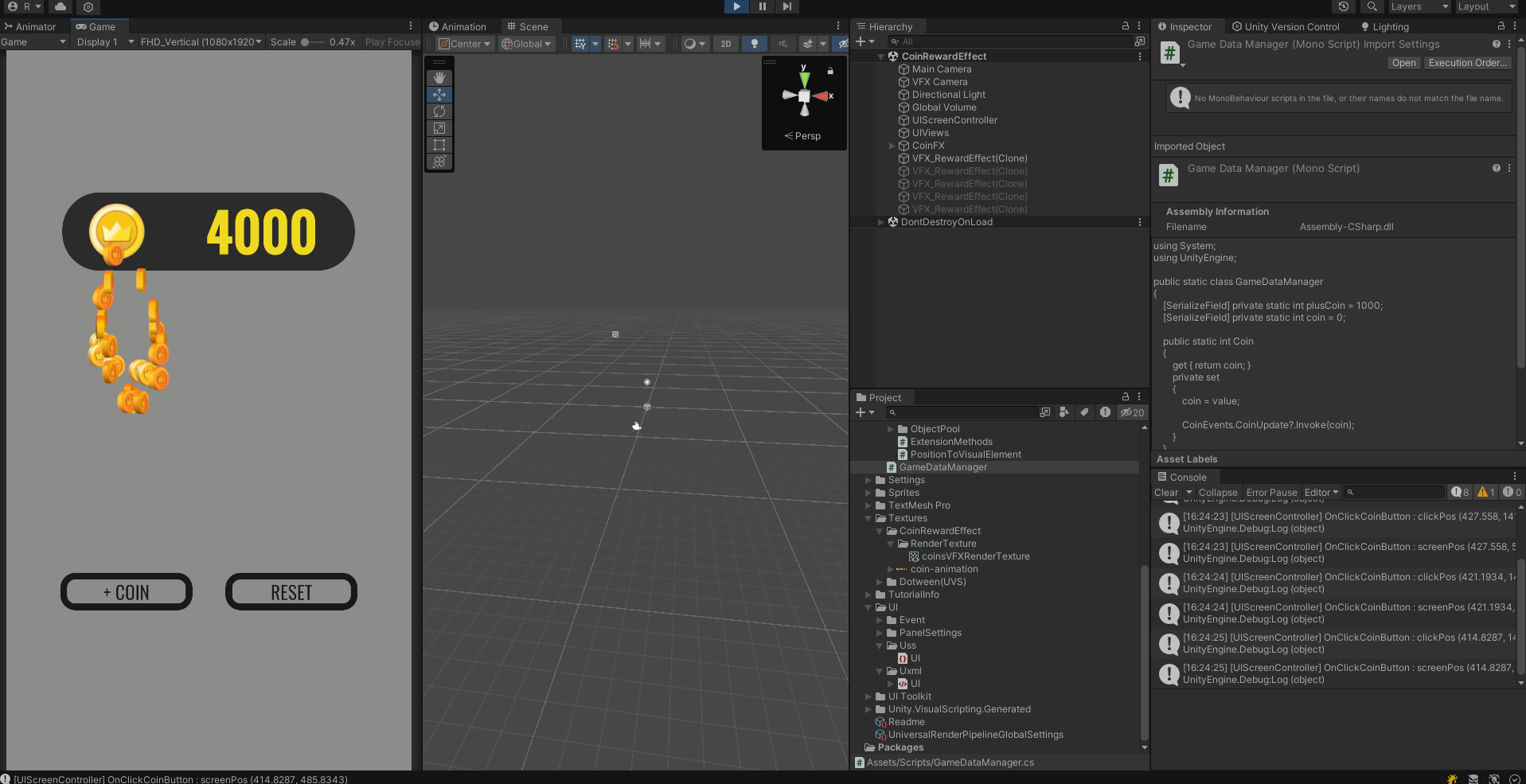

누를 때마다 값이 잘 늘어난다.

DOTween을 지원하는지를 아직 잘 몰라서 추후에 확인해서 한 번 바꿔보자.
