Lec 4-Virtual Memory(2)

Virtual memory Implementations

Base and Bound Registers

Maps a contiguous virtual address region to a contiguous physical address region

• Add BASE value to virtual address

Protection and Isolation

• If translated address is bigger than BASE + BOUND,
  then Raise Protection Exception

Implementation details

• BASE and BOUND are protected
  • Only code in Ring 0 can modify BASE and BOUND
  • Prevents processes from modifying their BASE and BOUND
• Each CPU has one BASE and BOUND register
  • BASE and BOUND must be saved and restored during context switch

Advantages

• Simple implementation
• Processes can be loaded at arbitrary fixed addresses
• Protection and Isolation

Limitations

• Processes can overwrite their own code
• No sharing memory
  • Even executing same process, load all process on memory
• Process memory cannot grow dynamically
  • Lead to internal fragmentation

---

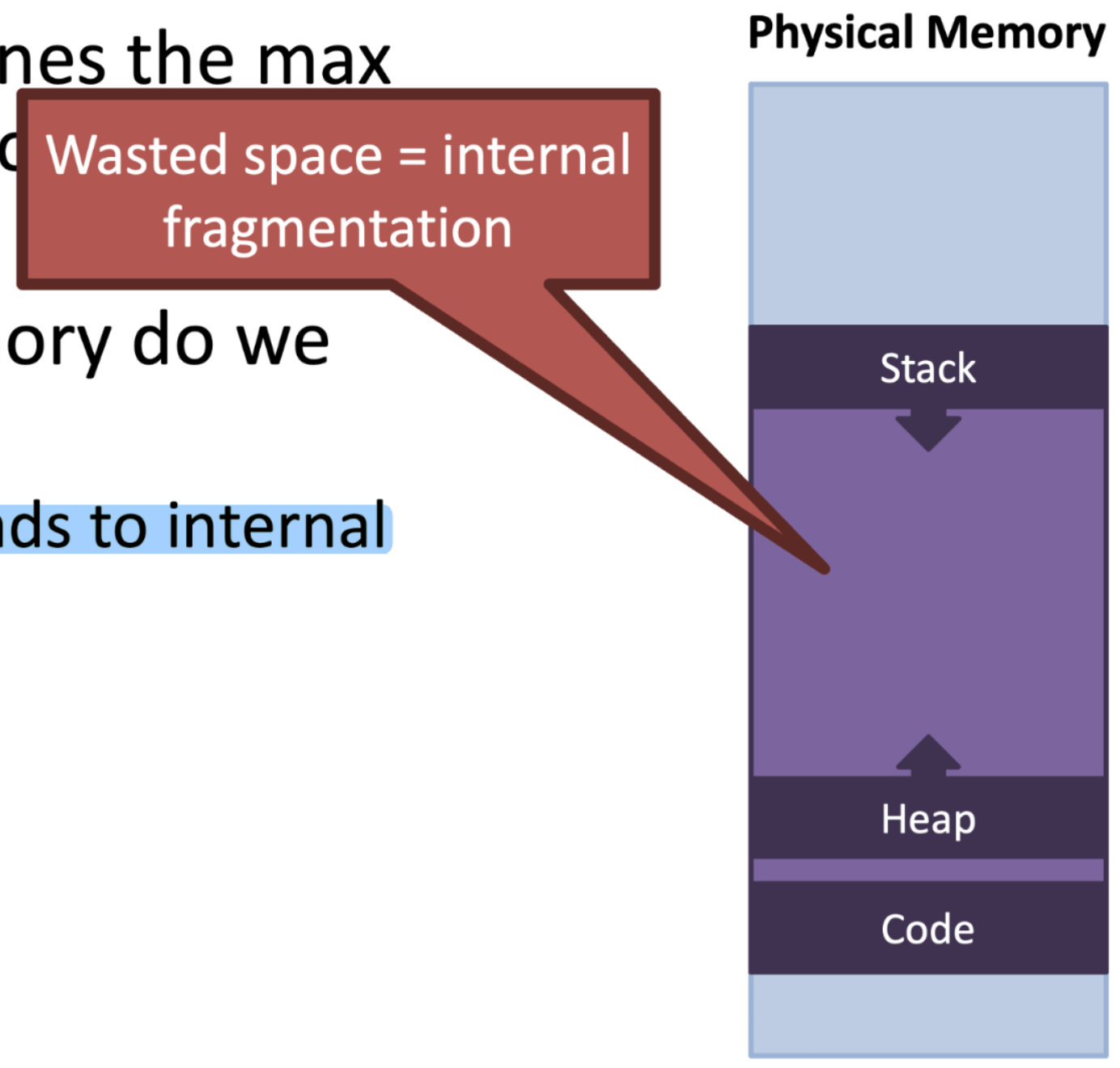

Internal Fragmentation

• Empty space leads to internal fragmentation

• What if we don't allocate enough?

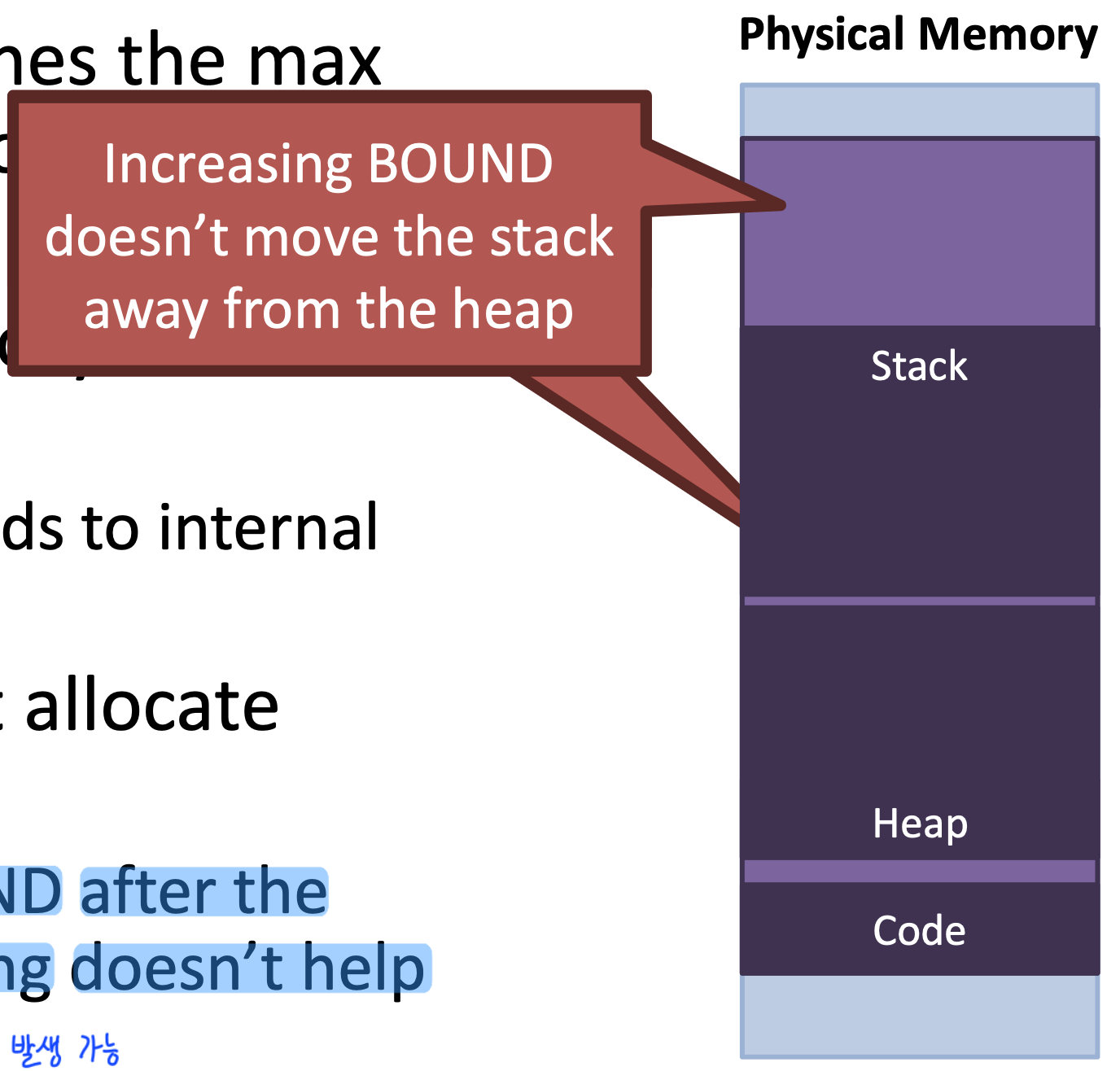

  • Increasing BOUND after the process is running doesn't help
  • It doesn't move the stack from the heap

---

Segmenation

Having a single BASE and BOUND means

• Code, stack and heap are all in one memory region
  • Leads to internal fragmentation
  • Prevents dynamically growing the stack and heap

Idea

• Give each process several pairs of base/bounds
• Each pair = Segment

Details

• A process get split into several segments
  • Support >3 segments per process (code, heap and stack)
• Each process views its segments as a contiguous region of memory
  • But in physical memory, segments can be placed in arbitrary locations

Segments and Offsets

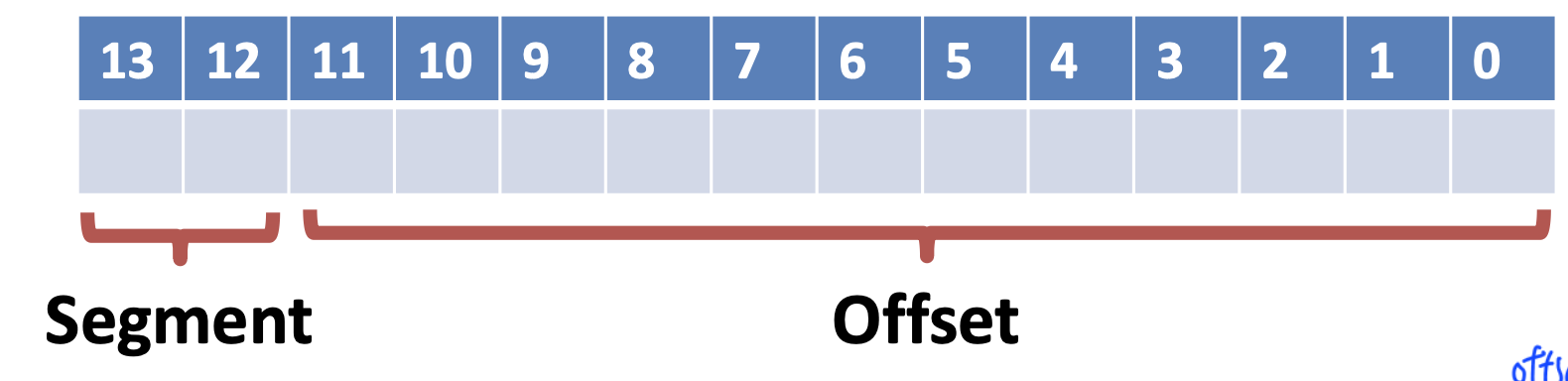

• Split virtual addresses into a segment indes and an offset
• Ex) 14-bit addresses

  • Segment size is $2^{12}=$ 4KB
  • 4 possible segments per process

Separation

• OS manages segments and indexes
  • Creates segments for new processes
  • Builds a table mapping segments indexes to base address and bounds
  • Swaps out the tables and segment registers during context switches
  • Free segments when process is terminated
• CPU translates virtual address to physical address

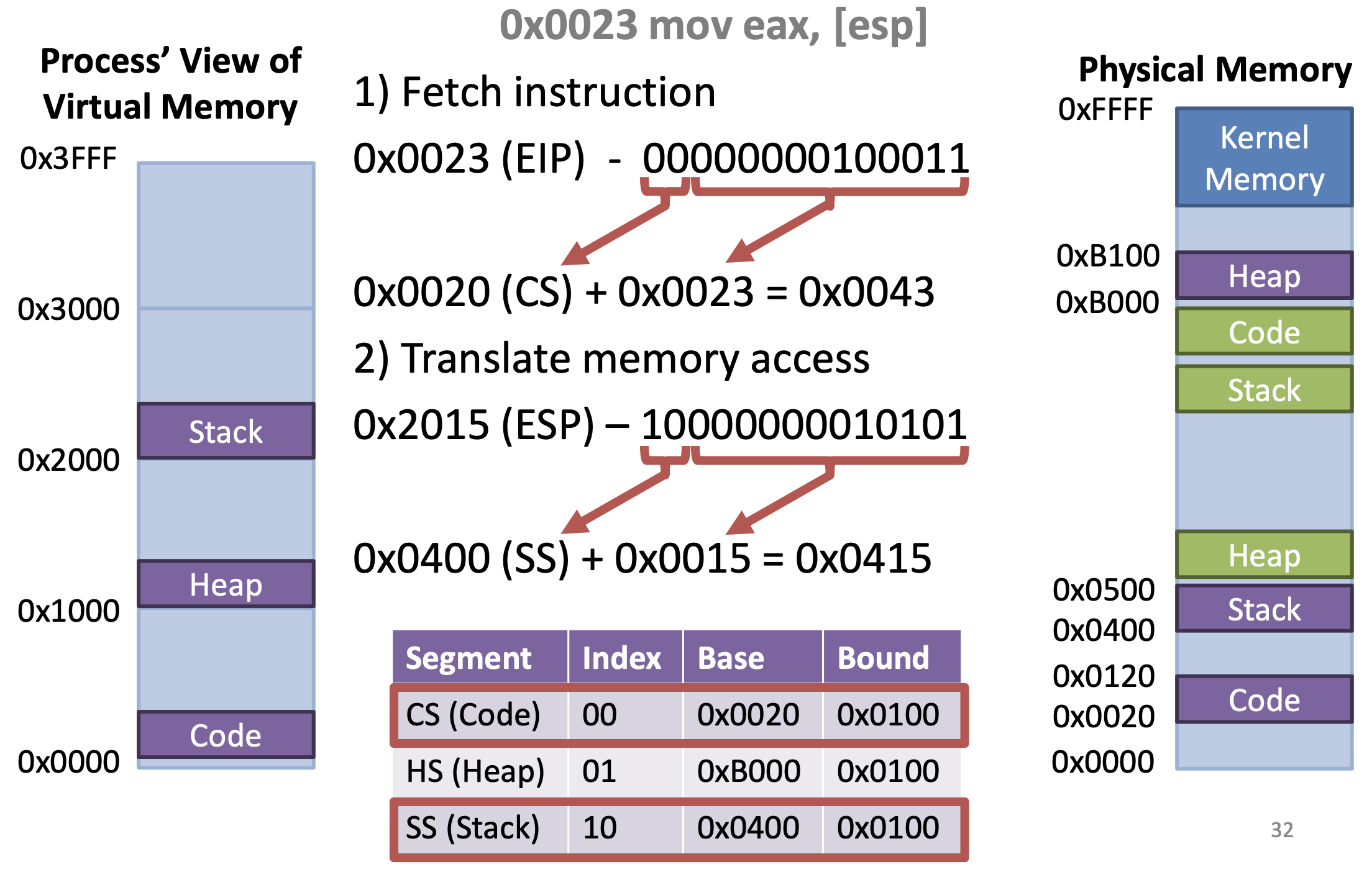

Example

Segment permissions

• Permissions on segments (r, w, x)

x86 segments

• segment : offset notation
  mov [ds:eax], 42 // move 42 to the data segment, offset by the value in eax

Segmentaiton Fault

• Try to read/write memory outside a segment
• Example

char buf[5];
strcpy(buf, "Hello World");
return 0; // seg fault when return

• When we call func, we save return address
  Hello World can overwrite the return address
  So that can cause segmentation fault

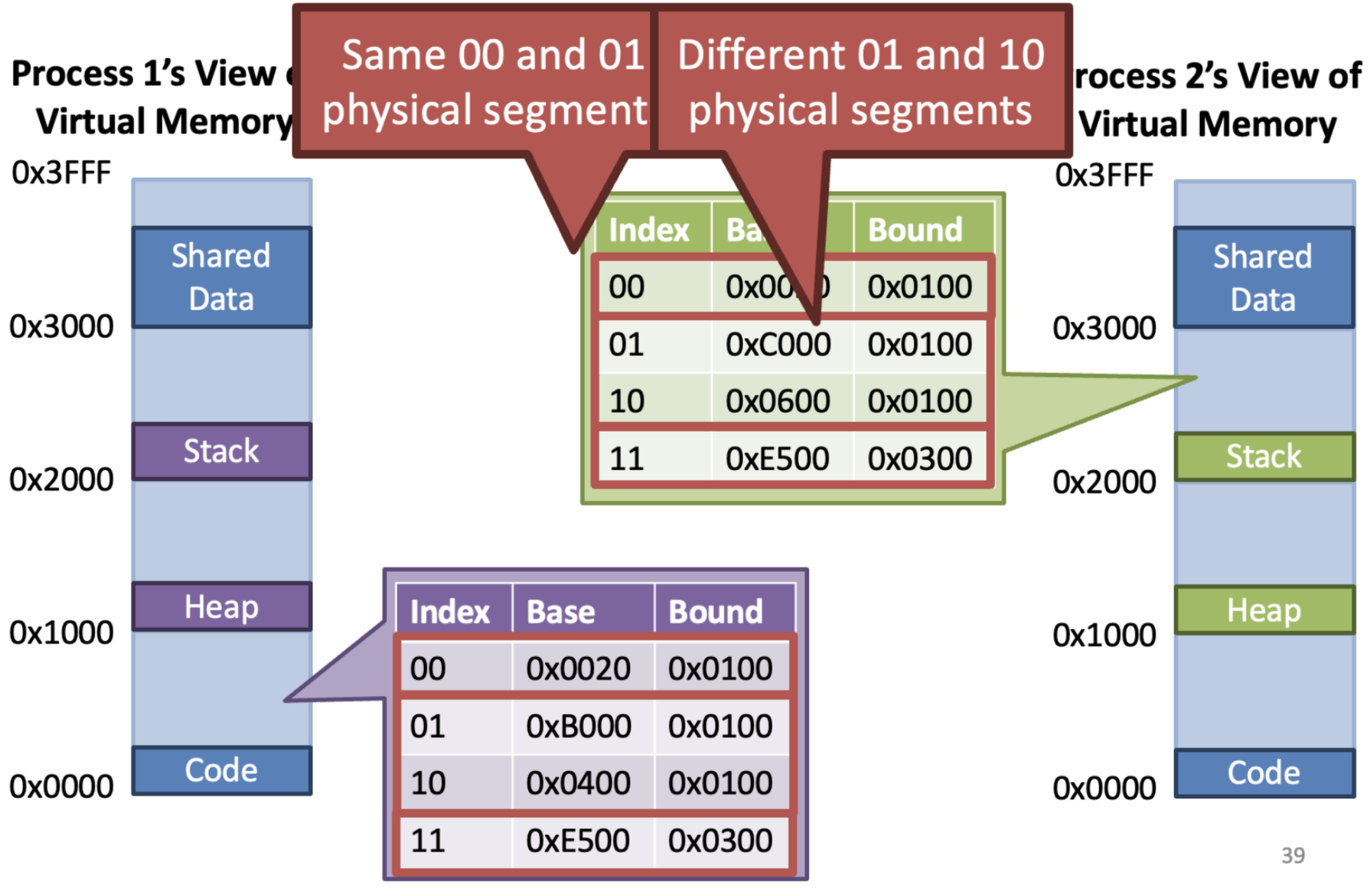

Sharing memory

• If the code and shared data are the same,
  can share by setting base and bound same

Advantages

• All the advantages of base and bound
• Better support for sparse address spaces
  • Segment sizes are variable
    -> Prevents internal fragmentation
• Support shared memory
• Per segment permissions

---

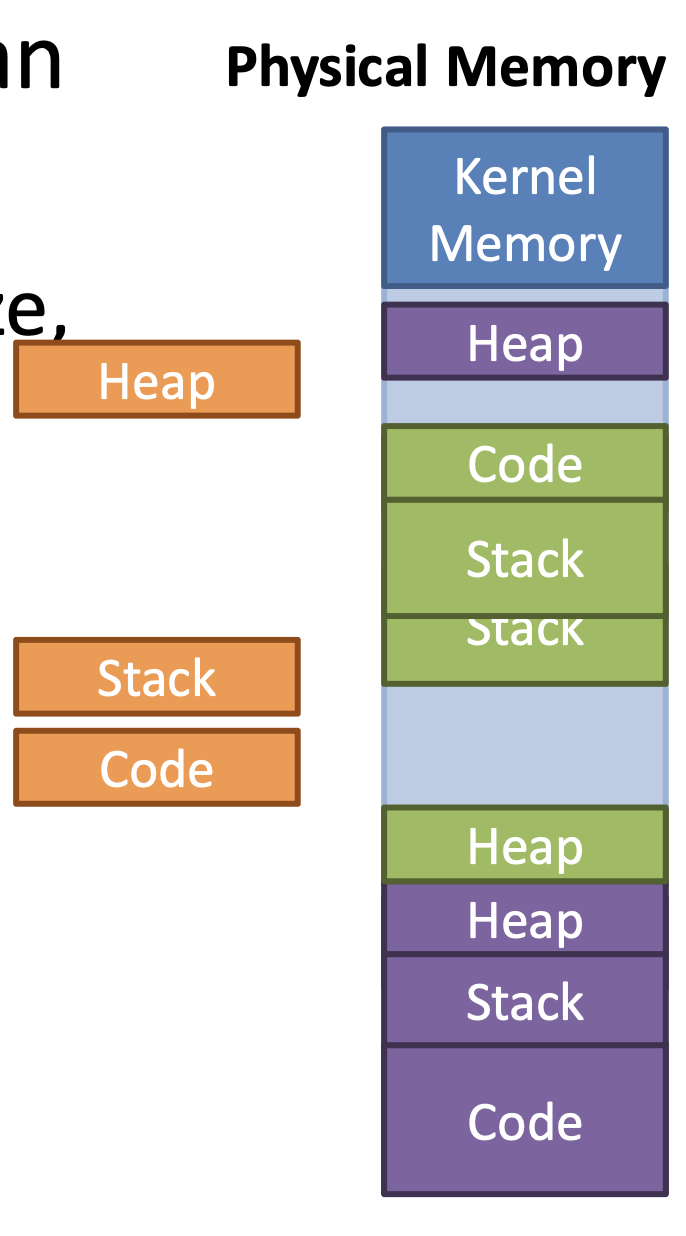

External Fragmentation

Variable size segments can lead to external fragmentation

• Even there is enough free memory to start a new process,
  memory is fragmented
• Compaction can fix the problem, but it is expensive

---

Paging

Segments lead to external fragmentation

Idea

• Physical memory is divided into frames of fixed sizes

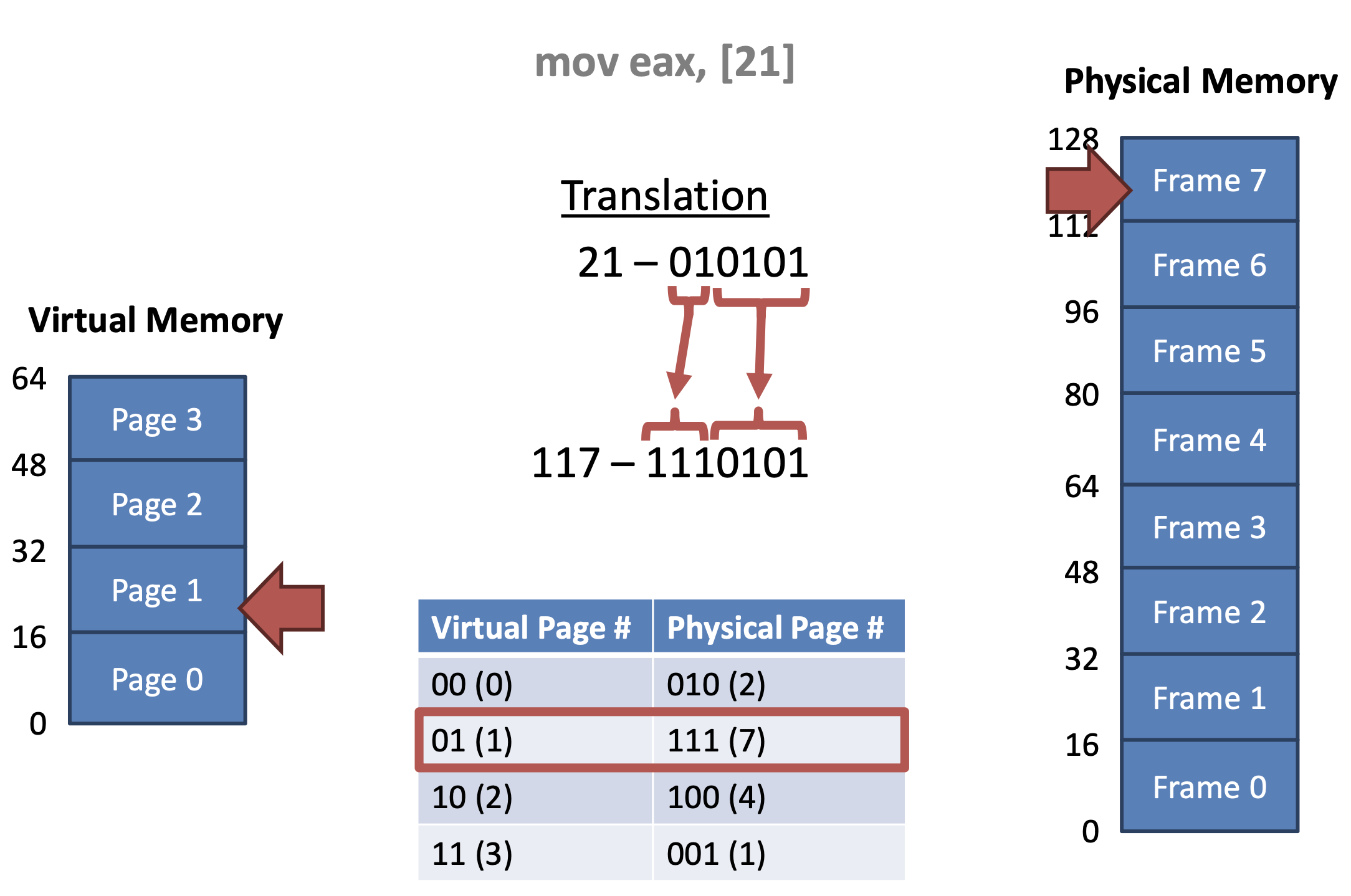

Example 1)

• 64-byte virtual address space
• 16 byte per page


Example 2)

• 32-bit address space & page size = 4KB
• How many pages?
  • $2^{32}/2^{12} = 2^{20} = 1M$
• How many bits to select the physical page?
  • 20 bits
• Page table entry is 4 bytes large
  • Each process needs 4MB of page table
  • 100 processes = 400MB of page tables

Problems

• Majority of page table is empty = The table is sparse

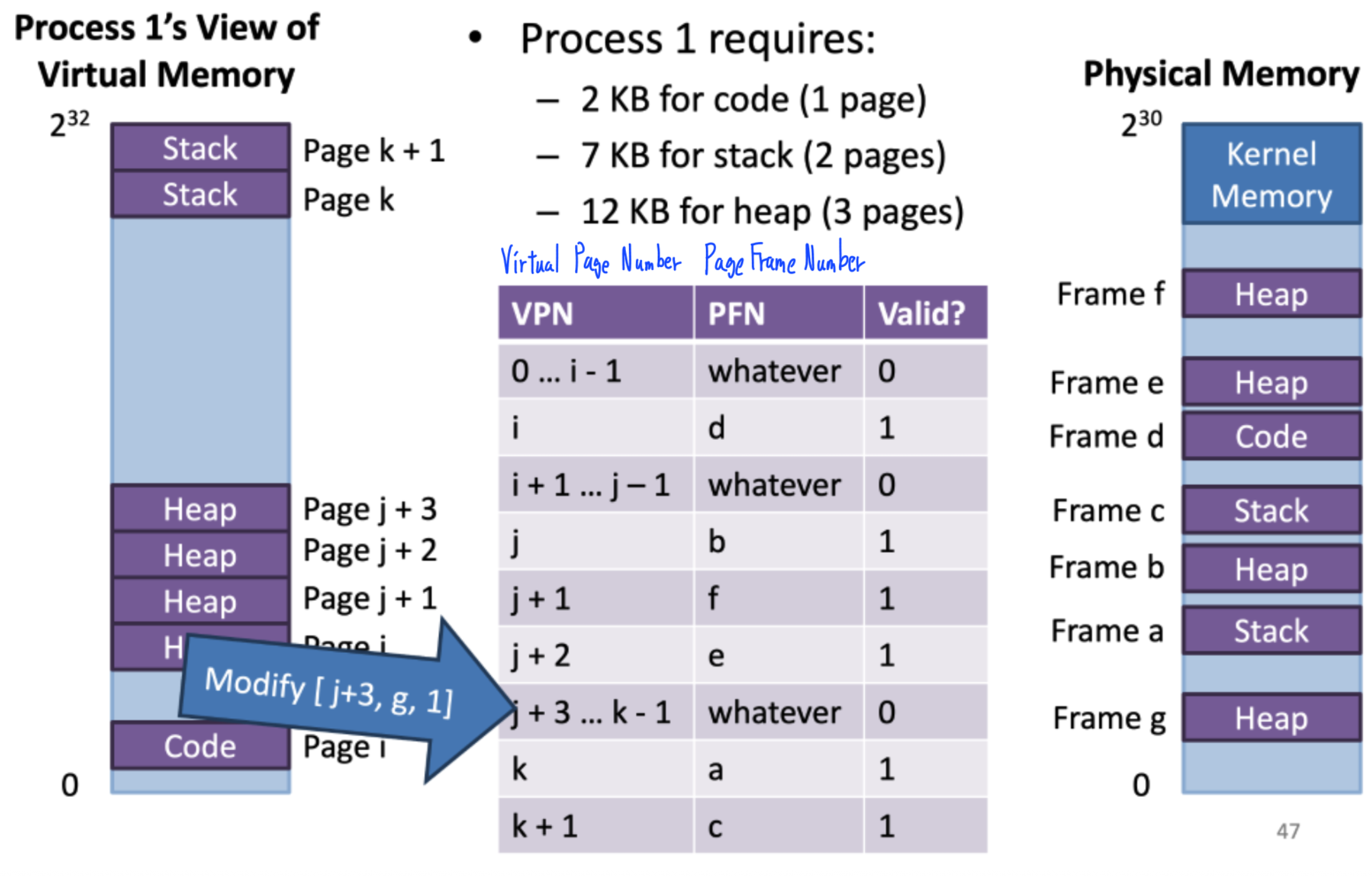

Page table Implementation

• OS creates the page table for each process
  • Page tables are stored in kernel memory
  • OS stores a pointer to the page table in register in the CPU (CR3 register in x86)
  • On context switch, OS swaps the pointer
• CPU translates virtual address into physical address

x86 Page Table Entry

• PTE are 4 bytes
• W - writable bit - writable or read-only?
• U/S - user/supervisor bit - can user processes access?
• Bits related to swapping
  • P - present bit - is in physical memory?
  • A - accessed bit - has read recently?
  • D - dirty bit - has written recently?

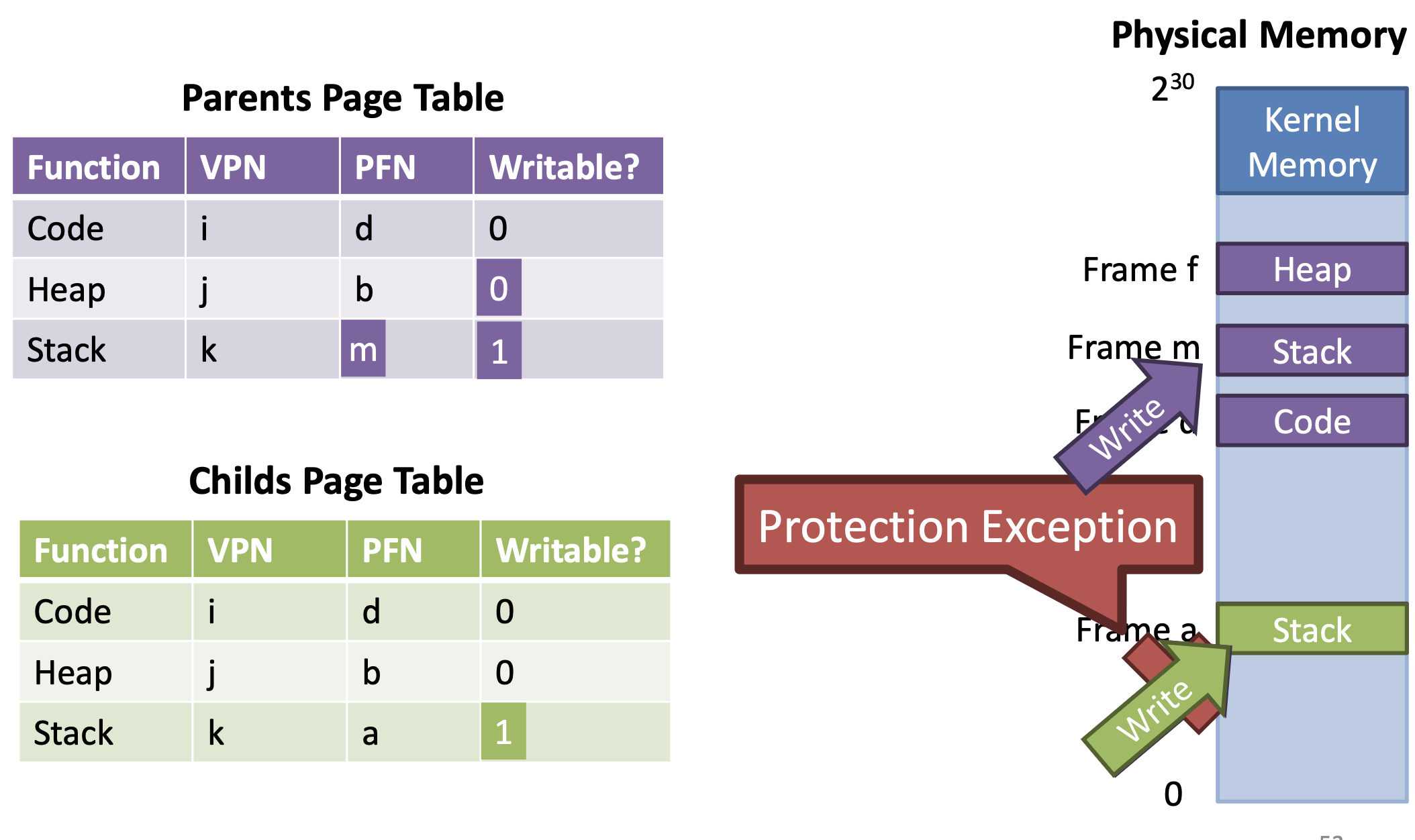

Copy on Write

• Recall fork() is too slow
• Rather than copy all of parents,
  create a new page table for the child that maps to all of the parents
  • Mark all pages as read-only
  • If parent or child writes a page, exception will be triggered
  • OS catches the exception, makes a copy of the target page, then restarts the write operation
• All unmodified data is shared

• Mark all pages read-only
• Child try to write on stack,
  Exception occurs and OS makes a copy of the target page,
  Parent page table is modified into other region that copied original stack

Advantages

• All the advantages of segmentation
• Better for sparse address spaces
  • Each page is small
  • Limits internal fragmentation
• All pages are the same size
  • Prevents external fragmentation

Problems

• Page tables are huge
  • and the majority of the PTE are empty or invalid

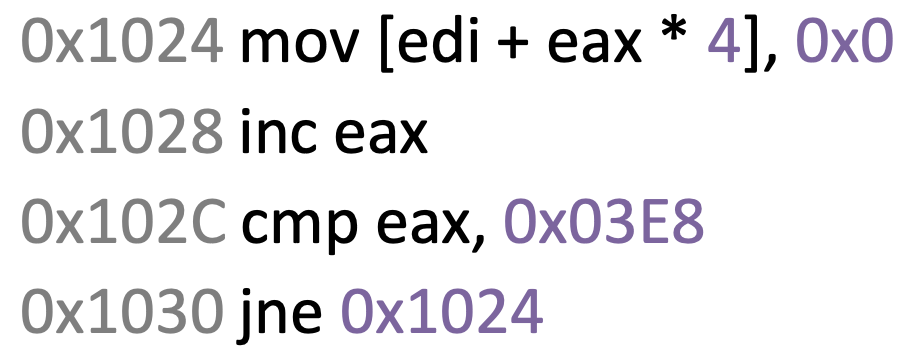

• Page tables are slow

  • 4 instructions are read from memory
  • 1 memory access writes in memory
  • 5 page table lookup
    • Each memory access must be translated
    • And the page tables are in memory
