Lec 5-Concurrency (3)

Non-Deadlock Bugs

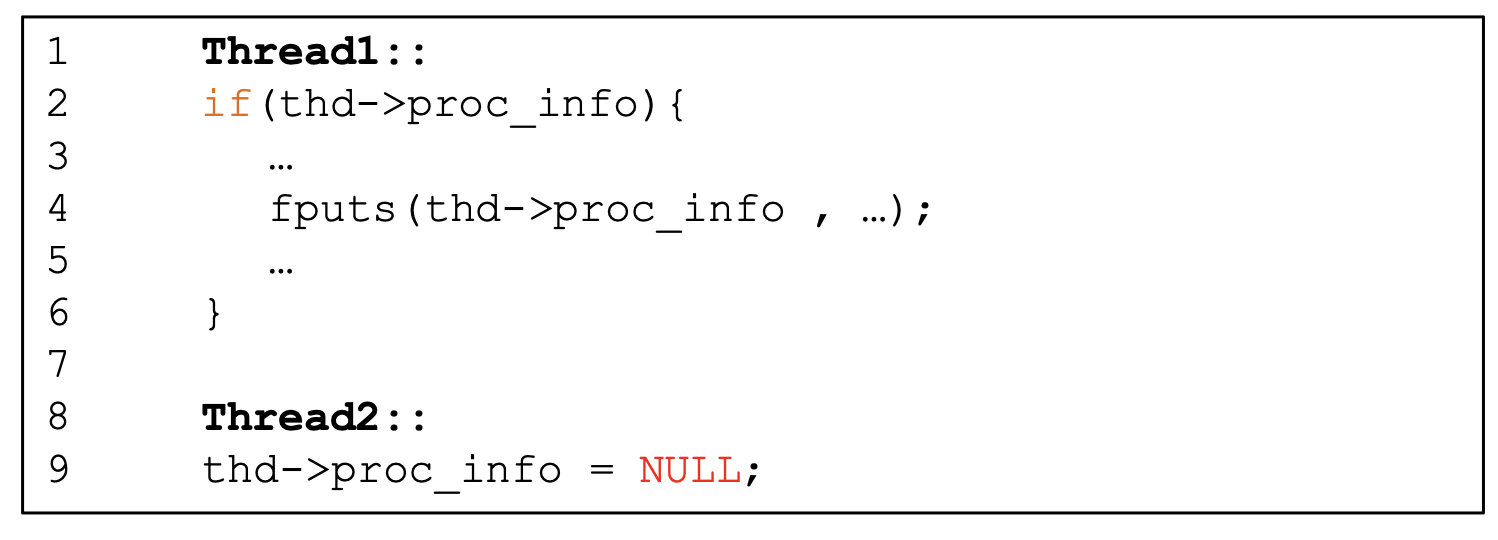

Atomicity violation

• Desired serializability among multiple memory accesses is violated
  • Two different threads access the field proc_info

• Solution
  • Simply add locks

Order violation

• Desired order between two memory accesses is flipped
  • A should be executed before B, but the order is not enforced during execution
  • Thread2 assumes that the variable mThread has already been intialized

• Solution
  • Enforce ordering using condition variables

---

Deadlock

Deadlock

Conditions for deadlock

1. Mutual exclusion
   • Only one process can hold resources
2. Hold and wait
   • A process holding a resource can block, waiting for another resource
3. No preemption
   • One process cannot force another to give up a resource
4. Circular wait
   • Given conditions 1~3, if there is a circular wait, then there is potential for deadlock
5. Buggy programming
   • Programmer forgets to release resource

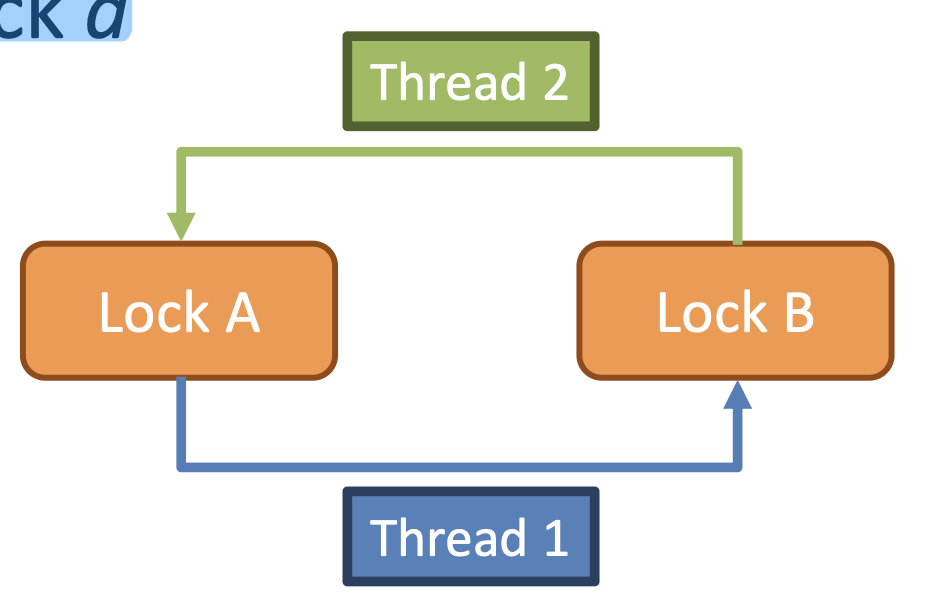

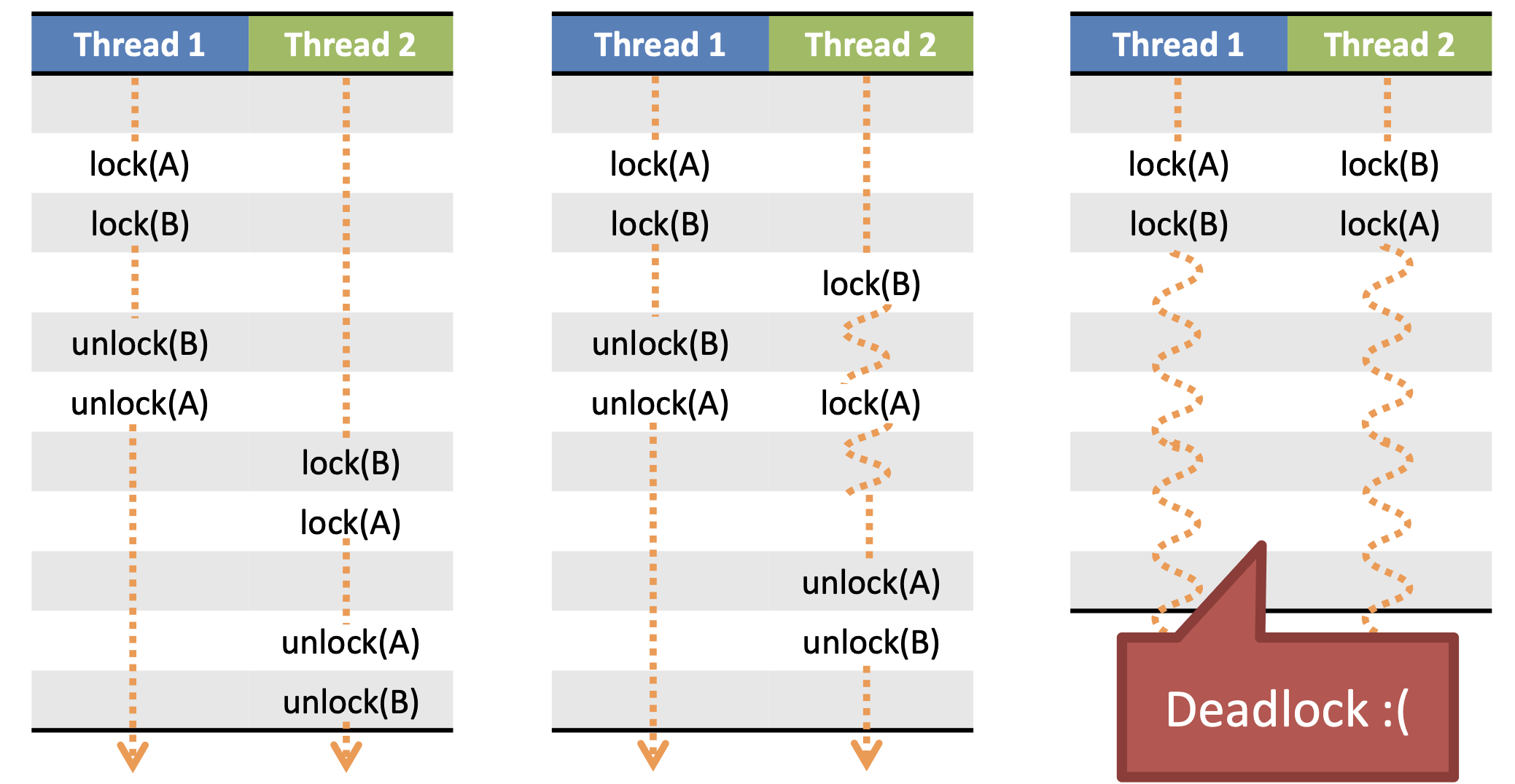

Circular Waiting

• Thread 1 holds lock a, waits on lock b
• Thread 2 holds lock b, waits on lock a


---

Methods for Handling Deadlocks

• Ensure that the system will never enter a deadlock state
  • Deadlock prevention
  • Deadlock avoidance
• Allow the system to enter a deadlock state and then recover
• Ignore the problem and pretend that deadlocks never occur
  • Handling the deadlocks has large overhead
    so that ignore the problem

---

Deadlock Prevention

Idea: If one condition is not met, deadlock does not occur

• Mutual Exclusion
  • Not required for sharable resources (read-only files)
• Hold and Wait
  • Must guarantee that whenever a process requests a resource,
    it does not hold any other resources
  • Require process to request and be allocated all its resources before it begins execution,
    or allow process to request only when the process has none allocated to it
    • Low resource utilization, starvation possible
    • Do not request during execution
      Allocate all resources before execution
• No Preemption
  • If a process that is holding some resources requests resources that can not be immediately allocated,
    then all resources currently being held are released
  • Preempted resources are added to the list of resources for which the process is waiting
  • Process will be restarted only when it can regain its old resources
• Circular Wait

---

Lock Ranking

To prevent circular wait

1. Locate all locks in the program
2. Number the locks in the order that they should be acquired
3. Add assertions

• No automated way of doing
  • Requires careful programming by the developers

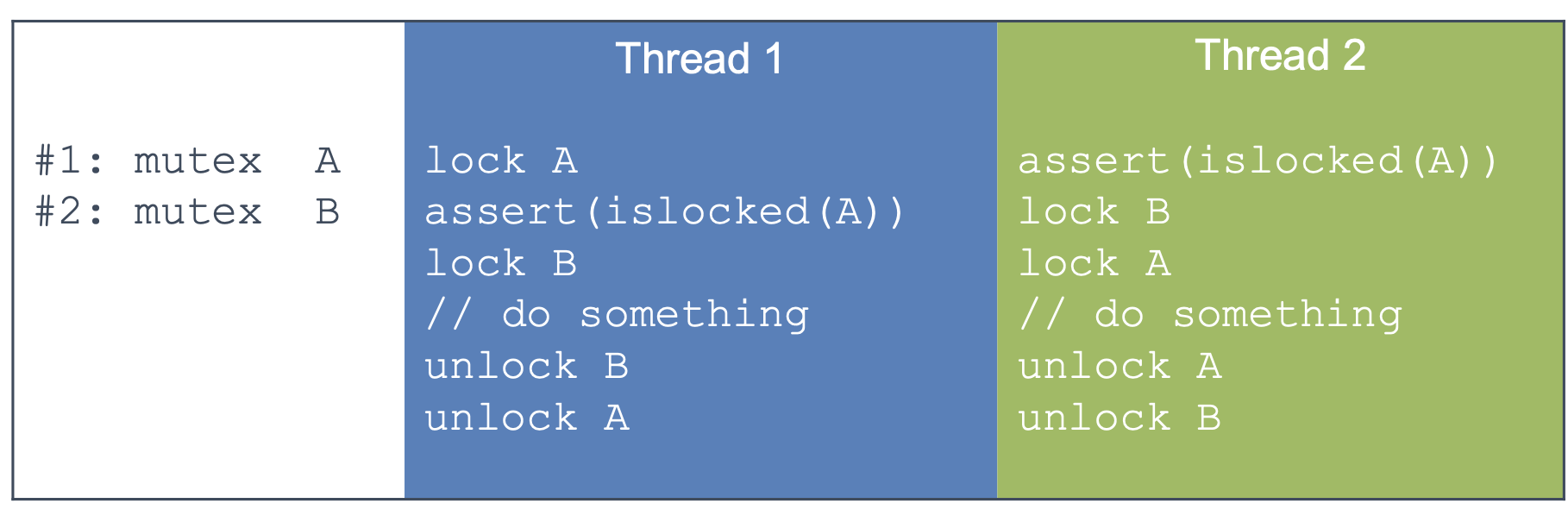

Example

• Rank the locks
• Enforce rank ordering
  • Before lock B, check islocked(A)
• Thread 2 assertion will fail

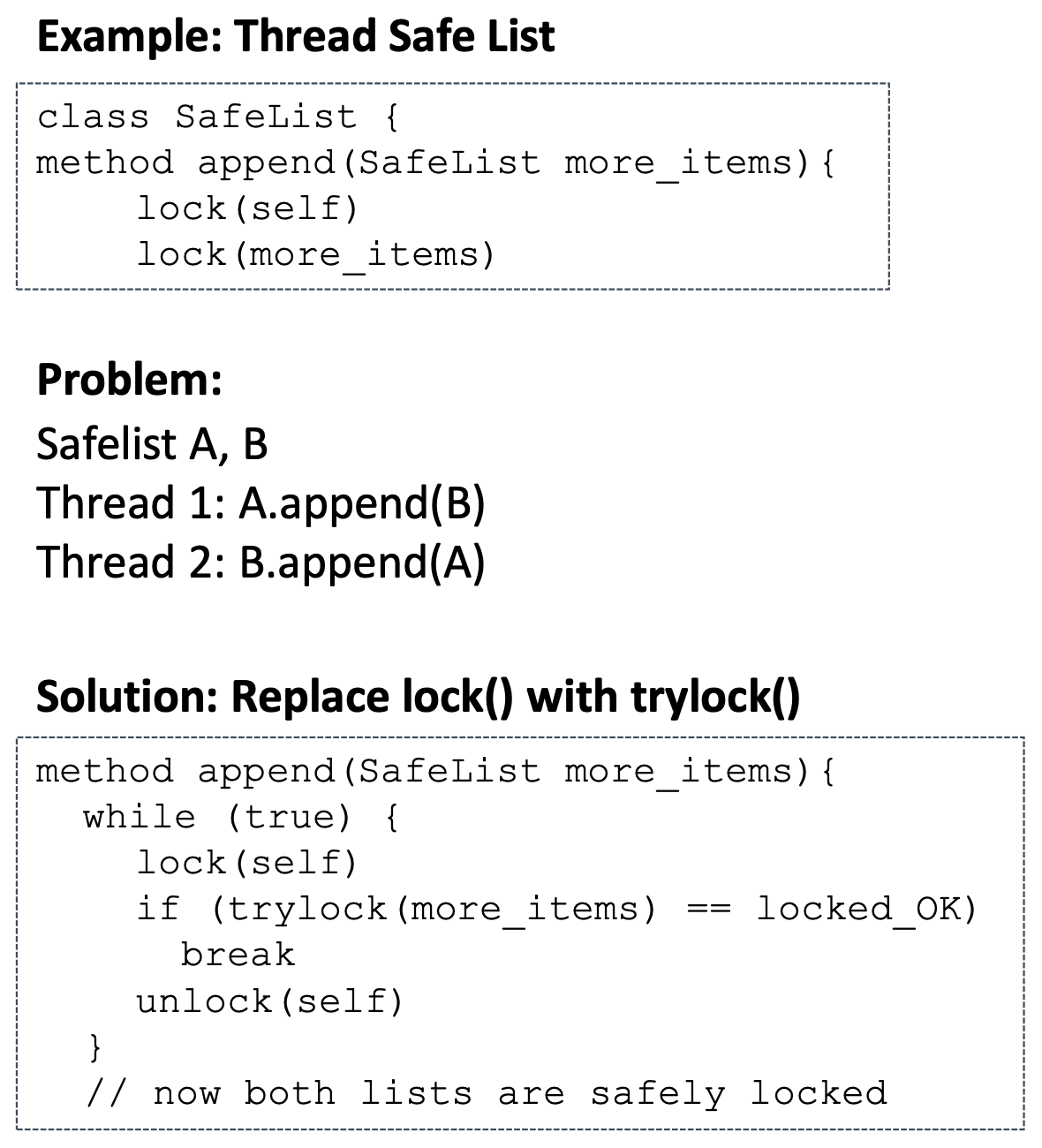

When Ranking doesn't work

• In some cases, impossible to rank order locks
• Eliminate no preemption condition using trylock()
  • if trylock() succeed, break the while loop
  • if trylock() fail, unlock and loop the while


---

Deadlock Avoidance

Assumption

• Each process declare the maximum number of resources
• Examine the resource allocation state to ensure that there can never be a circular-wait condition
• Resource aloocation state is defined by the number of available and allocated resources, and the maximum demands of the processes

Safe State

• System is in safe state
  if there exists a sequence of all the process in the systems
  that can be excuted without blocking
• Behavior
  • If $P_i$'s resource needs are not immediately available, $P_i$ wait
  • When other process is finished, $P_i$ can obtain needed resources, execute
  • When $P_i$ terminates, $P_{i+1}$ can obatin its needed resources, execute
• Basic
  • If a system is in safe state => no deadlocks
  • If a system is in unsafe state => possibility of deadlock
  • Avoidance => ensure that a system will never enter an unsafe state

---

Avoidance Algorithms

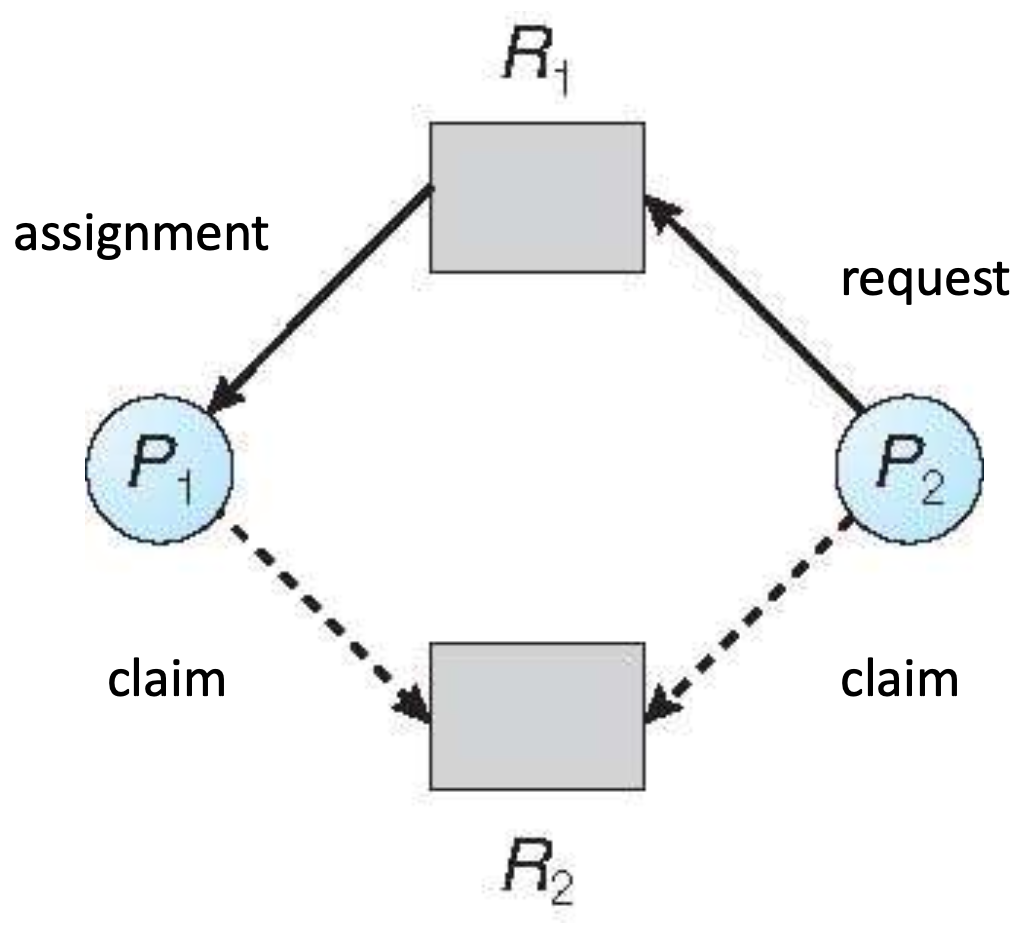

Resource allocation graph

Single instance of a resource

• Claim edge $P_i \rightarrow R_j$: process $P_i$ may request resource $R_j$
• Claim edge converts to request edge when a process requests a resource
• Request edge converts to assignment edge when the resource is allocated
• When a resource is released, assignment edge reconverts to a claim edge

Safe state

1. $P_1$ gets $R_2$, execute, terminate
2. $P_2$ gets $R_1, R_2$, execute, terminate

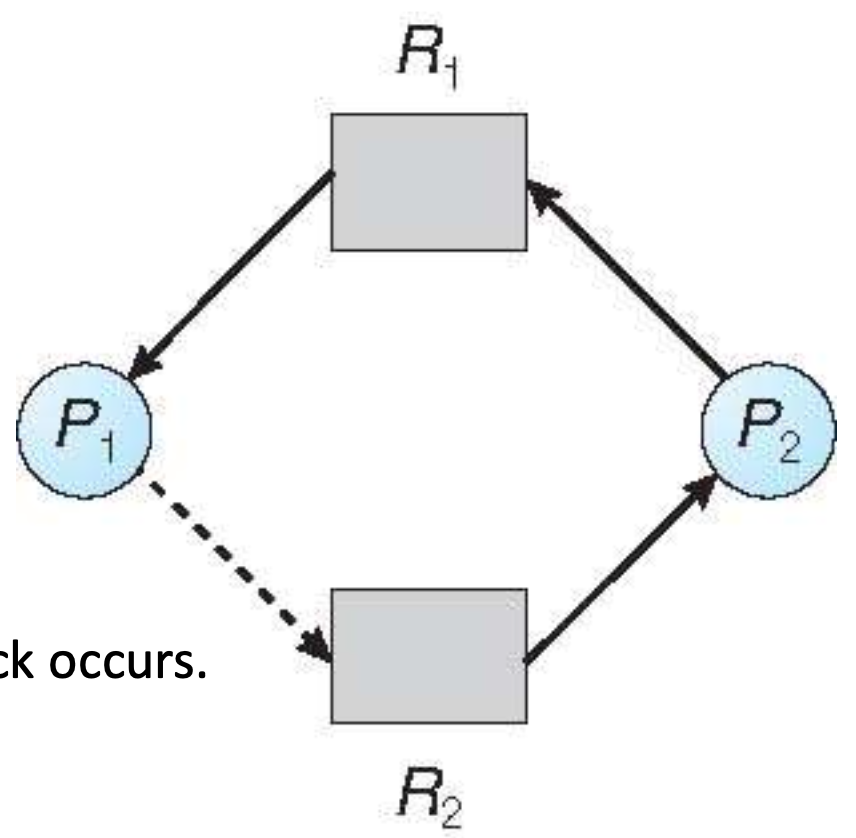

Unsafe state

• In this case, avoidance indicates that make $P_1$ can not request $R_2$
• If requested, deadlock occurs


---

Banker's algorithm

Multiple instances of a resource

• Each process must a priori claim maximum use
• When a process gets all its resources, it must return them in a finite amount of time

Data structures for the Banker's algorithm

• Available
  • Vector of length $m$
  • If available $[j]=k$, there are $k$ instances of resource $R_j$ available
• Max
  • $n \times m$ matrix,
  • $Max [i,j]=k$, $P_i$ may request at most $k$ instances of resource $R_j$
• Allocation
  • $n \times m$ matrix,
  • $Allocation [i,j]=k$, $P_i$ is currently allocated $k$ instances of resource $R_j$
• Need
  • $n \times m$ matrix,
  • $Need [i,j]=k$, $P_i$ may need $k$ more instances of resource $R_j$ to complete task
  • Need = Max - Allocation

Behavior

• First, allocate resources and check whether it's safe state or unsafe state
• If safe => allocate resources
• If unsafe => old resource allocation state is restored

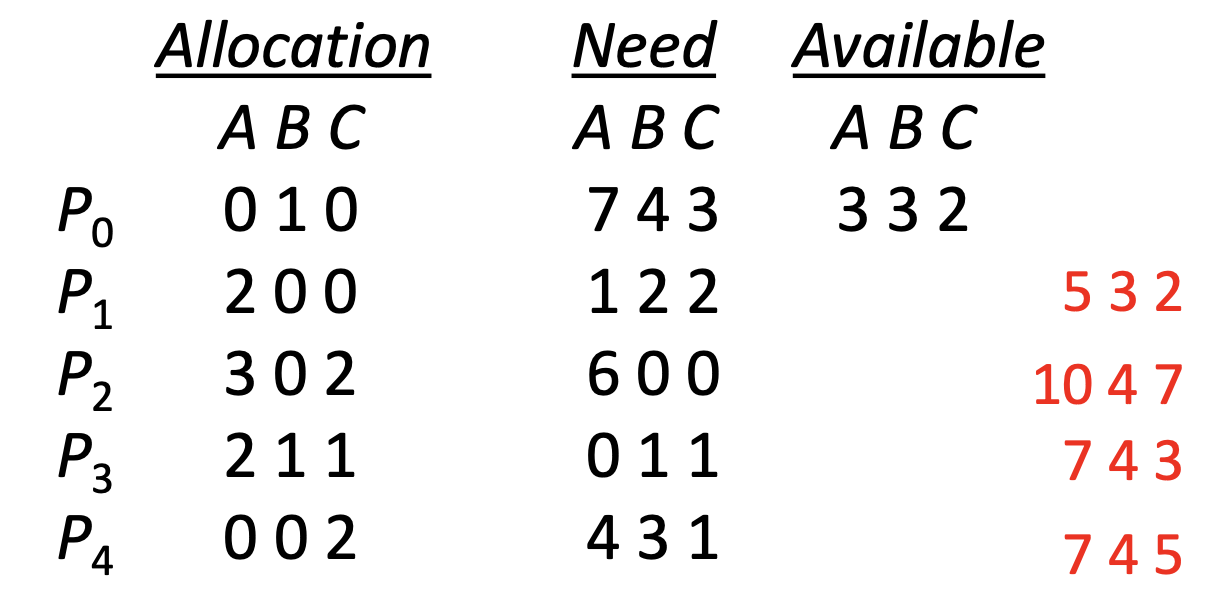

Example 1)

• System is in a safe state since the sequence $<P_1, P_3, P_4, P_2, P_0>$ satisfies safety criteria

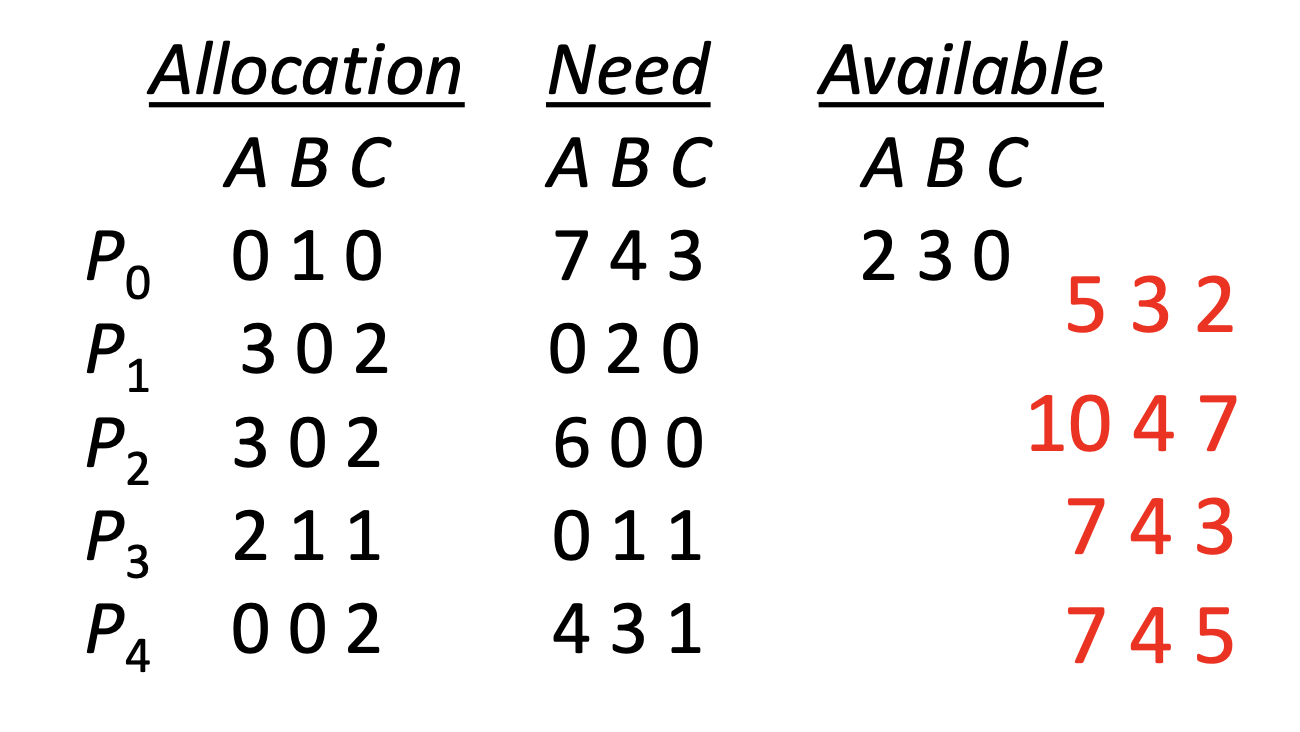

Example 2)

• $P_1$ request $(1,0,2)$
• $(1,0,2) \leq (3,3,2)$ => available
• the sequence $<P_1, P_3, P_4, P_2, P_0>$ satisfies safety criteria


---

Detection Algorithm

Allow system to enter deadlock state

Detection algorithm

• Resouce allocation graph
• Banker's algorithm

Recovery scheme

• Avoidance checks every requests -> overhead $\uparrow$
• Allow requests -> detect -> overhead $\downarrow$

---

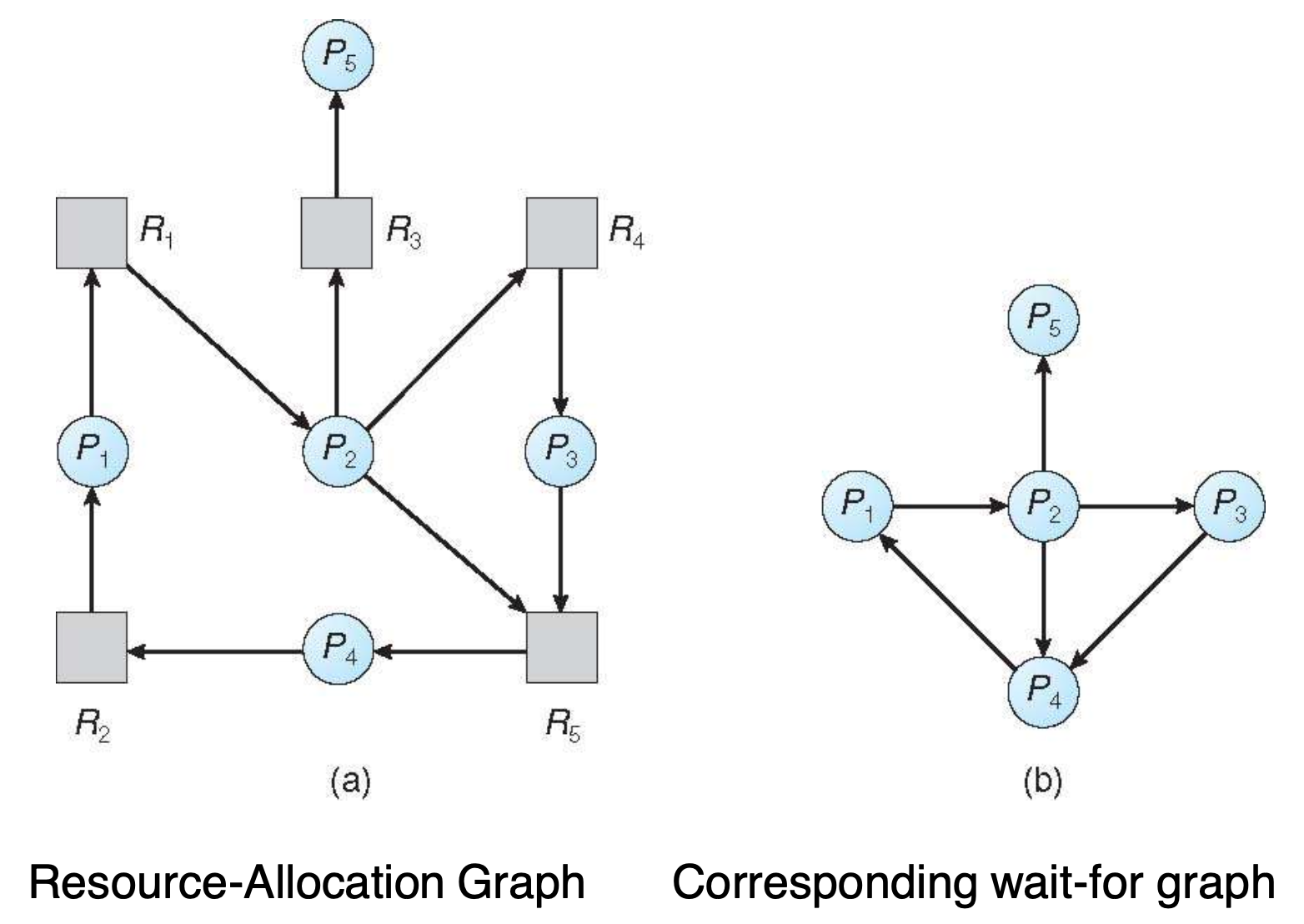

Resource allocation graph and wait-for graph

Single instance of a resource

• Nodes are processes
• $P_i \rightarrow P_j$ if $P_i$ is waiting for $P_j$
• Periodically invoke an algorithm that searches for a cycle in a graph
• If there is a cycle, there exists a deadlock
• $O(n^2)$ operations


---

Recovery from deadlock: Process termination

• Abort all deadlocked processes
• Abort one process at a time

Selecting a victim - minimize cost

Rollback - return to some safe state, restart process for that state

Starvation problem

• Same process may always be picked as victim, include number of rollback in cost factor
