Naver Project(XOR problem)

Jacob Kim·2024년 1월 27일
0

Naver Project Week 1

목록 보기
11/28
import tensorflow as tf
from tensorflow.keras import layers, Sequential
import numpy as np
import matplotlib.pyplot as plt

tf.__version__
# 2.15.0

XOR Problem

  • XOR 로 표시되는 정보를 구분해보자
x_data = [[0., 0.],
          [0., 1.],
          [1., 0.],
          [1., 1.]]
y_data = [[0.],
          [1.],
          [1.],
          [0.]]

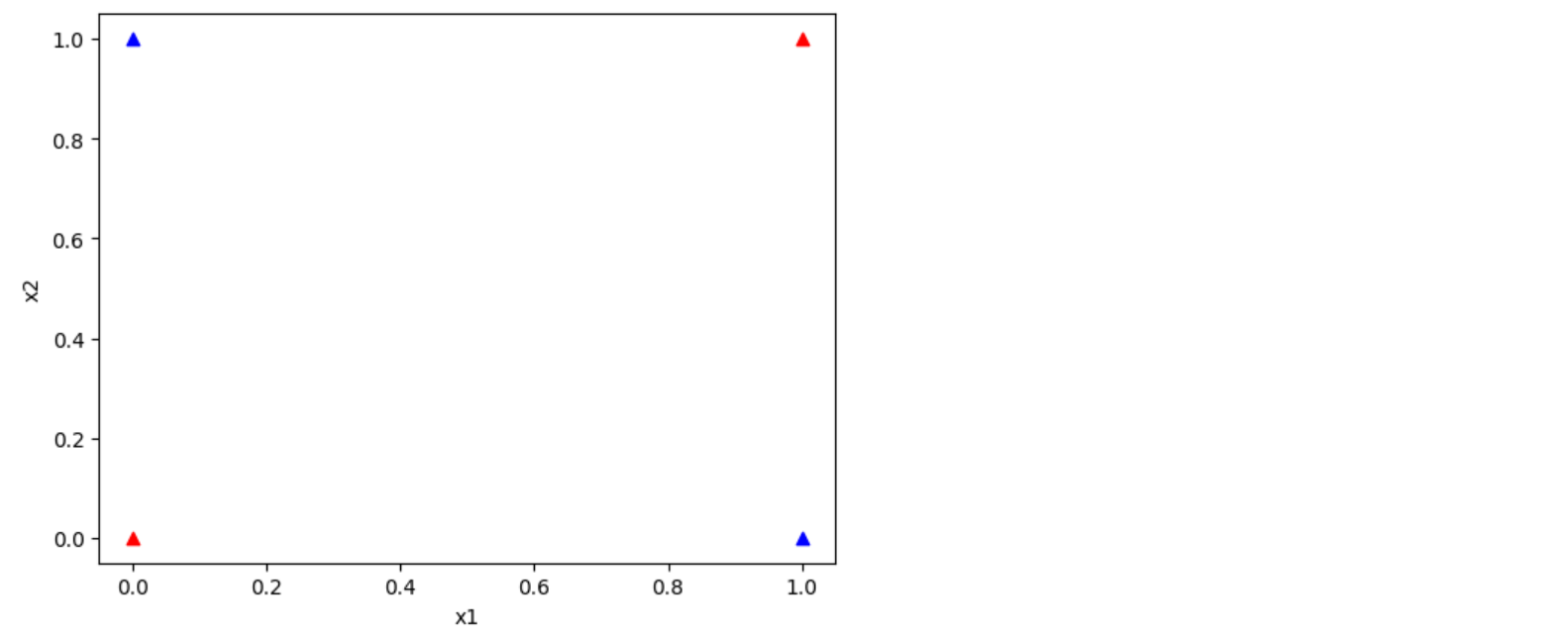

plt.scatter(x_data[0][0],x_data[0][1], c='red' , marker='^')
plt.scatter(x_data[3][0],x_data[3][1], c='red' , marker='^')
plt.scatter(x_data[1][0],x_data[1][1], c='blue' , marker='^')
plt.scatter(x_data[2][0],x_data[2][1], c='blue' , marker='^')

plt.xlabel("x1")
plt.ylabel("x2")
plt.show()

Dataset 준비

dataset = tf.data.Dataset.from_tensor_slices((x_data, y_data)).batch(len(x_data))

Multi-layer perceptron

W1 = tf.Variable(tf.random.normal([2, 1]), name='weight1')
b1 = tf.Variable(tf.random.normal([1]), name='bias1')

W2 = tf.Variable(tf.random.normal([2, 1]), name='weight2')
b2 = tf.Variable(tf.random.normal([1]), name='bias2')

W3 = tf.Variable(tf.random.normal([2, 1]), name='weight3')
b3 = tf.Variable(tf.random.normal([1]), name='bias3')

Layers 구성

def neural_net(features):
    layer1 = tf.sigmoid(tf.matmul(features, W1) + b1)
    layer2 = tf.sigmoid(tf.matmul(features, W2) + b2)
    layer3 = tf.concat([layer1, layer2],-1)
    layer3 = tf.reshape(layer3, shape = [-1,2])
    hypothesis = tf.sigmoid(tf.matmul(layer3, W3) + b3)

    return hypothesis

Loss Function

def loss_fn(hypothesis, labels):
    cost = -tf.reduce_mean(labels * tf.math.log(hypothesis) + (1 - labels) * tf.math.log(1 - hypothesis))
    return cost

optimizer = tf.compat.v1.train.GradientDescentOptimizer(learning_rate=0.1)
def grad(hypothesis, labels):
    with tf.GradientTape() as tape:
        loss_value = loss_fn(neural_net(features),labels)
    return tape.gradient(loss_value, [W1, W2, W3, b1, b2, b3])

Training

EPOCHS = 10000

for step in range(EPOCHS+1):
    for features, labels  in dataset:
        grads = grad(neural_net(features), labels)
        optimizer.apply_gradients(grads_and_vars=zip(grads,[W1, W2, W3, b1, b2, b3]))
        if step % 1000 == 0:
            print("Iter: {}, Loss: {:.4f}".format(step, loss_fn(neural_net(features),labels)))
#Iter: 0, Loss: 0.7020
#Iter: 1000, Loss: 0.6819
#Iter: 2000, Loss: 0.6144
#Iter: 3000, Loss: 0.5054
#Iter: 4000, Loss: 0.3391
#Iter: 5000, Loss: 0.1652
#Iter: 6000, Loss: 0.0962
#Iter: 7000, Loss: 0.0656
#Iter: 8000, Loss: 0.0492
#Iter: 9000, Loss: 0.0392
#Iter: 10000, Loss: 0.0324
def accuracy_fn(hypothesis, labels):
    predicted = tf.cast(hypothesis > 0.5, dtype=tf.float32)
    accuracy = tf.reduce_mean(tf.cast(tf.equal(predicted, labels), dtype=tf.float32))
    return accuracy
test_acc = accuracy_fn(neural_net(x_data),y_data)
print("Testset Accuracy: {:.4f}".format(test_acc))
# Testset Accuracy: 1.0000

with Tensorflow

model = Sequential([
    layers.Dense(2, activation='sigmoid'),
    layers.Dense(1, activation='sigmoid')
])
def loss_fn(model, labels):
    cost = -tf.reduce_mean(labels * tf.math.log(model) + (1 - labels) * tf.math.log(1 - model))
    return cost

optimizer = tf.compat.v1.train.GradientDescentOptimizer(learning_rate=0.1)
def grad(hypothesis, labels):
    with tf.GradientTape() as tape:
        loss_value = loss_fn(model(features),labels)
    return tape.gradient(loss_value, model.trainable_variables)
EPOCHS = 10000

for step in range(EPOCHS+1):
   for features, labels  in dataset:
       grads = grad(model(features), labels)
       optimizer.apply_gradients(grads_and_vars=zip(grads, model.trainable_variables))
       if step % 1000 == 0:
           print("Iter: {}, Loss: {:.4f}".format(step, loss_fn(model(features),labels)))
#Iter: 0, Loss: 0.6975
#Iter: 1000, Loss: 0.6584
#Iter: 2000, Loss: 0.5106
#Iter: 3000, Loss: 0.2203
#Iter: 4000, Loss: 0.0864
#Iter: 5000, Loss: 0.0493
#Iter: 6000, Loss: 0.0338
#Iter: 7000, Loss: 0.0255
#Iter: 8000, Loss: 0.0204
#Iter: 9000, Loss: 0.0169
#Iter: 10000, Loss: 0.0144

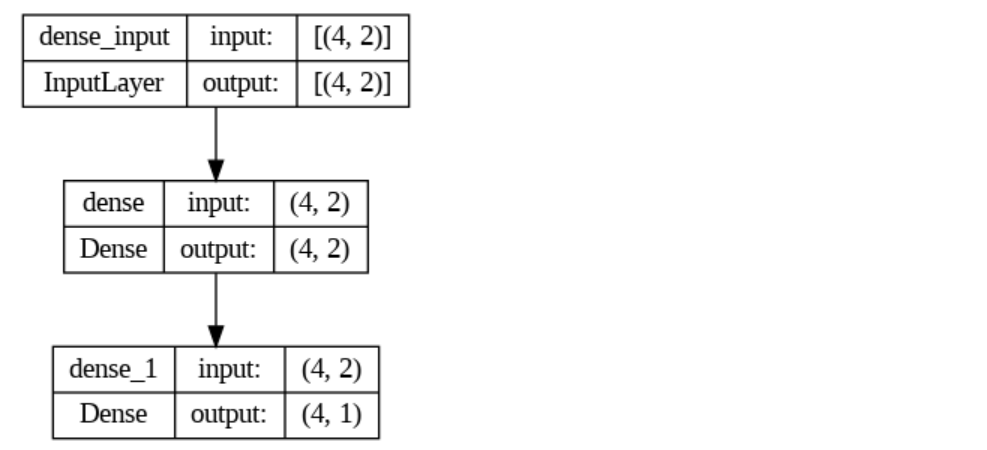

tf.keras.utils.plot_model(model, show_shapes=True)

for features, labels  in dataset:
    print("Test Data")
    print(features.numpy())
    print("Label")
    print(labels.numpy())
    pred = model(features)
    print("Pred : ")
    print(pred.numpy())
    test_acc = accuracy_fn(pred, labels)
    print("Testset Accuracy: {:.4f}".format(test_acc))
#Test Data
#[[0. 0.]
# [0. 1.]
# [1. 0.]
# [1. 1.]]
#Label
#[[0.]
# [1.]
# [1.]
# [0.]]
#Pred :
#[[0.01708079]
# [0.98694396]
# [0.986951  ]
# [0.01418572]]
#Testset Accuracy: 1.0000
